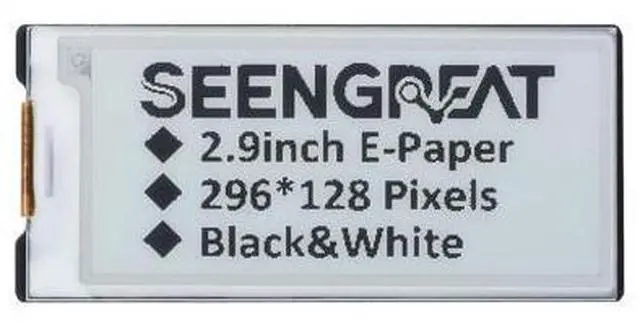

2.9 Inch E-Paper Display Monitor 296x128 Two Color E Ink Display for Raspberry Pi/Jetson Nano for Arduino Nucleo SPI Interface Epaper Screen Partial Refresh Support

Product description 2.9 Inch E-paper Display Product Features This product is a 2.9 -inch e-ink display expansion module, suitable for Raspberry Pi series motherboards, Arduino, STM32, etc. We provide C and Python version demo codes for Raspberry Pi, as well as Arduino and STM32 version demo codes. The demo codes can achieve drawing of points, lines, rectangles, circles, as well as display of English alphanumeric characters and images. 296 x 128 pixels SPI interface, requiring relatively few pins occupied Onboard level shifter chip, compatible with both 3.3V and 5V microcontroller interfaces Open-source example programs provided for Raspberry Pi, Arduino, and STM32 development boards Product

Specifications

Size 82mm (length) x 38mm (width) Screw Size M 2.5 Pixels 296 x 128 Display Color Monochrome Level Conversion Chip TXS0108EPWR Signal Interface SPI Power Supply Voltage 5V/ 3.3V Display Area 66.9 mm (H) x 29mm (W) Gray Level 4 Full Refresh Time 3S Fast Refresh Time 1.5S Partial Refresh Time 0.3S Power Consumption 9mW Standby Power Consumption 0.003 mW Easy to connect and assemble SPI interface, requiring relatively few pins occupied, easy to for connecting with other controller boards like Raspberry Pi/ Jetson Series/Arduino/STM32, etc.

Sunlight Readability This E-paper display can be read directly, unlike LCD screens that require brightness adjustment or backlight to read, can better protect the eyes and overall health. Application This 2.9 -inch monochrome E-paper displa
