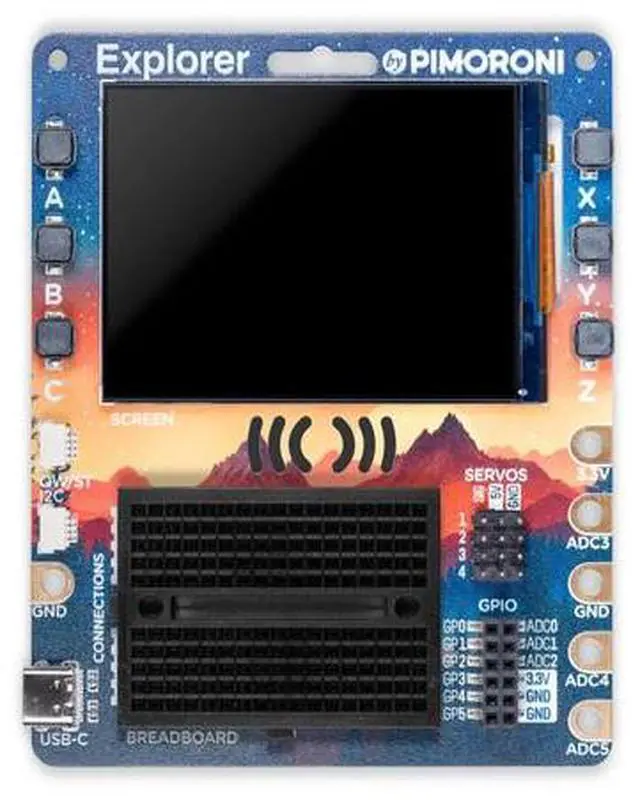

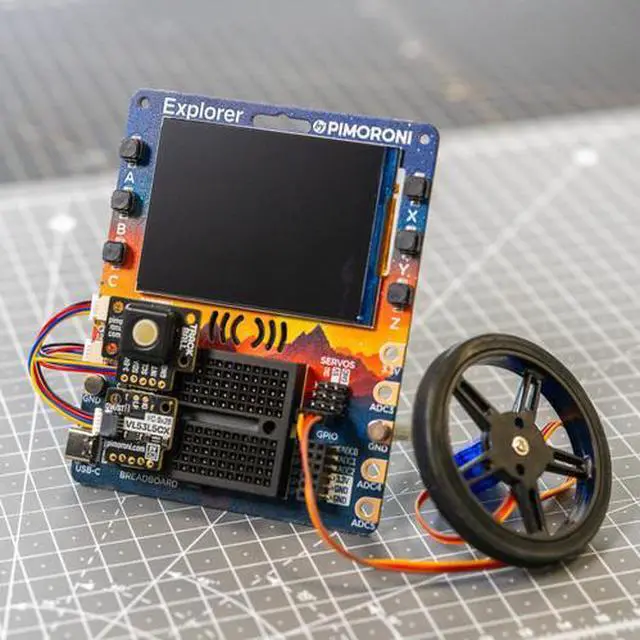

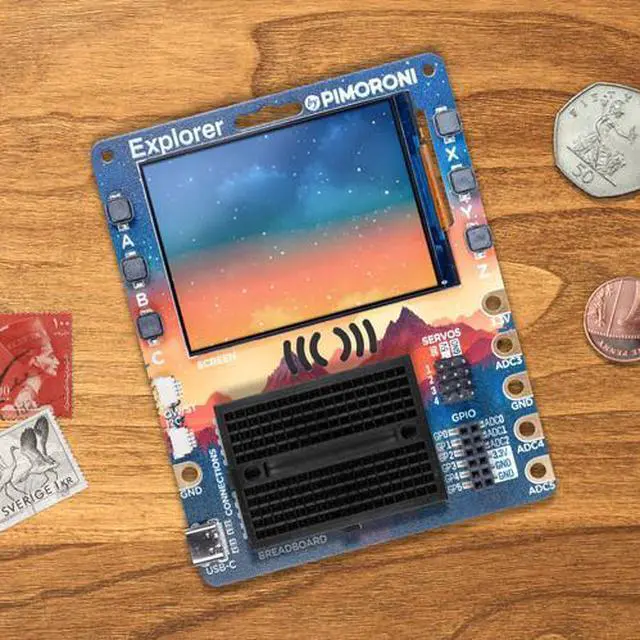

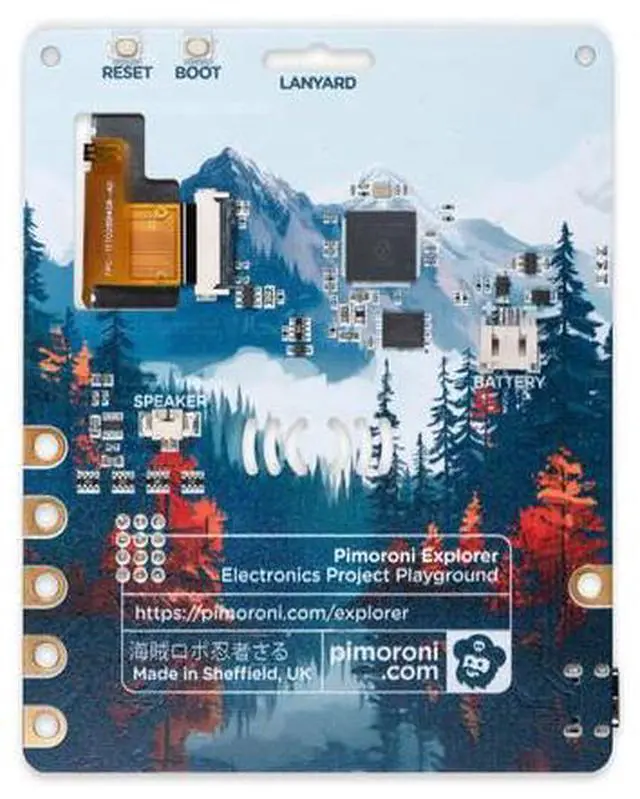

Pimoroni PIM744 Explorer, physical computing, built around the RP2350 chip. a 2.8" LCD screen,a speaker, a mini breadboard-Starter Kit

owered by RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
16MB of QSPI flash supporting XiP
2.8 IPS LCD screen (320 x 240 pixels)
Driver IC: ST7789V
Luminance: 250 cd/m2
Active area: 43.2 x 57.5mm
USB-C connector for programming and power
Mini breadboard
Piezo speaker
6x user-controllable switches
Reset and boot buttons
Easy access GPIO headers (6x GPIOs and 3x ADCs, plus 3.3V power and grounds)
6x crocodile clip terminals (3x ADCs, plus 3.3V power and grounds)
4x 3-pin servo outputs
2x Qw/ST (Qwiic/STEMMA QT) connector
2-pin JST-PH connector for adding a battery
Lanyard slot!
Includes 2x desktop stand feet
Fully-assembled (no soldering required)
Programmable with C/C++ or MicroPython
Schematic

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Discover Physical Computing with the Pimoroni Explorer Starter Kit PIM744. Unleash your creativity and dive into physical computing with the Pimoroni Explorer, a compact and powerful microcontroller board built around the Raspberry Pi RP2040 chip. Designed for beginners and makers alike, this all-in-one kit simplifies hands-on electronics, combining intuitive hardware with versatile features to bring your coding projects to life.
