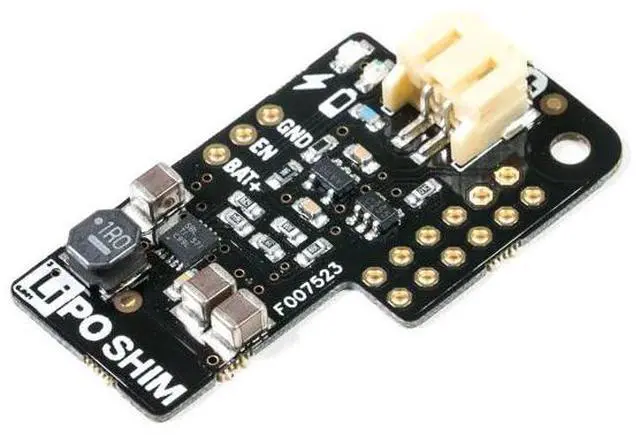

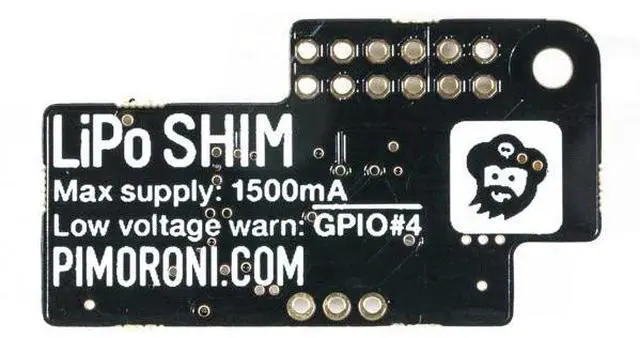

Pimoroni PIM185 Zero Lipo LiIon power supply shim 0.8mm thick PCB
- 0.8mm thick PCB
- Shaped to sit as low as possible on the Raspberry Pi
- 2-pole JST connector ideal for most LiPo/LiIon batteries
- Power and low battery LED indicators
- Supplies up to 1.5A continuous current (15uA quiescent current)
- Low battery warning at 3.4V (asserts GPIO #4 low)
- Automatic shutdown at 3.0V to protect your battery
- VBAT+, GND, and EN pins available to break out
- 2x6 0.1" female header (optional, for non permanent installation)
- Includes rubber foot to space LiPo SHIM away from your Raspberry Pi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The tiny little LiPo/LiIon power supply shim for all versions of the Raspberry Pi!
