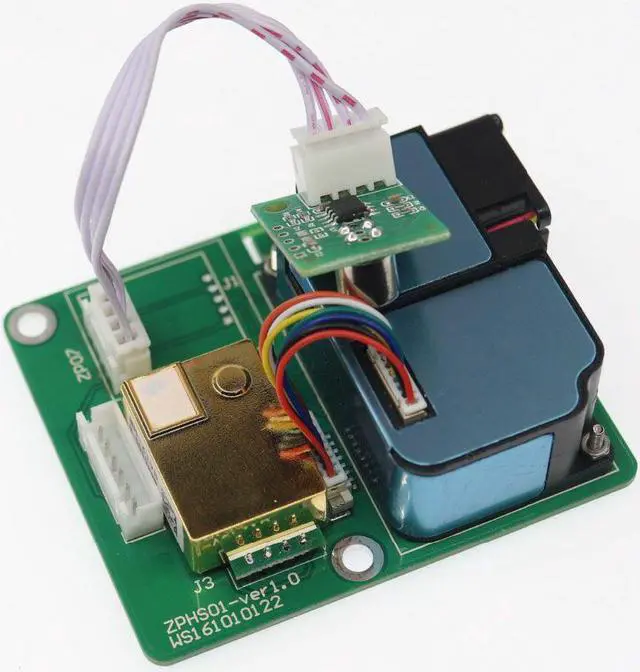

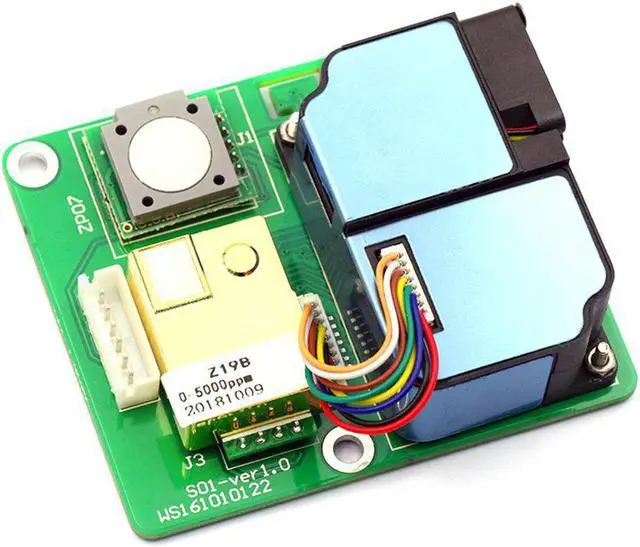

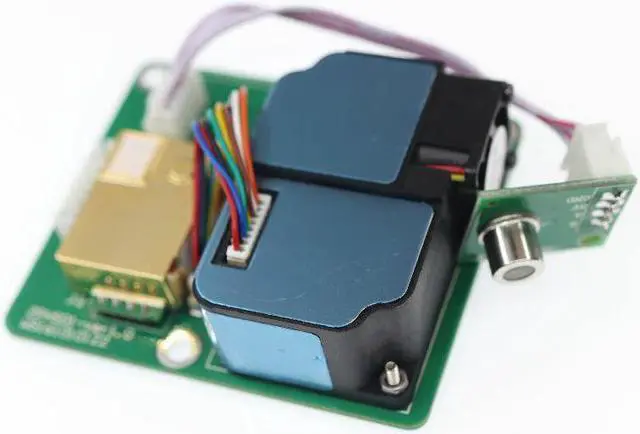

ZPHS01 All-in-one Gas Detection Module Carbon Dioxide Dust PM2.5 Sensor PM2.5 + CO2 + CH2O + Temperature + Humidity Detector

Note:

This is PM2.5 + CO2 + CH2O

+ Temperature + Humidity

PM2.5 + CO2 + VOC

+ Temperature + Humidity ID:

1680868

Overview:

This is an all-in-one module integrating CH2O sensor, laser dust sensor, infrared carbon dioxide sensor and temperature and humidity sensor.

The communication interface is serial port (TTL), baud rate: 9600 data bits: 8, stop bit: 1, parity bit: none.

Specifications:

Product number

ZPHS01

Detection category

Carbon dioxide, PM2.5, formaldehyde, temperature, humidity

Interfering gas

Alcohol, carbon monoxide, etc.

Operating Voltage

5V DC

Average current

200mA

Interface level

3V (compatible with 3.3V)

output signal

UARTIIC

Preheat time

5min

CO2 range

0-5000ppm

pm2.5 range

0-1000g/m3

Formaldehyde range

0-2000g/m3

Temperature range

-10~50

Temperature accuracy

±0.5

Humidity range

0~100%RH

Humidity accuracy

±3%

Application:

Gas Detector Air Purifier Air Conditioner Fresh Air Ventilation System Air Quality Monitoring Equipment Smart Home

Package Included:

1 x ZPHS01 All-in-one Gas Detection Module
