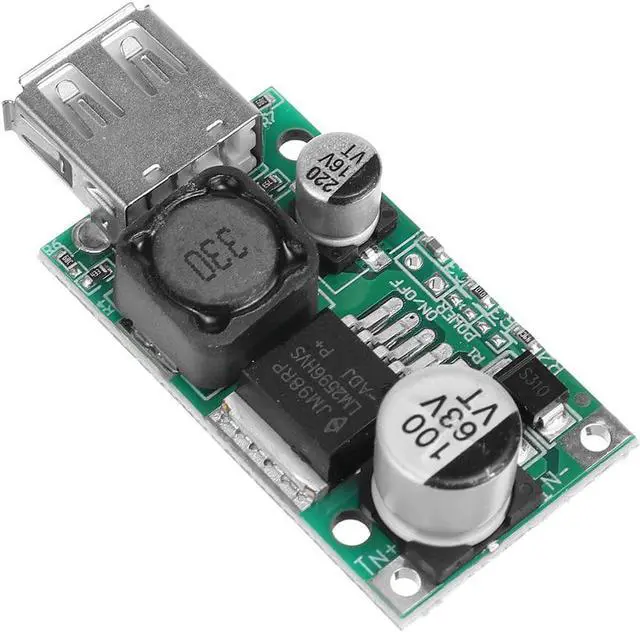

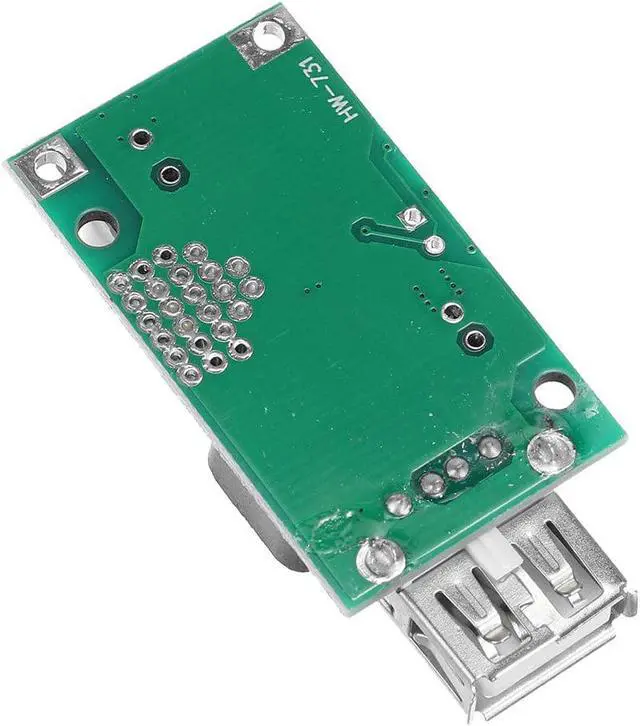

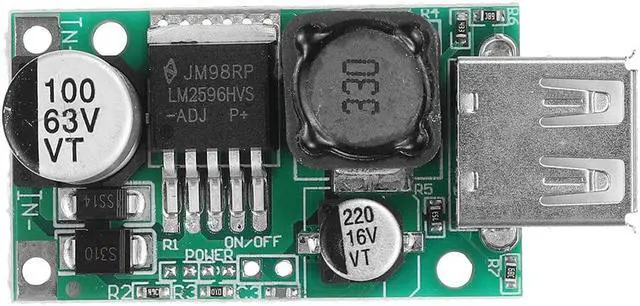

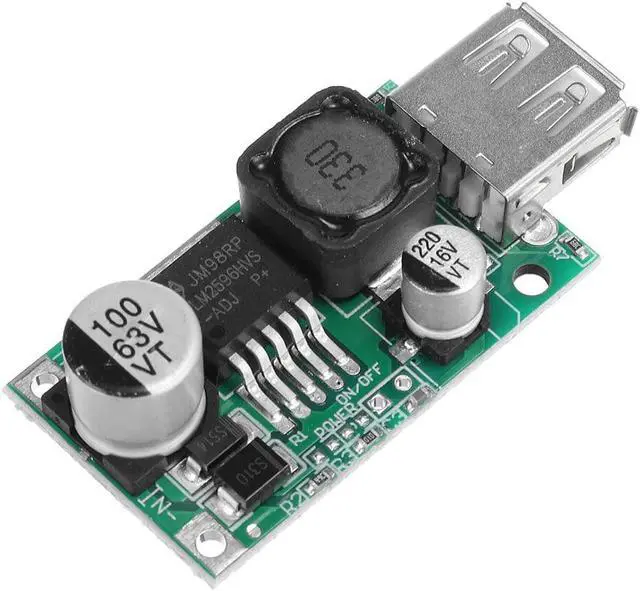

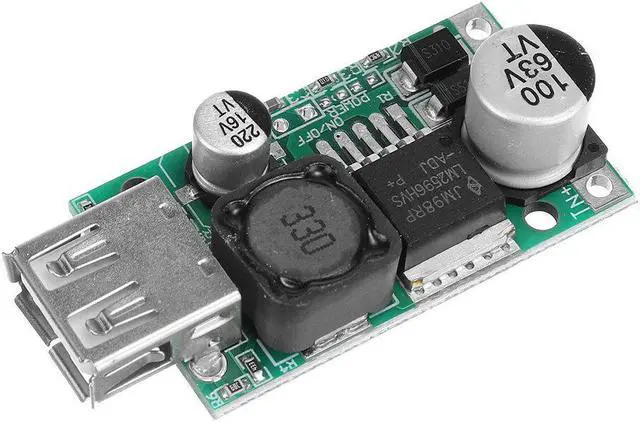

HW-731 LM2596HV DC-DC 12V-48V to 5V Electric Vehicle Battery Step-down Module USB Mobile Phone Charging Board
- Good Quality
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module parameters:
Module nature: non-isolated step-down module
Main chip: LM2596HV
Input voltage: 7-56V limit 56V, please leave a margin for use
Output voltage: fixed 5V
Output current: maximum 3A, best within 2.5A for long-term work
Output power: maximum 15W (calculation formula for output current: 15/output voltage = output current)
Conversion efficiency: up to 92% (the higher the output voltage, the higher the efficiency)
The static power consumption is only about 6mA.
Working temperature: industrial grade (-40 to +85)
Input terminal: IN+ connects to the positive pole, IN- connects to the negative pole
Module size: 40*23*11.5mm (including USB length is 48mm)
Package included:
1 x Step-down module
