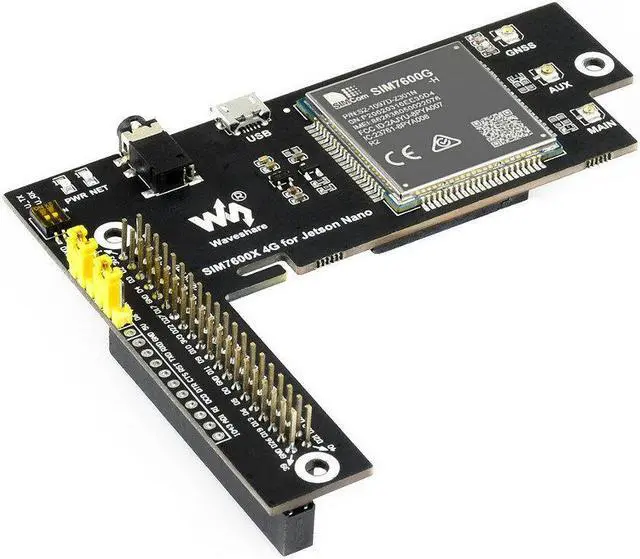

SIM7600G-H 4G / 3G / 2G / GNSS Module for Jetson Nano LTE CAT4 Global Applicable

Documents:

Manual: Click here to open

Schematic: Click here to open

Datasheet: Click here to open

Code: Click here to open

SIM7600 Driver: Click here to open

driver for wwan0: Click here to open

Tools: Click here to open

Overview:

This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.

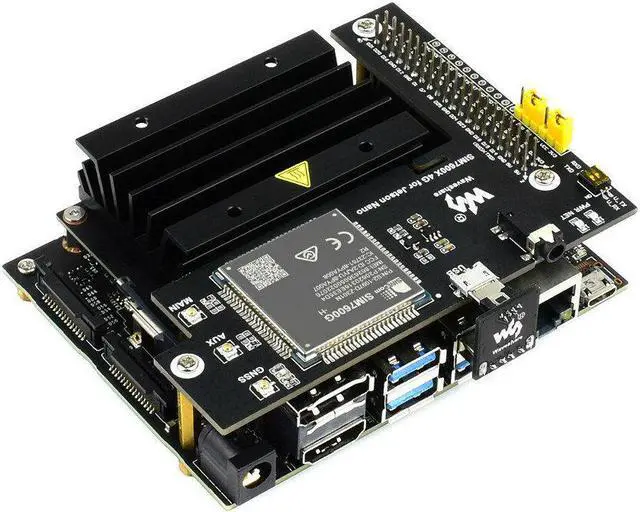

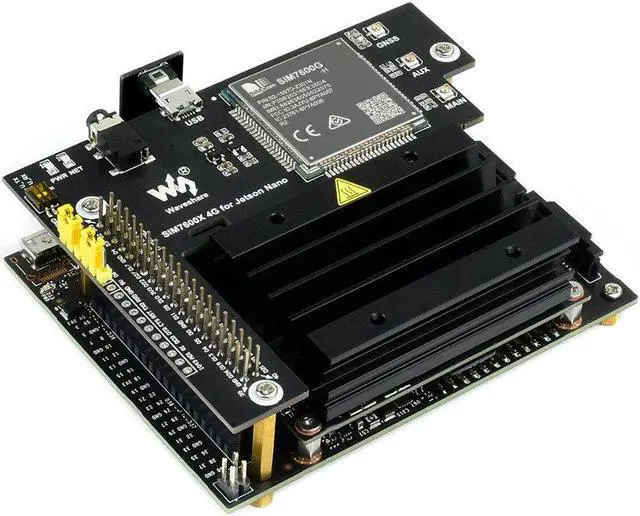

Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.

Features:

1. 40PIN GPIO extension header for connecting Jetson Nano

2. Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.

3. Supports GPS, BeiDou, Glonass, LBS base station positioning

4. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

5. Break0ut UART control pins, to connect with host boards like Arduino/STM32

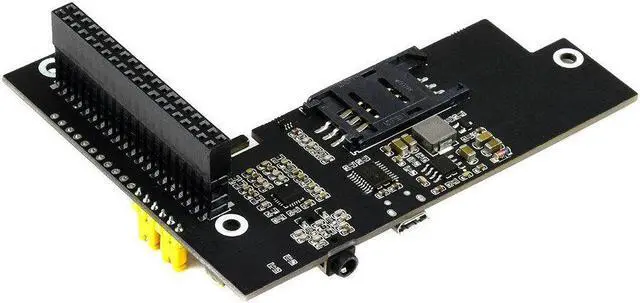

6. SIM card slot, supports 1.8V/3V SIM card

7. Onboard 3.5mm audio jack with earphone and mic support, for making telephone call

8. 2x LED indicators, easy to monitor the working status

9. Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via

10. Baudrate: 300bps ~ 4Mbps (default: 115200bps)

11. Autobauding baudrate: 9600bps ~ 115200bps

12. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)

13. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

14. Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32)

Communications Specifications:

LTE
