ESP32 Development Board Upgraded Version 8MB Flash ESP32 WiFi Bluetooth ESP32 OLED 096 Inch OLED Display CP2102 Internet for Ar duino ESP8266 NodeMCU
- *****
- **********
- ***** *****
- *****Best Quality Guranteed.*****

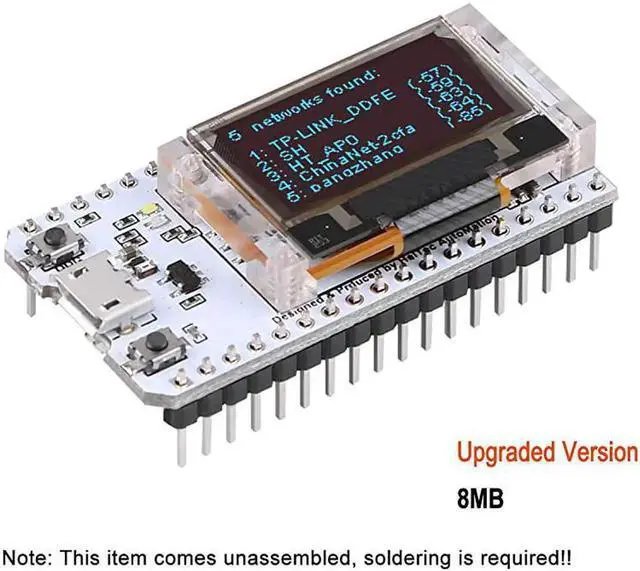

- *****[Full documentation]: https://drive.google.com/file/d/1_P9HP9dKquaM_gGJa4mBdF9D2Kwx_v6s/view?usp=sharing; [Note]: This ESP32 development board comes unassembled, soldering of headers is required!! It can lithium battery powered, the lithium battery is not included, battery may be purchased here: https://www./dp/B07CXNQ3ZR*****
- *****Add battery power detection circuit. Use ADC2_4 (GPIO 13) to read battery voltage. Please refer to this example: https://github.com/HelTecAutomation/Heltec_ESP32/blob/master/examples/ESP32/ADC_Read_Voltage/Battery_power/Battery_power.ino*****

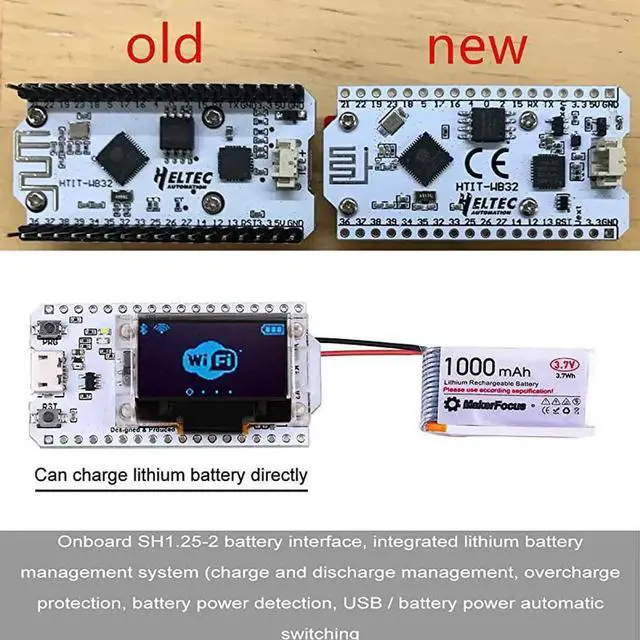

- *****[This is an upgraded version WiFi Kit 32! ] What's the Upgrade of New WiFi Kit 32? 1. 4MB (32M-bits) FLASH upgrade to 8MB (64M-bits) FLASH; 2. Better 2.4GHz antenna design and impendence matching; 3. Basic low power design (800uA in deep sleep); 4. Add battery power detection circuit. Use ADC2_4 (GPIO 13) to read battery voltage. Please refer to
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Color:

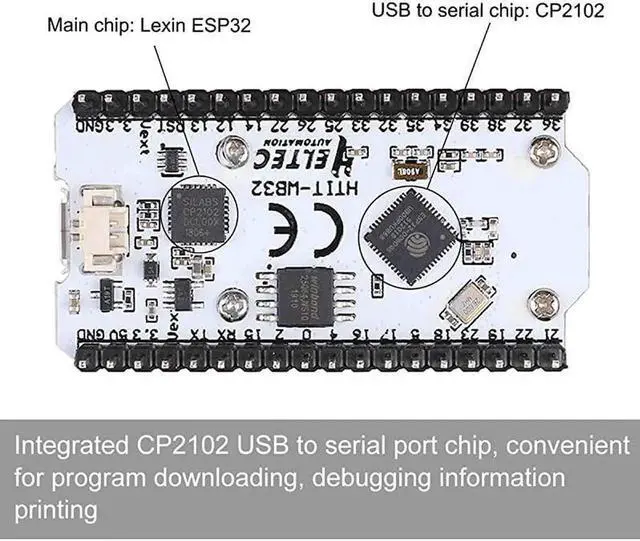

whiteDescription: WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Onboard 8MByte(64M-bit) Flash, Wi-Fi antenna, 0.96 -inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for

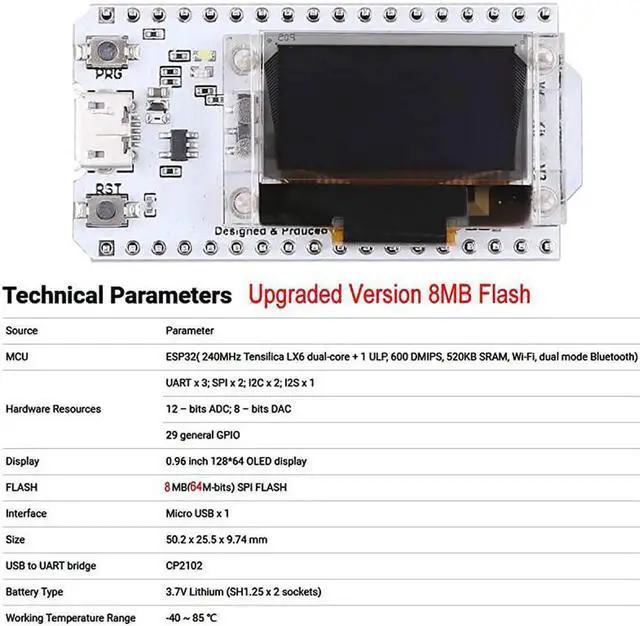

Arduino development environmentSpecification: Operating
voltage: 3.3V
to 7VOperating temperature range: -40 C to + 90

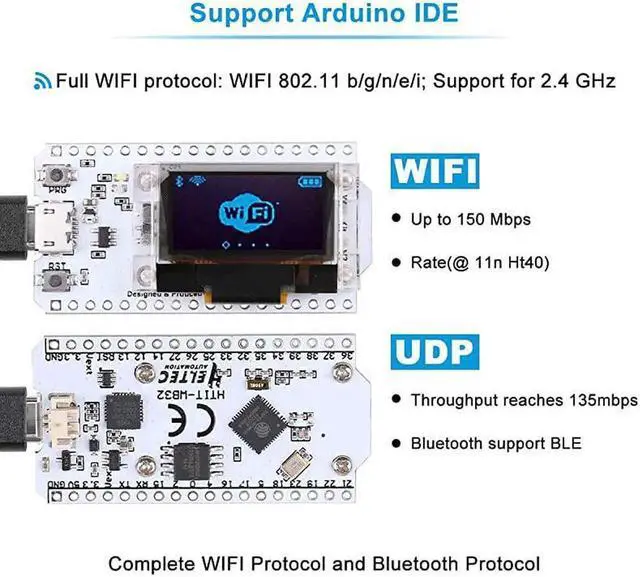

CData rate: 150 Mbps 11n HT40, 72 Mbps 11n HT20, 54 Mbps 11g, 11
Mbps 11bTransmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11nFlash
Size: 8MByte(64M-bit)Module

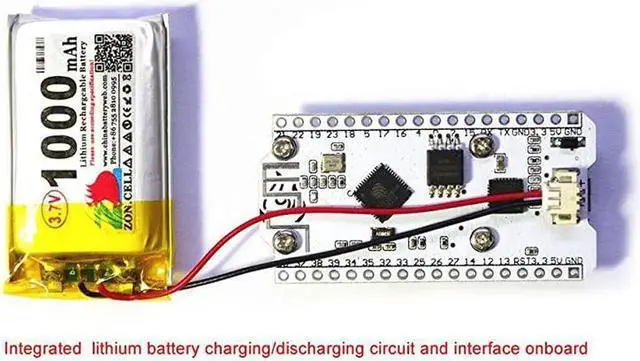

Size: 50* 25.4 * 10.3 mmLithium battery interface: 2Pin- 1.25 mm interfaceReceiver sensitivity up to - 98 dBmUDP continues to throughput by 135 MbpsSupports Sniffer, Station, softAP and Wi-Fi Direct modesPackage Including1 * ESP32 Development Board with OLED2 * Pin headers
