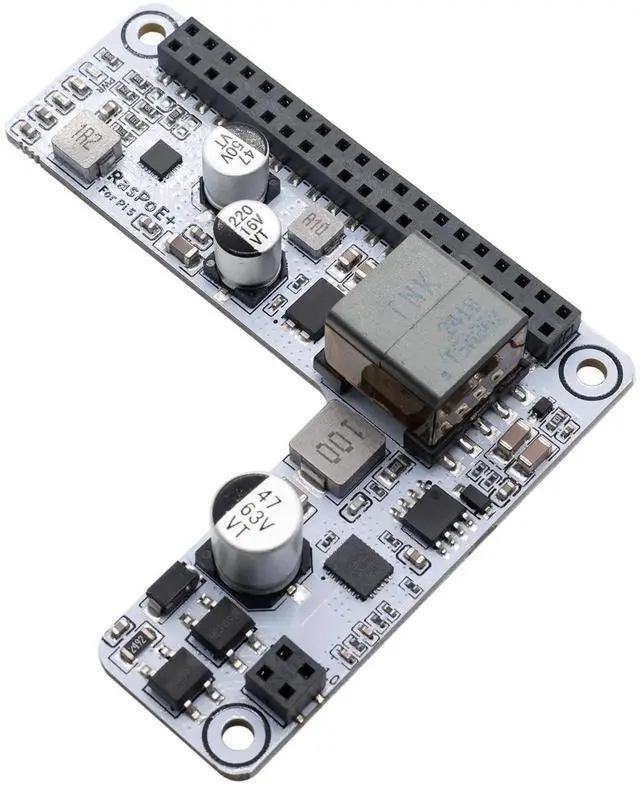

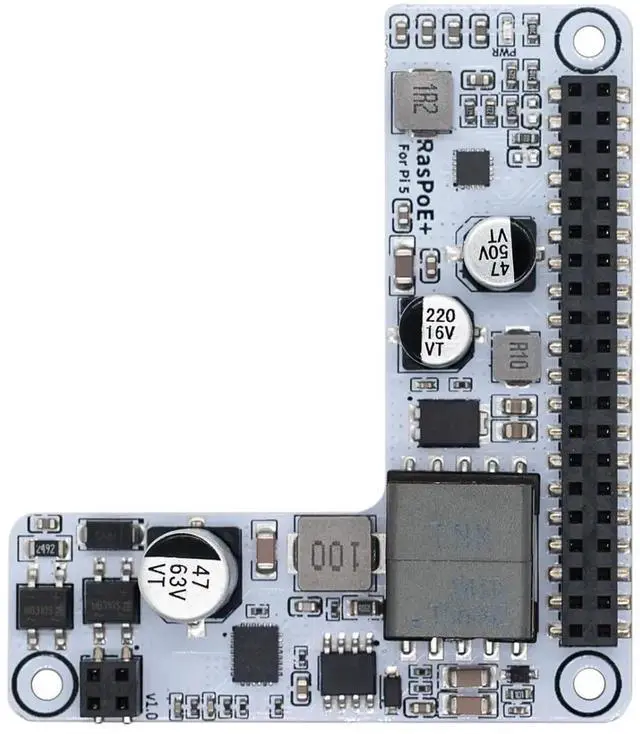

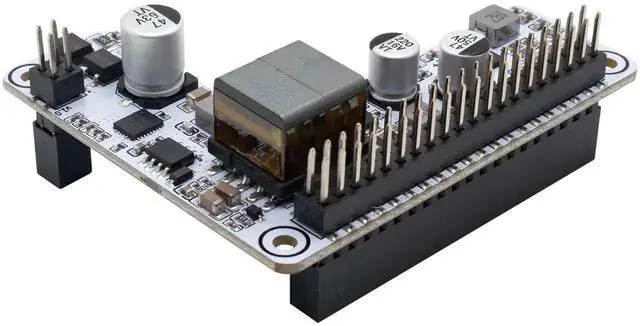

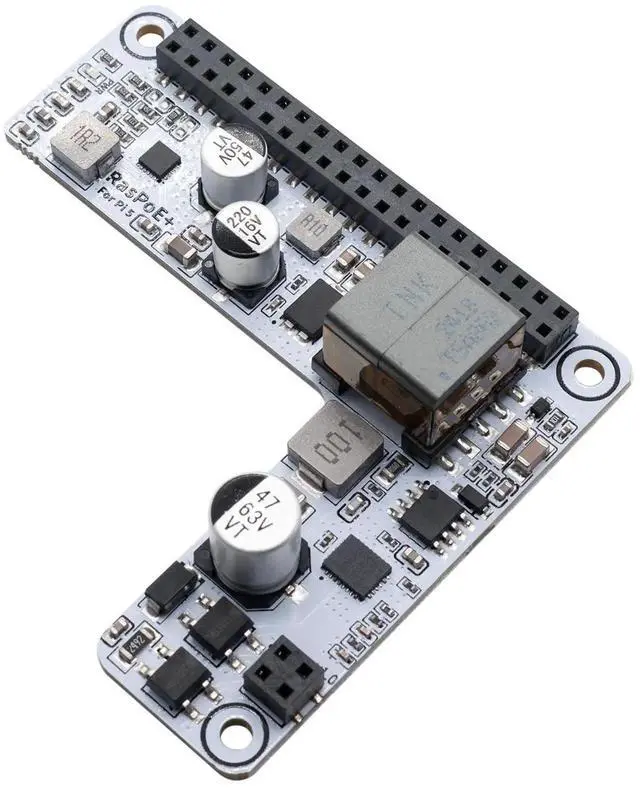

PoE HAT Board for Raspberry Pi 5,Power Over Ethernet HAT for Raspberry Pi 5,Supports IEEE 802.3af/at Network Standard,5V 4.5A Power Outputs
- The PoE Expansion Board is an 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. (Note: Not for PI4B and PI3B). With Standard Pi 40PIN GPIO stackable header, allows connecting other HATs.
- By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for the Raspberry Pi 5 in only one Ethernet cable.
- Onboard original IC solution for more stable PoE power performance. Fully isolated switched-mode power supply (SMPS).
- PoE capability: IEEE 802.3af/at-compliant. PoE power input: 37V ~ 57V DC in.Power Output GPIO header: 5V 4.5A (MAX).
- Fully open design compatible with Raspberry Pi Active Cooler.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 PoE (Power Over Ethernet) capability, IEEE 802.3 af/at-compliant Fully isolated switched-mode power supply (SMPS) Fully open design compatible with Raspberry Pi Active Cooler.
Specifications
: PoEpower
input: 37V ~ 57V
PowerOutput GPIO header: 5V 4.5A (MAX)
Dimensions: 56.5 x 65.0 mm
Networkstandard: IEEE 802.3 af/at
PoE Isolated: 3KV
