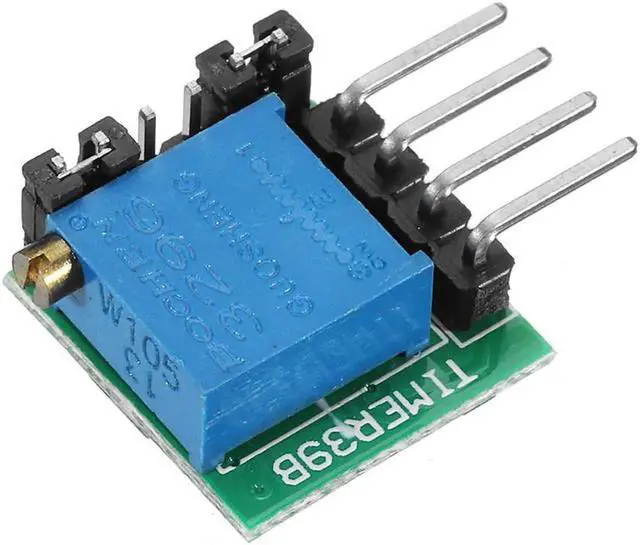

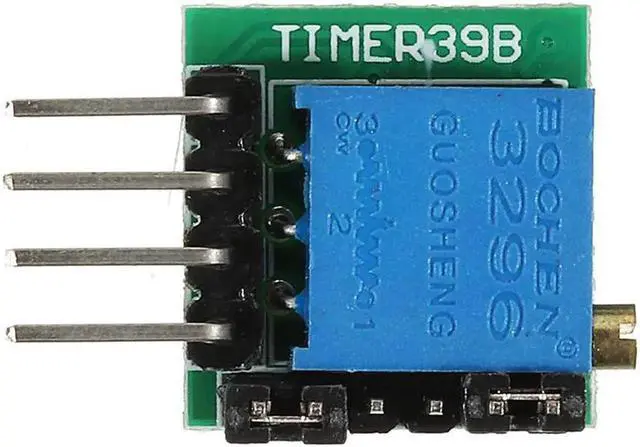

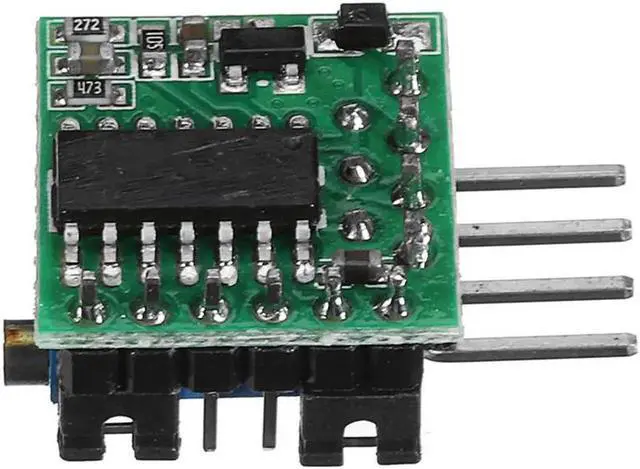

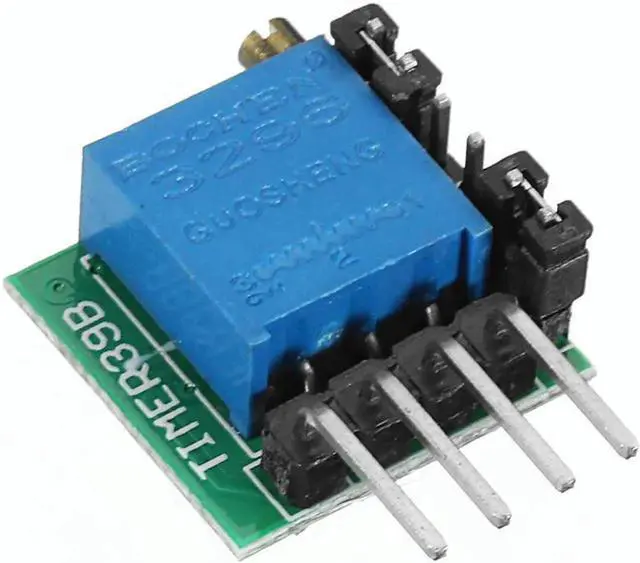

AT41 Time Delay Relay Circuit Timing Switch Module 1s-20H 1500mA For Delay Switch Timer Board DC 12V 24V 3V 5V

Specifications:

Delay Time Adjustment Range: 1S-20H

Vo output port output high level;driving capacity is up to 1500mA

Power Supply Voltage: DC 3-27V

Max Operating Current:

1) 3V: 0.27mA

2) 5V: 0.56mA

3) 12V: 1.6mA

4) 24V: 4.4mA

Application:delay switch,timer

Size: 15x11x8mm

Pin Space: 2.54mm

Pin Definition:

1.VCC:power

2.Vo:output port

3.TG: trigger signal input port (high level)

4.GND:power ground

Side Pin Instructions for Use:

1.

After power on,Vo output port has no output,after Vi port input high level signal trigger,Vo output port has no output;after delay for some time,Vo output port output high level.Above two modes can be shifted by module wire

2.

1, 2, 3 three pins are used to set the timing time range, 1-2 connection timing time is adjustable from 1 second to 290 seconds; 2-3 connection timing time is expanded by 256 times, which is adjustable from 256 seconds to 20.5 hours.

The 4, 5, and 6 pins are used to set the state of the module output Vo.

3.

4-5 connected, the initial state after power-on and the output after reset are low level, the output is open state after the timing time is reached; 5-6 is connected, the initial state after power-on and the output after reset are open state, after the timing time is up The output is low.

4.

Adjust the potentiometer counterclockwise, the time is reduced, and the potentiometer time is increased clockwise.
