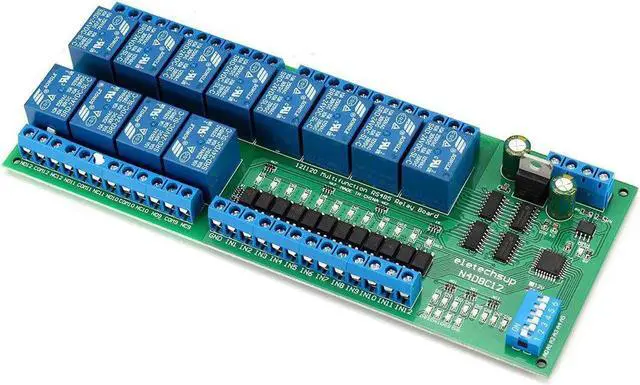

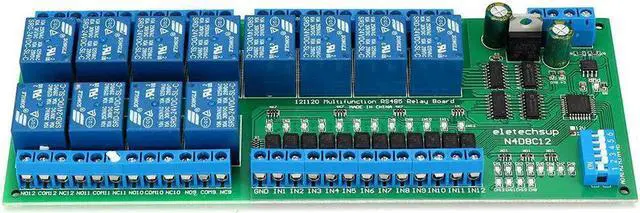

N4D8C12 Isolation 12V/24V RS485 Relay Modbus RTU Protocol DIN35 Rail Shell PLC Optional

>>>USER MANUAL<<<

Features:

1. Working voltage: DC 12V (12V version); 24V (24V version) OPTIONAL

2. Working current: standby 14MA, 1 relay conduction 44MA, 2 relay conduction 69MA, 3 relay conduction 95MA, 4 relay conduction 121MA, 5 relay conduction 149MA, 6 relay conduction 175MA, 7 relays conduct 199MA, 8 relays conduct 226MA, etc.

3. 12 optically isolated input ports (NPN is active at low level), and the input/output relationship can be set to associated (default) and non-associated through commands.

4. Open, close, jog, self-lock, interlock, delay, interlock between two channels, seven working modes

5. MODBUS instruction supports 03 06 16 function code

6. The maximum delay under MODBUS instruction is 255 seconds

7. AT commands can be input by serial port super terminal (serial assistant); MODBUS commands can also be input by "Modbus Poll" in addition to serial port super terminal input

8. In MODBUS command mode, up to 64 devices can be used in parallel

9. The default baud rate is 9600BPS, you can select the baud rate 2400 4800 19200 BPS through the

10.Size: 180 * 72 * 20mm (circuit board); 184 * 88* 42mm (box with guide rail)

11. Weight: 190g (circuit board); 318g (with rail box)

12. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

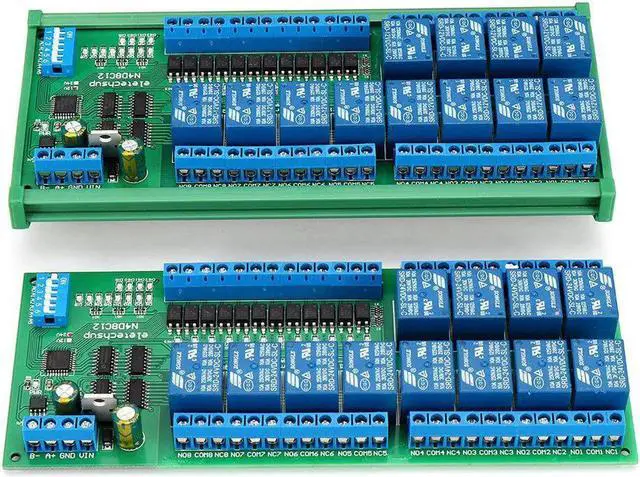

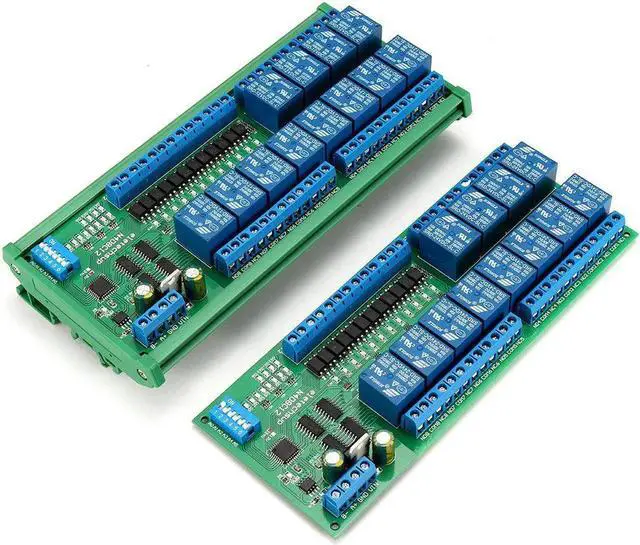

DIN rail box parameters:

Product model: UM72

Color: green

Width: suitable for the use of circuit board width UM72

Insulation grade: flame retardant VO grade

Base plate length: suitable for 18 cm circuit board

Net weight: 128 grams

Installation method: DIN35 and C45 rail

Package includes:

1 x Relay board
