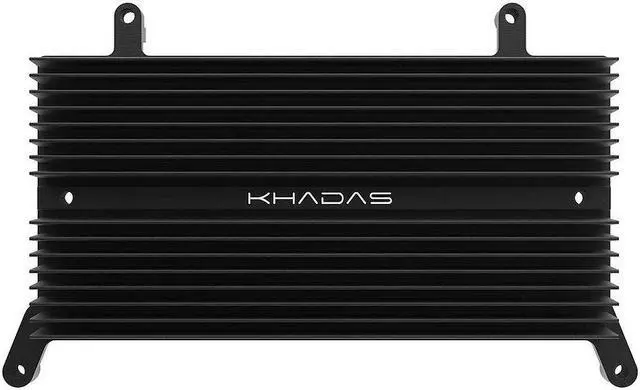

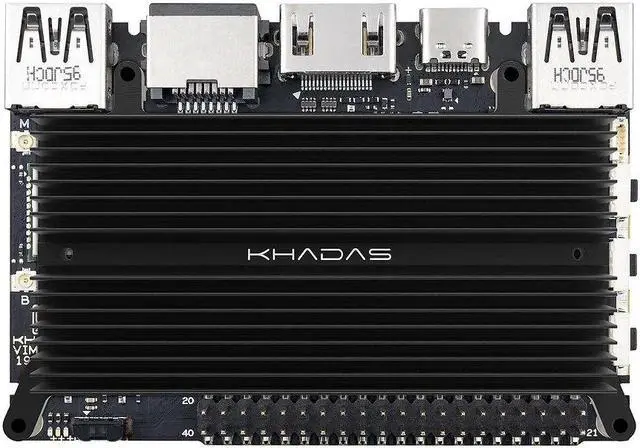

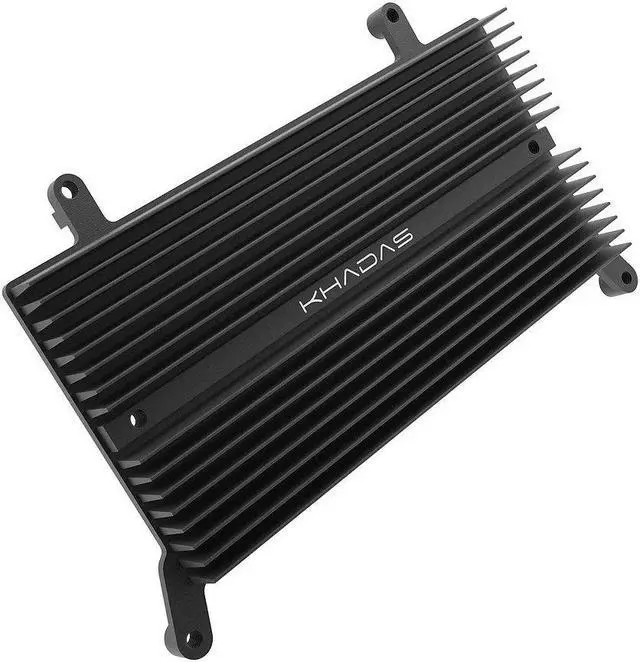

Khadas Passive Heatsink for VIM1/1S/2/3/3L/4/Edge-V
- Our passive-internal heatsink for VIM series, and Edge-V SBCs. We've extended the fins all the way to the left-side to increase surface area for passive cooling. We believe this heatsink will be popular amongst HTPC enthusiasts and those who prefer to have a silent computing/entertainment experience.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Material: 6063 Aluminium
Colour: Black
Mounting: M2x4
Weight: 24.0 g
Dimensions: 81.0 x 49.1 x 8.9 mm
Thermal Pad (VIM Series):
Material: Silicone
Colour: Blue
Conductivity: 2.0W /mK
Weight: 2.0 g
Dimensions: 20.0 x 20.0 x 1.6 mm
Thermal Pad (Edge-V):
Material: Silicone
Colour: Pink
Conductivity: 2.0W /mK
Weight: 1.0 g
Dimensions: 20.0 x 20.0 x 0.8 mm
Compatibility:
VIM1
VIM1S
VIM2
VIM3/3L
VIM4 (Supported, but not recommended. )
Edge-V (Supported, but not recommended. )
DIY Case
Incompatible:
3705 Cooling Fan
3004 Cooling Fan
Edge2
Edge
Captain

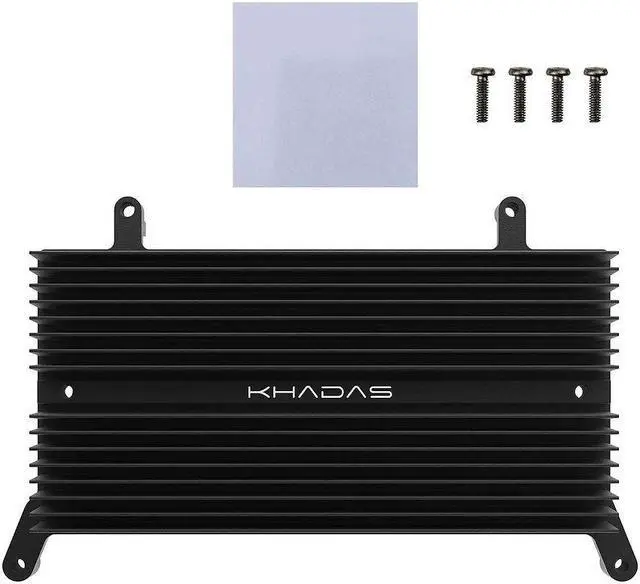

In the Packet:
Passive VIM Heatsink

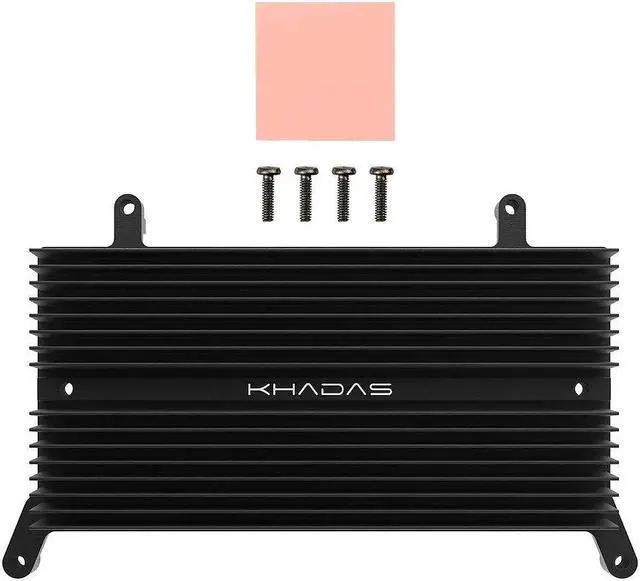

Thermal Pad (Blue: VIM Series, Pink: Edge-V)
x4 M2 Crosshead Screws
