$15.99
Meet Your Seller

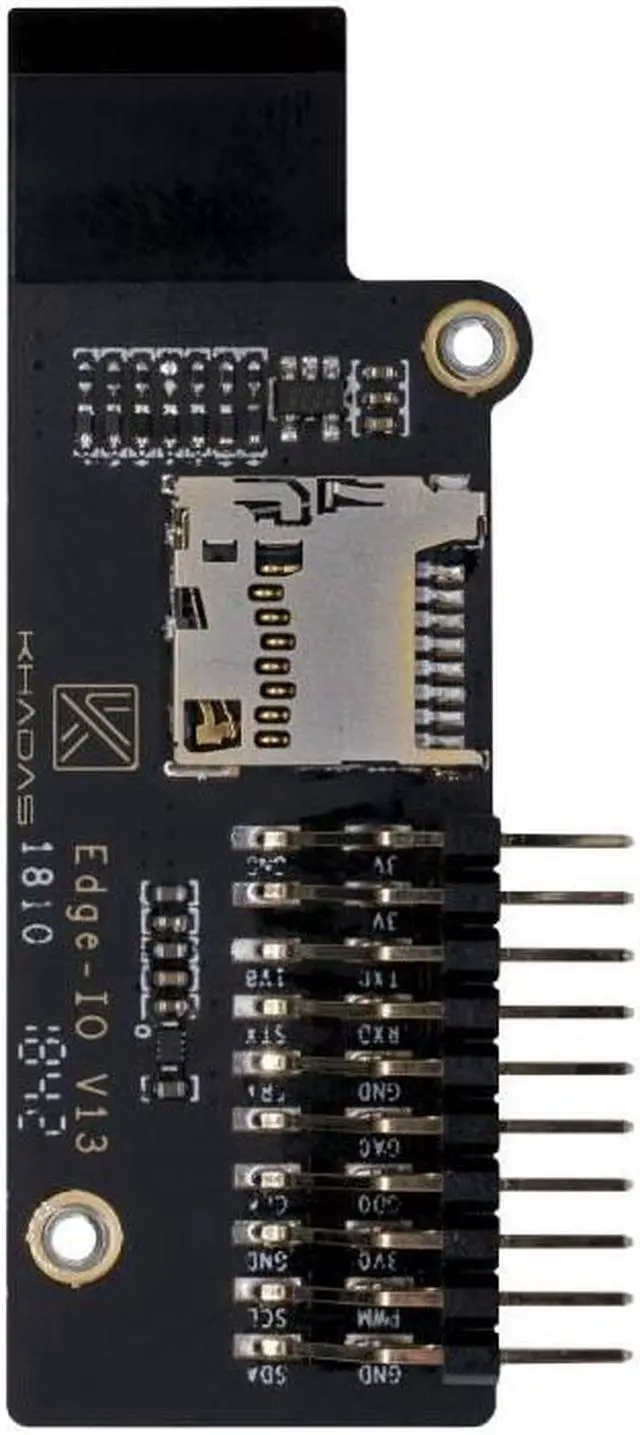

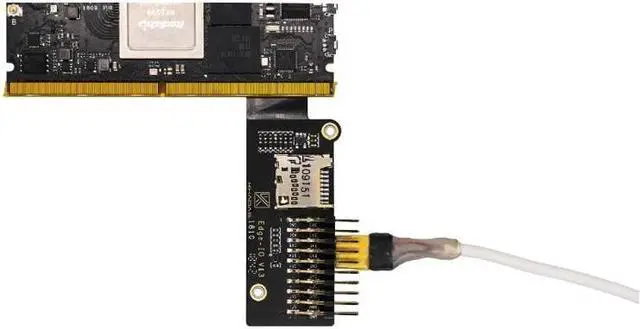

Edge2 IO Module
- SD Card Reader (UHS-I)
- 4-pin, 1.25mm pitch, detachable Crimp Connector (USB HOST)
- 2-pin, 1.25mm pitch, detachable Crimp Connector (Analog Speaker Output)
- 2-pin, 1.25mm pitch, detachable Crimp Connector (Analog Microphone Input)
- 3.5mm Headphone Jack
- IR Receiver (Dual Channel)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Expand I/O:
16-pin,
2.54 mm pitch,
GPIO Header (CPU: UART, ADC, SPI, I2C;
MCU: SWDIO, SWCLK)
10-pin,
2.54 mm pitch,
Pogo Pads (CPU: I2S, PWM, WPR_KEY; MCU: UART)
Dimensions:
52.2 mm (l) / 66.7 mm (with FPC) x 46.5 mm (w) x 6.3 mm (h)
Compatibility:
Edge2
Documentation:
Schematic
Silkscreen
3D CAD Files
2D DXF Files
In The Box:
Edge2 IO Module x1
M2 screws (short) x2
M2 screws (long) x2
16-pin,
2.54 mm pitch,
GPIO Header (CPU: UART, ADC, SPI, I2C;
MCU: SWDIO, SWCLK)
10-pin,
2.54 mm pitch,
Pogo Pads (CPU: I2S, PWM, WPR_KEY; MCU: UART)
Dimensions:
52.2 mm (l) / 66.7 mm (with FPC) x 46.5 mm (w) x 6.3 mm (h)
Compatibility:
Edge2
Documentation:
Schematic
Silkscreen
3D CAD Files
2D DXF Files
In The Box:
Edge2 IO Module x1
M2 screws (short) x2
M2 screws (long) x2
