Khadas New M2X Extension
- Features: M.2 Slot (M-Key) for 2280 NVMe SSDs M.2 Slot (B-Key) for 4G LTE Modules Nano-SIM Card Slot 10-Pin GPIO Header 4G Active LED
- Dimensions: 94.0 x 56.0 x 5.5 MM Compatibility: VIM3/3L (Full-Featured, PCIe x1 Lane) Edge-V (SSD-only, PCIe x4 Lane) Quectel EM06 4G LTE Module

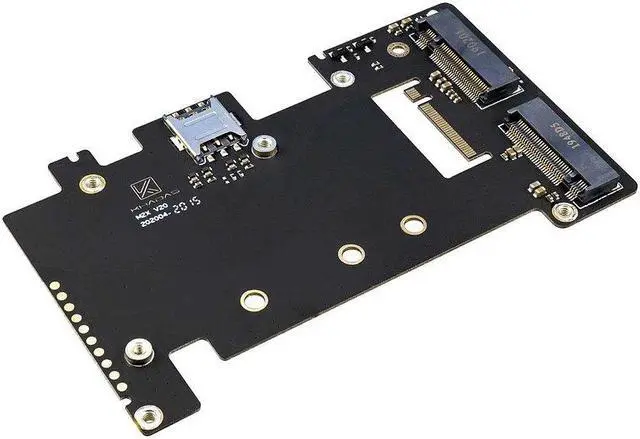

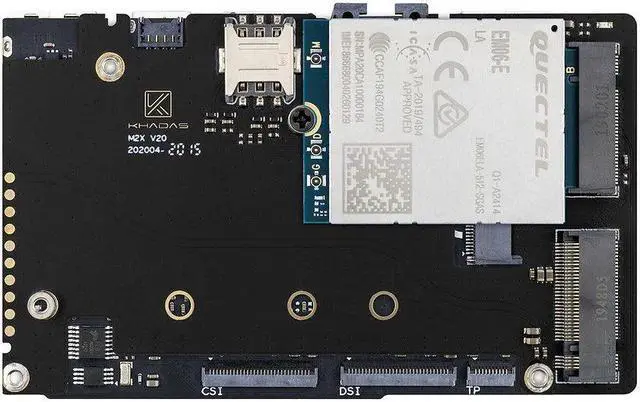

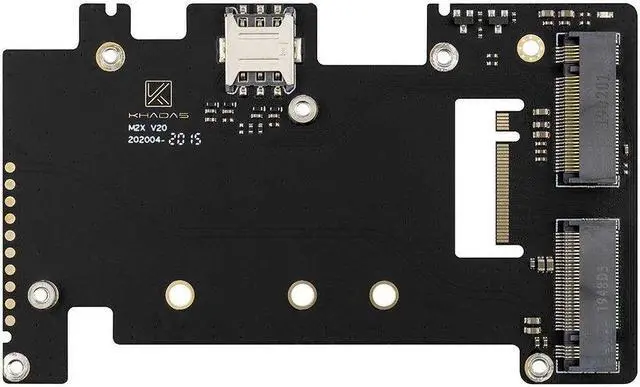

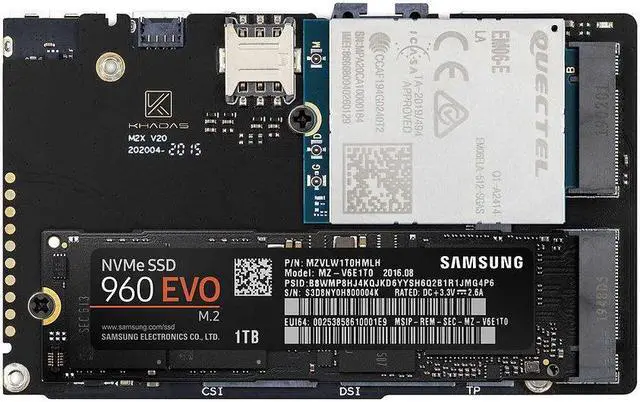

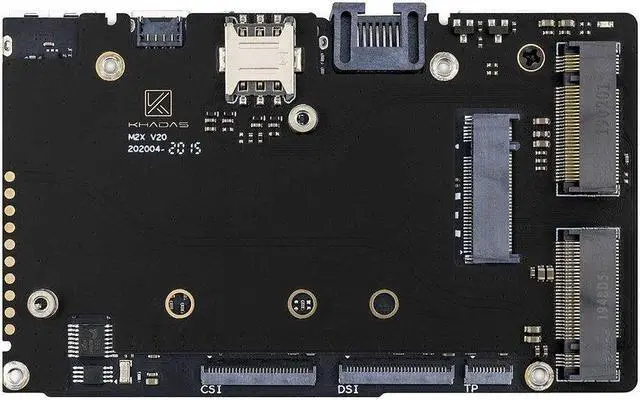

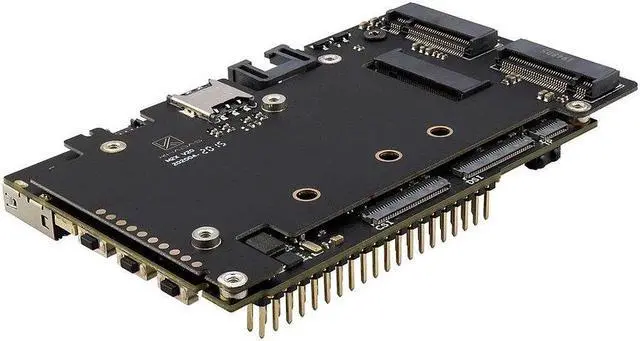

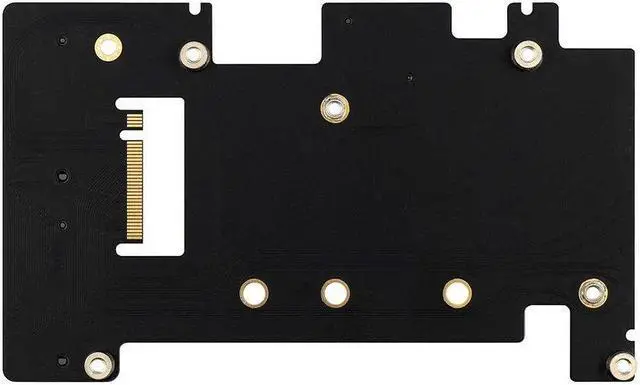

- The New M2X Extension board is an ultra-thin version of the Original M2X Board. It has M.2 slots for adding a 4G LTE Module and NVMe SSD to your VIM3, 3L or Edge-V. A nano-SIM card slot is built into the board.
- Note:Edge-V can only use the SSD feature, when connected to the New M2X Extension Board.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
M. 2 Slot (M-Key) for 2280 NVMe SSDs
M. 2 Slot (B-Key) for 4G LTE Modules
Nano-SIM Card Slot
10-Pin GPIO Header
4G Active LED
Dimensions:
94.0 x 56.0 x 5.5 MM
Compatibility:
VIM3/3L (Full-Featured, PCIe x1 Lane)
Edge-V (SSD-only, PCIe x4 Lane)
Quectel EM06 4G LTE Module
In The Box:
New M2X
M2 Screws x4
M2 Standoffs x2
* Edge-V can only use the SSD feature when connected to the New M2X Extension Board.
M. 2 Slot (M-Key) for 2280 NVMe SSDs
M. 2 Slot (B-Key) for 4G LTE Modules
Nano-SIM Card Slot
10-Pin GPIO Header
4G Active LED
Dimensions:
94.0 x 56.0 x 5.5 MM
Compatibility:
VIM3/3L (Full-Featured, PCIe x1 Lane)
Edge-V (SSD-only, PCIe x4 Lane)
Quectel EM06 4G LTE Module
In The Box:
New M2X
M2 Screws x4
M2 Standoffs x2
* Edge-V can only use the SSD feature when connected to the New M2X Extension Board.
