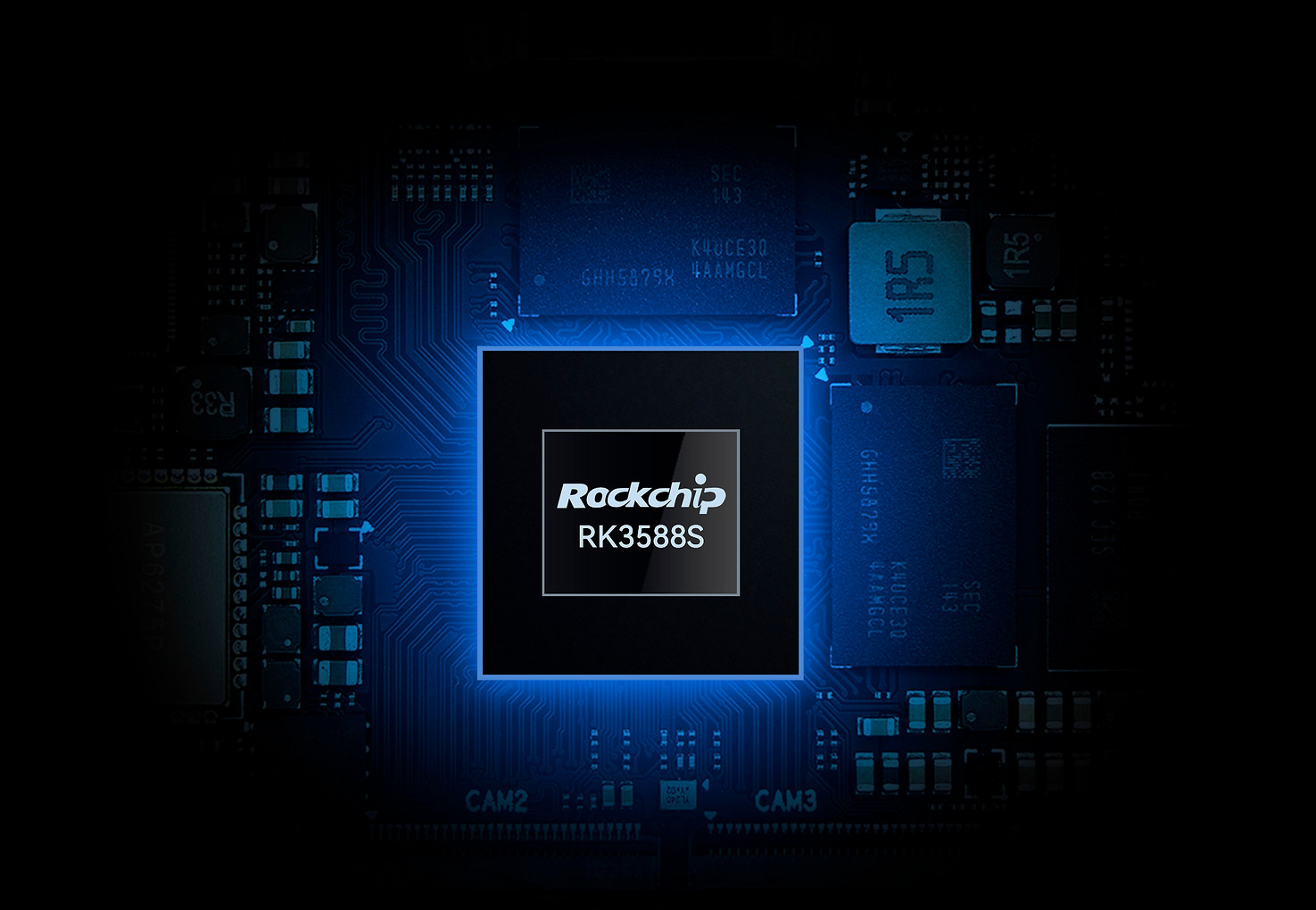

Edge2 is powered by the RK3588S, a next generation 8-core 64-bit SoC from Rockchip. The RK3588S is Rockchip's newest flagship IoT SoC utilizing the 8 nanometer lithography process. As a result, power consumption is significantly lower than the previous generation.
Faster CPU Performance
Edge2 is equipped with an 8-core 64-bit CPU (up to 2.25GHz clock speed)
x4 2.25GHz Cortex-A76 cores are paired with x4 1.8GHz Cortex-A55 cores
Extreme GPU Performance
The RK3588S has an integrated 4-core GPU, the ARM Mali-G610 MP4 (up to 1GHz clock speed) which supports a lag-free 4K user interface. 3D rendering has been greatly improved and you can play expansive open-world online games, console games and even some AAA titles.
High Performance NPU
The RK3588S has a built-in NPU which provides up to 6 TOPS (tera operations per second) of neural network processing. The NPU supports common deep learning frameworks, such as TensorFlow, Pytorch, MxNET and so on. The powerful RK3588S brings optimized neural network performance to various A.I. applications.
Octa Core Processor
Edge2 is equipped with an 8-core 64-bit CPU (up to 2.25GHz clock speed). x4 2.25GHz Cortex-A76 performance cores are paired with x4 1.8GHz Cortex-A55 efficiency cores.
Edge2 is powered by the RK3588S, a next generation 8-core 64-bit SoC from Rockchip. The RK3588S is Rockchip's newest flagship IoT SoC utilizing the 8 nanometer lithography process. As a result, power consumption is similar to the RK3399, yet we have achieved an overall performance boost of up to 2.5 times.
Powerful video encoding and decoding capabilities enable Edge2 to output beautifully crisp and clear 8K HD resolution. This will greatly expand the potential applications of Edge2 in multi-display environments such as digital signage, entertainment and gaming.
- Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9)
- Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)
The RK3588S has a built-in NPU which provides up to 6 TOPS (tera operations per second) of neural network processing. The NPU supports mainstream deep learning frameworks, such as TensorFlow, Pytorch, MxNET and so on. The powerful RK3588S brings optimized neural network performance to various A.I. applications.
Edge2 hardware supports up to four independent displays. This greatly expands the potential applications of Edge2 in multi-display scenarios such as digital signage, development and gaming.
The RK3588S has an integrated 4-core GPU, the ARM Mali-G610 MP4 (up to 1GHz clock speed) which supports a lag-free 4K user interface. 3D rendering has been greatly improved and you can play expansive open-world online games, console games and even some AAA titles.

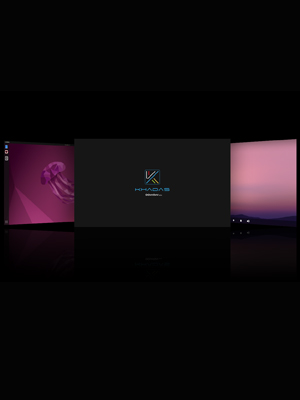

Edge2 supports a wide range of popular open source operating systems, such as Ubuntu and Android. It provides a reliable and stable software environment for product development and production. Software developers in partnership with Khadas, will release more customised operating systems for the Edge2 in the coming months.
| SoC Process | 8nm |
|---|---|
| CPU | Rockchip RK3588S 2.25GHz Quad Core ARM Cortex-A76 + 1.8GHz Quad Core Cortex-A55 CPU |
| GPU | ARM Mali-G610 MP4 GPU up to 1GHz |
| NPU | 6.0TOPS |
| SPI Flash | 32MB |
| Wi-Fi | Ampak AP6275P 2T2R Wi-Fi 6, IEEE 802.11 ax/ac/a/b/g/n |
| Bluetooth | V5.0 |
| MIPI-CSI Camera | x3 30-pin 0.5mm FPC Connectors 4-lane MIPI-CSI Interface per Connector ISP Resolution up to 48MP |
| HDMI INPUT | 4Kp60, Micro HDMI |
| USB Host | x1 USB 3.1 + x1 USB 2.0 |
