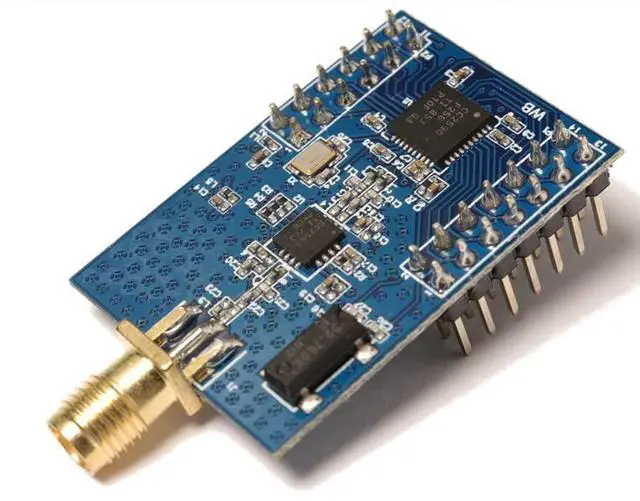

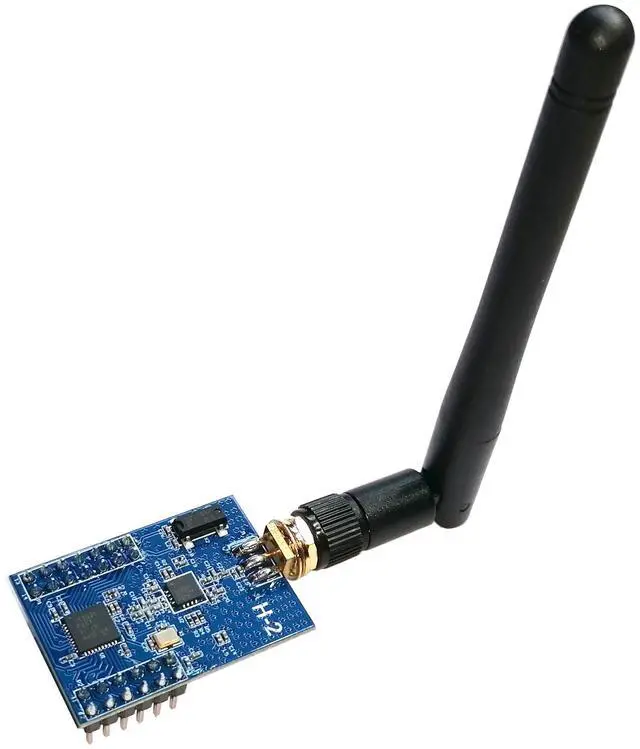

H-2 Technik Zigbee Development Module CC2530&CC2591, UART to Zigbee Firmware, DC3.3V, IO ports, AT configurable e.g. Coordinator/Router/Terminal, Transmission power, 3dBi Antenna included
- long communication distance with CC2591
- easy configuration via AT commands
- configurable transmission power
- low energy consumption
- UART to Zigbee firmware
- IAR, TI Packet Sniffer, TI flash programmer supported
- Compatible with TI CC-Debugger
+
+
Overview
Specs
Reviews

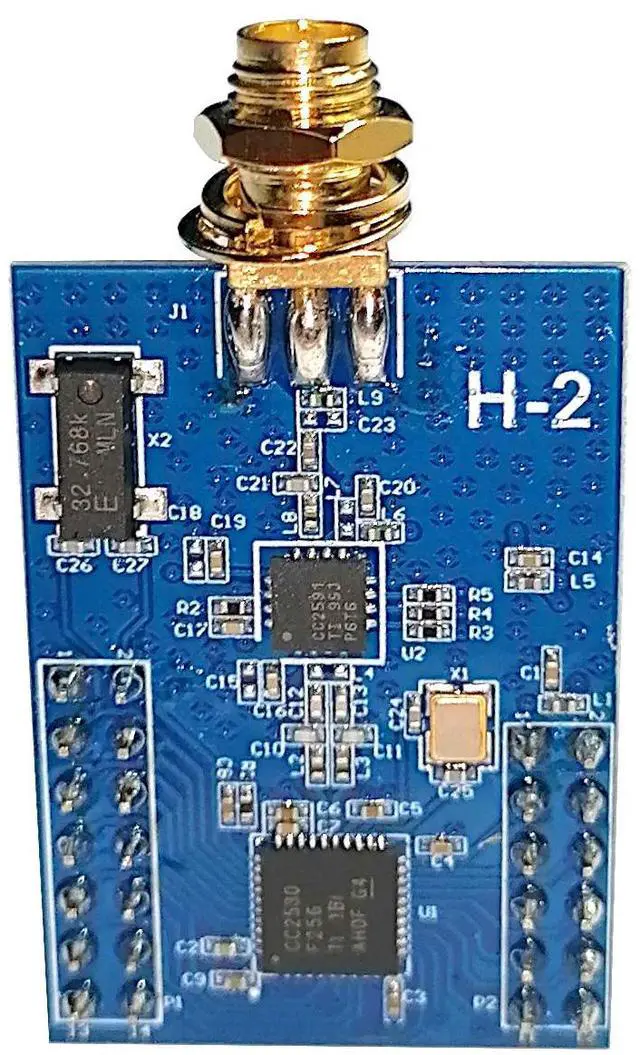

- TI CC2530F256 + CC2591(PA)
- DC3.3V power supply
- 2405~2480MHzG Frequency (11~26 Channels)
- max. 250kbps transmission rate
- -96 dBm receiving sensitivity
- max. 250kbps
- max. 21dBm transmission power
- Receiving current <50mA; Transmission current <110mA; Sleeping current <5µA
- Default firmware (Zigbee to UART, based on Zstack 2.5.2)
- Coordinator/Router/Terminal configurable

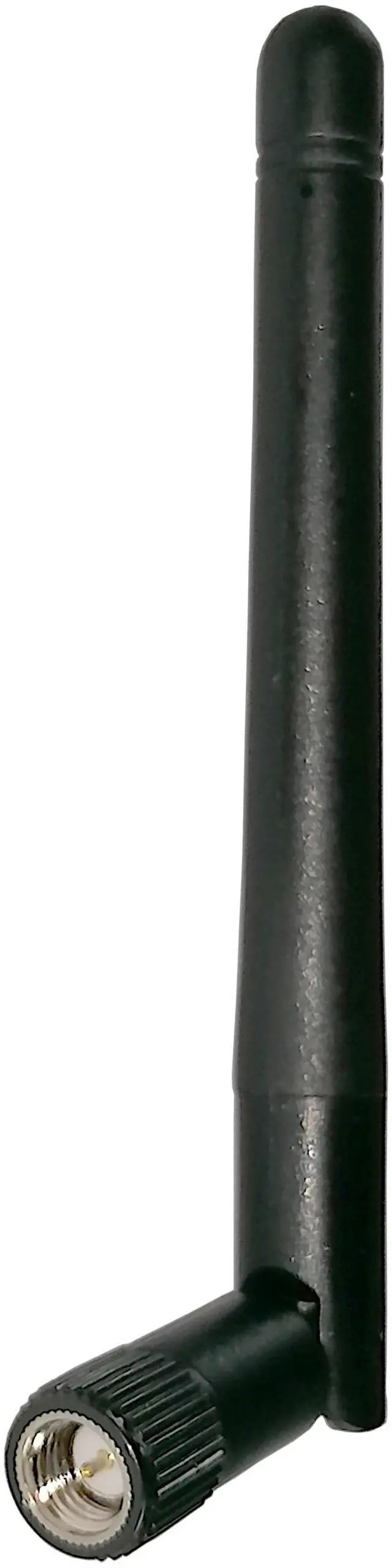

- SMA-K antenna interface
- 36mm x 26mm dimension
- 2x7 Males Pins, 2x6 Male Pins
- IAR, TI Packet Sniffer, TI flash programmer supported
