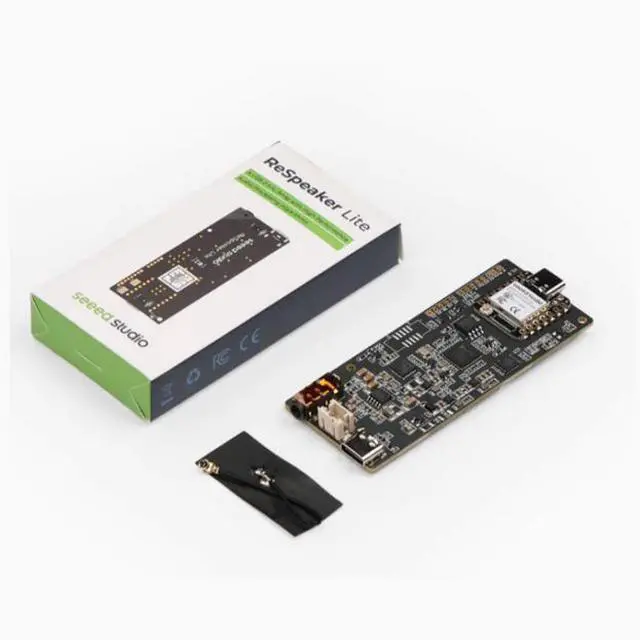

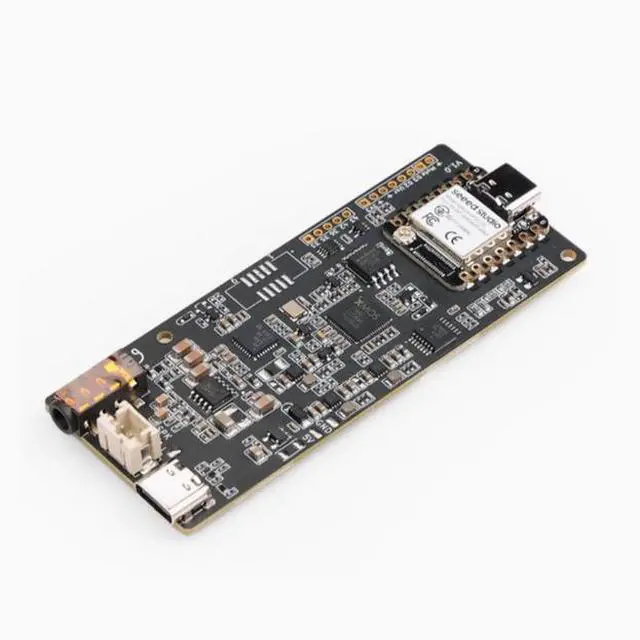

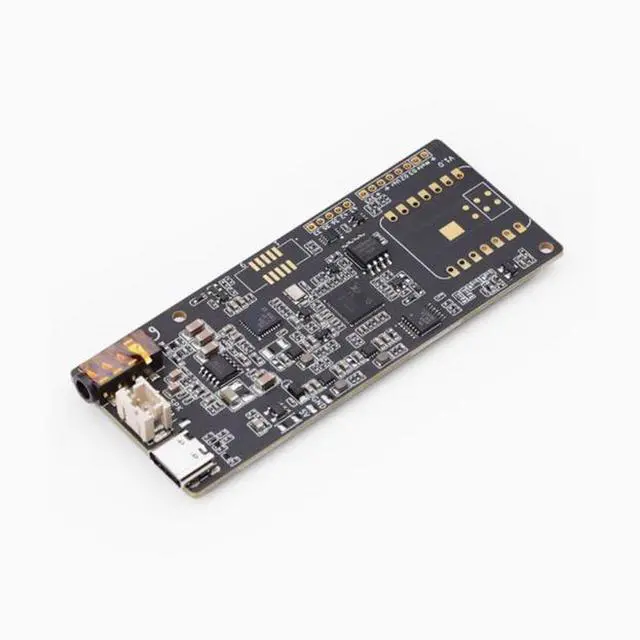

SeeedStudio ReSpeaker Lite 2 Microphone on-board AI speech recognition control module development kit with XIAO S3 motherboard
- Dual-microphone array for far-field speech capture: Even in a noisy environment, two high-performance digital microphones can capture and extract far-field speech and voice (up to 3 meters), as it uses two microphone inputs to eliminate point noise.
- · On-board AI NLU algorithm: This suite is supported by the XMOS XU-316 AI audio frequency chip and includes natural language understanding algorithms for interference cancellation (IC), echo cancellation, noise suppression, speech-to-noise ratio (VNR), and automatic Gain Control (AGC), enabling high-quality speech capture.
- · Embrace open source: This board is compatible with popular hardware platforms (XIAO ESP32S3(Sense), Adafruit QTPy) via 12S, and is compatible with RaspberryPi and PC via USB (Audio Class 2.0(UAC2)).
- On-board RGBLED: This board features programmable WS2812 RCB leds, supporting custom effects and providing a visual interface for your application.
- External power supply support: This board supports an external 5V power sup
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

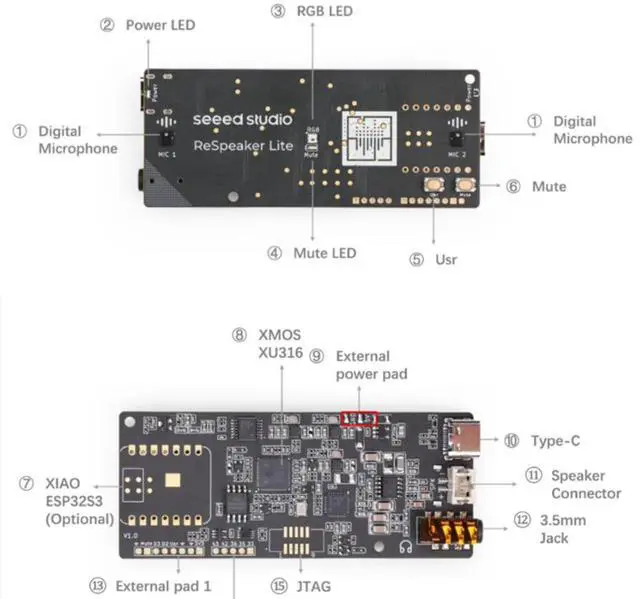

Core chip: XMOS XU316
High-performance digital microphones *2
Sensitivity -26 decibels per second
The acoustic overload point is 120 decibels
The signal-to-noise ratio is 64 decibels
Power supply: USB 5V, external 5V
The size is 35*86 millimeters
Audio output speaker connector / 3.5 mm headphone jack
The maximum sampling rate is 16 Hertz
The speaker supports a 5W power amplifier speaker
High-performance digital microphones *2
Sensitivity -26 decibels per second
The acoustic overload point is 120 decibels
The signal-to-noise ratio is 64 decibels
Power supply: USB 5V, external 5V
The size is 35*86 millimeters
Audio output speaker connector / 3.5 mm headphone jack
The maximum sampling rate is 16 Hertz
The speaker supports a 5W power amplifier speaker
