Arduino Mega 2560/Google ADK IO expansion board Robot sensor power strip
Limited time offer, ends 07/12 By EnYZME

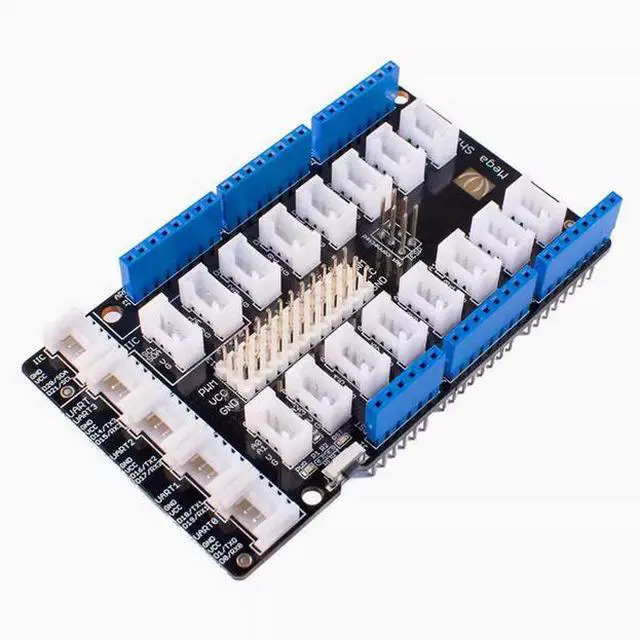

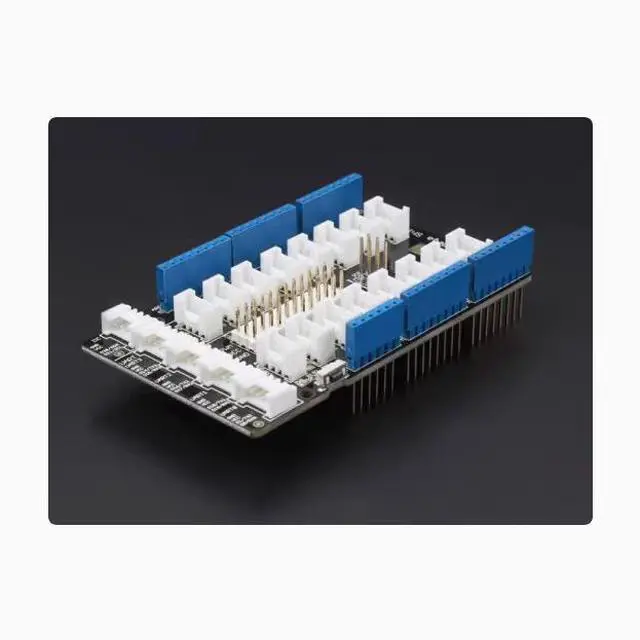

- Grove-Mega Shield is an extended version applicable to Arduino Mega and Seeeduino ADK. It contains 21 standard Grove interfaces, which can be conveniently connected to various sensors or other modules with Grove interfaces provided by Seeed. In addition, there are 12 rows of 3-pin servo interfaces in the middle, which are consistent with most servo interfaces, including one GND, one VCC and one signal port. Grove-Mega Shield enables you to connect other circuits more conveniently when using Mega or ADK, thus making the circuits more concise and beautiful
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Arduino Mega1280/2560/ADK compatible with Grove interface
Size: 92.8 mm x 57.2 mm
Functional module

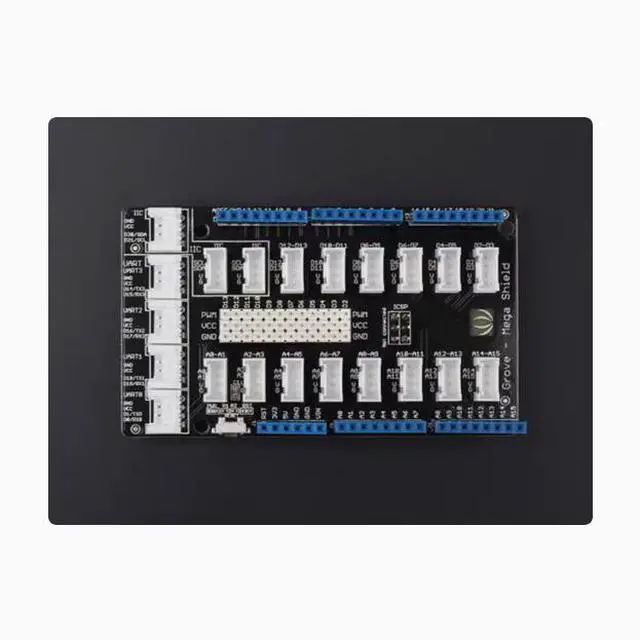

Grove-Mega Shield is designed for more convenient connections! Each socket is silk-screened to indicate its pin number. The Grove-Mega Shield mainly has four functional blocks: reset key, analog pin area, digital pin area and power module.
The digital pin area also includes some multiplexed functions: 12C (there are three), hard serial ports (Uart0-Uart3), PWM(PWM2-PWM11), and ICSP. PWM will be output simultaneously at Grove and the Servo interface in the middle. So you should be careful not to use the same pins at the same time to avoid causing some problems.
Size: 92.8 mm x 57.2 mm
Functional module
Grove-Mega Shield is designed for more convenient connections! Each socket is silk-screened to indicate its pin number. The Grove-Mega Shield mainly has four functional blocks: reset key, analog pin area, digital pin area and power module.
The digital pin area also includes some multiplexed functions: 12C (there are three), hard serial ports (Uart0-Uart3), PWM(PWM2-PWM11), and ICSP. PWM will be output simultaneously at Grove and the Servo interface in the middle. So you should be careful not to use the same pins at the same time to avoid causing some problems.
