Seeed StudioXIAO expansion board, Grove Shield adapter board and charging board are plug-and-play
Limited time offer, ends 03/22 By EnYZME

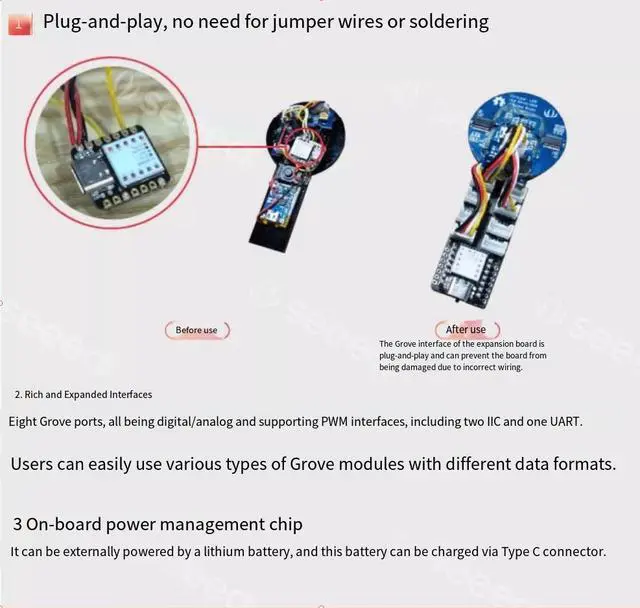

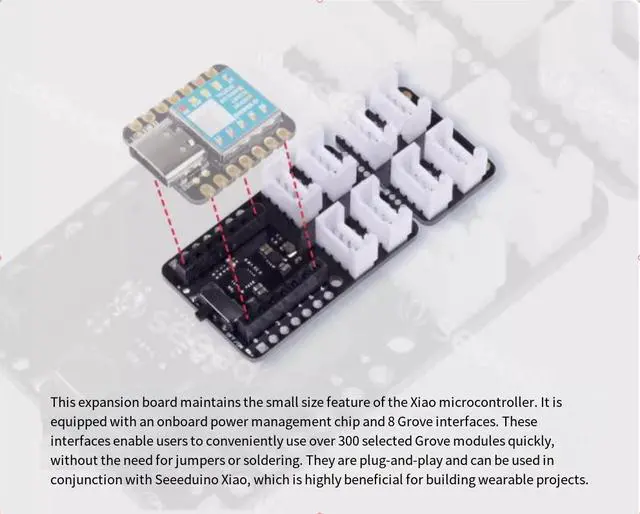

- This expansion board continues the compact size feature of the xiao microcontroller. It is equipped with a on-board power management chip and 8 Grove interfaces. These interfaces enable users to quickly use over 300 selected Grove modules without jumper cables or soldering. It is plug-and-play and, when used in combination with Seeeduino Xiao, is very conducive to building wearable projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

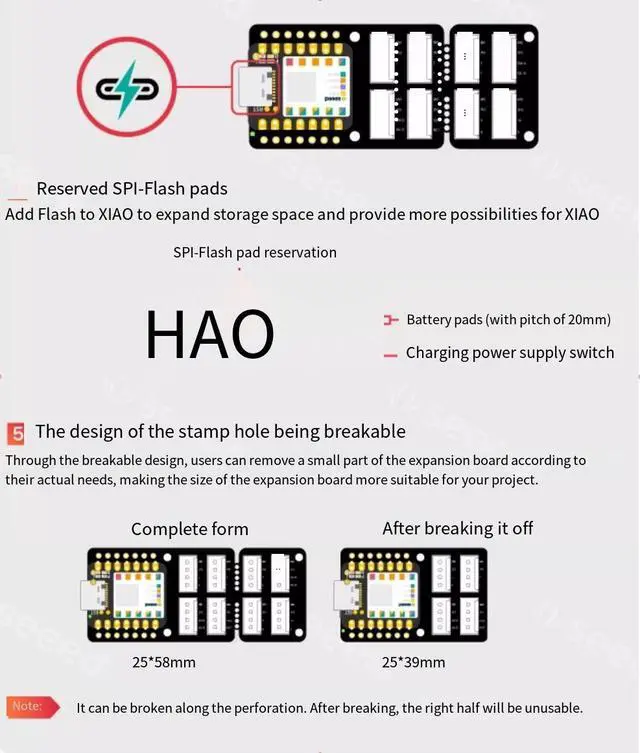

Dimensions: (after disassembly) 25*58mm/25*39mm
Power supply: 5V USB/ 3.7V lithium battery
Loading capacity: 800 milliamperes
Charging current: 400mA (maximum)
Expansion interfaces: 8
Operating temperature: -40°C to 85°C
Storage temperature: -55°C to 150°C
Power supply: 5V USB/ 3.7V lithium battery
Loading capacity: 800 milliamperes
Charging current: 400mA (maximum)
Expansion interfaces: 8
Operating temperature: -40°C to 85°C
Storage temperature: -55°C to 150°C
