The Grove LoRa-E5 communication module STM32WLE5JC features low power consumption and supports EU868 US915LoRaWAN
Limited time offer, ends 01/11 By EnYZME

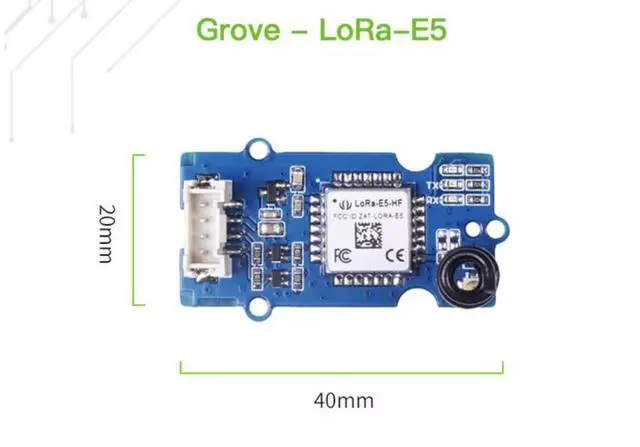

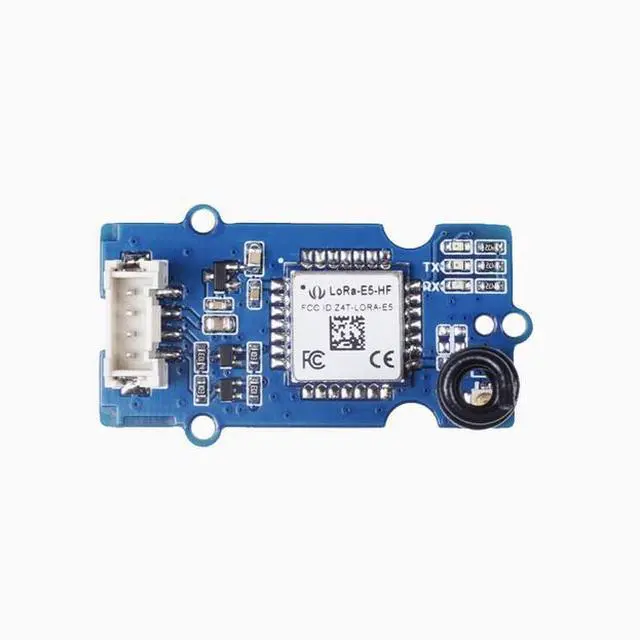

- The LoRa-E5 LORaWAN STM32WLE5JC module is the main functional component integrated into Grogrove LoRa-E5. This is a LoRaWAN module embedded with the ARM CortexM4 ultra-low power MCU core and LoRaSX126x. As the world's first combination of LoRa RF and MCU chips into a micro module, it supports (G)FSK, BPSK, (G)MSK and LoRa modulation. And it has passed FCC and CE certifications. Grove-LoRa-E5 features an extremely compact size, ultra-low power consumption, low cost and astonishing performance.

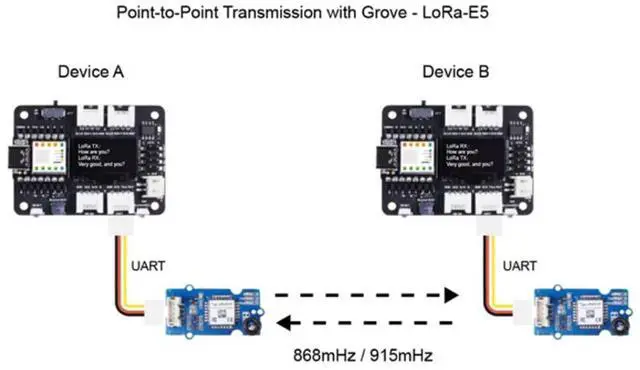

- Grove-lora-e5 can be easily plugged and played through the on-board Grove connector, endowing your development board with powerful functions such as an ultra-long transmission range, excellent performance and high efficiency. By connecting Grove-LoRa-E5 to your development board, your device can conveniently communicate and control LoRa-E5 through the UART connection via AT commands.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

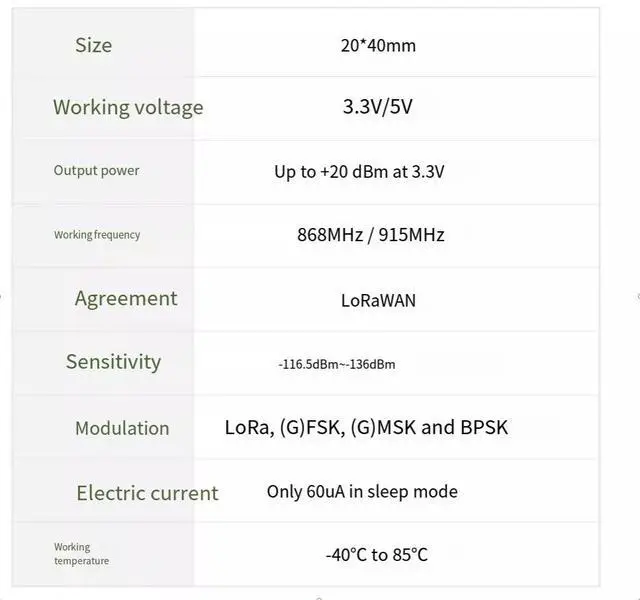

Grove LoRa-E5 possesses all the above outstanding features and will become an excellent choice for the development and testing of Internet of Things devices, as well as for long-distance and ultra-low power consumption Internet of Things scenarios such as smart agriculture, smart office, and smart industry. Designed in accordance with industrial standards, the operating temperature range is -40°C to 85° C, with high sensitivity ranging from - 116.5 dBm to 136dBm and power output from 10dBm to 22dBm.
The LoRa-E5 (STM32WLE5JC) embedded system supports the LoRaWAN protocol in the EU868/US915 frequency band, with an ultra-long transmission distance of up to 10km (the ideal value for open Spaces). It can be easily controlled through AT commands via UART connection
Use the plug-and-play Grove interface for rapid prototyping
Ultra-low power consumption and high performance
The LoRa-E5 (STM32WLE5JC) embedded system supports the LoRaWAN protocol in the EU868/US915 frequency band, with an ultra-long transmission distance of up to 10km (the ideal value for open Spaces). It can be easily controlled through AT commands via UART connection
Use the plug-and-play Grove interface for rapid prototyping
Ultra-low power consumption and high performance
