Waveshare TOF (Time of Flight) Laser Range Sensor TOF (Time of Flight) Laser Range Sensor Comes with Host Computer Assistant Software
Limited time offer, ends 01/05 By EnYZME
- The TOF Laser Range Sensor is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 5m measuring range, ±1.5cm accuracy, and 1mm resolution. It supports cascade ranging via UART or CAN bus, configurable data output including active output and query output.
- This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more..
- Configurable communication bus, providing two ports (identical electric connection) for cascade ranging
- Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID, therefore, the ranging data of all sensors can be acquired through one single communication bus.
- When using cascade ranging, three output modes are available: UART query, CAN query, and CAN active output
+
+
Overview
Specs
Reviews

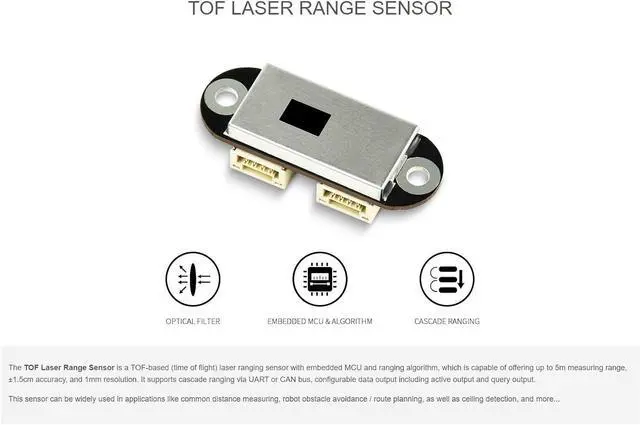

The TOF Laser Range Sensor is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 5m measuring range, ± 1.5 cm accuracy, and 1mm resolution. It supports cascade ranging via UART or CAN bus, configurable data output including active output and query output.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more..

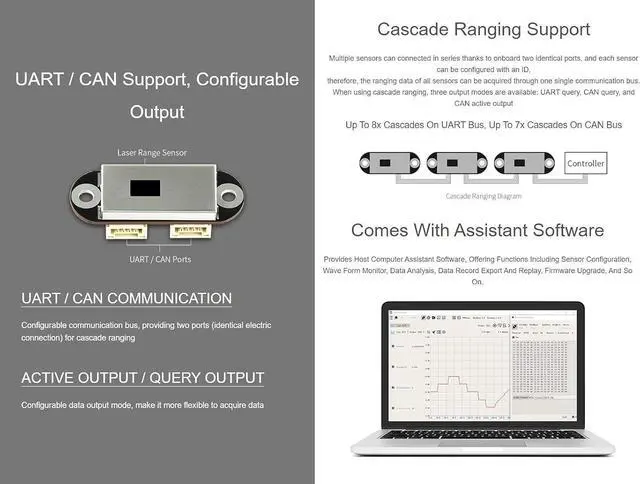

Configurable communication bus, providing two ports (identical electric connection) for cascade ranging
Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID, therefore, the ranging data of all sensors can be acquired through one single communication bus.
When using cascade ranging, three
output modes are available: UART query, CAN query, and CAN active output
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more..
Configurable communication bus, providing two ports (identical electric connection) for cascade ranging
Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID, therefore, the ranging data of all sensors can be acquired through one single communication bus.
When using cascade ranging, three
output modes are available: UART query, CAN query, and CAN active output
