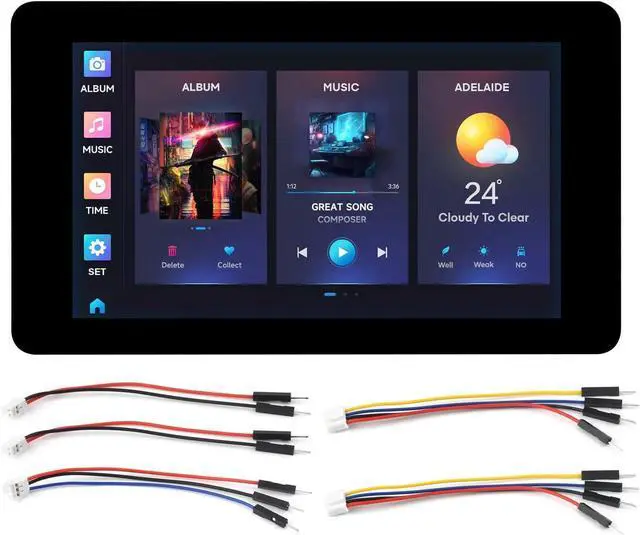

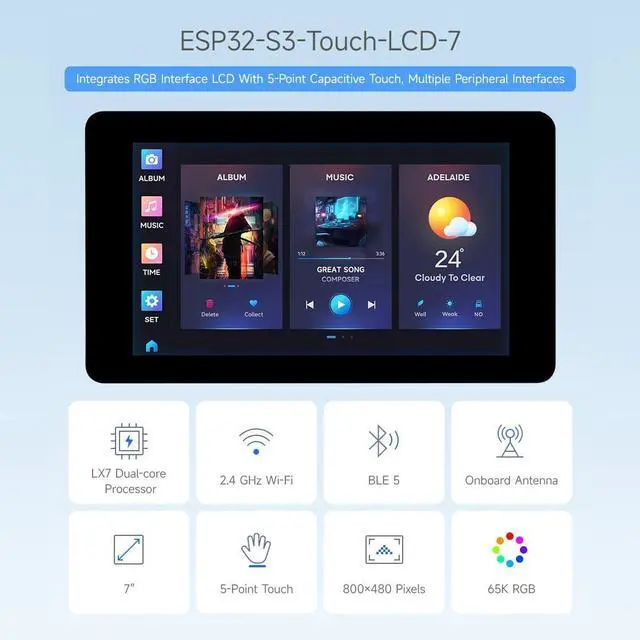

Waveshare ESP32-S3 7inch Capacitive Touch LCD Development Board, ESP32 with Display, 800×480, 5-Point Touch, Up to 240MHz Frequency, Supports WiFi & Bluetooth, with Onboard Antenna
Limited time offer, ends 01/09 By EnYZME
- [Dual-core Processor] Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- [Onboard Antenna] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
- [7inch Capacitive Touch Display] Onboard 7inch capacitive touch display, 800×480 resolution, 65K color. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
- [Various Peripheral Interfaces] Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
- [Supports Flexible Clock] Module power supply independent setting, and other control to realize low power consumption in different scenarios
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[Dual-core Processor] Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
[Onboard Antenna] Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
[7inch Capacitive Touch Display] Onboard 7inch capacitive touch display, 800×480 resolution, 65K color. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
[Various Peripheral Interfaces] Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
[Supports Flexible Clock] Module power supply independent setting, and other control to realize low power consumption in different scenarios
[Onboard Antenna] Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
[7inch Capacitive Touch Display] Onboard 7inch capacitive touch display, 800×480 resolution, 65K color. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
[Various Peripheral Interfaces] Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
[Supports Flexible Clock] Module power supply independent setting, and other control to realize low power consumption in different scenarios
