$27.99
Ships from China.
Meet Your Seller

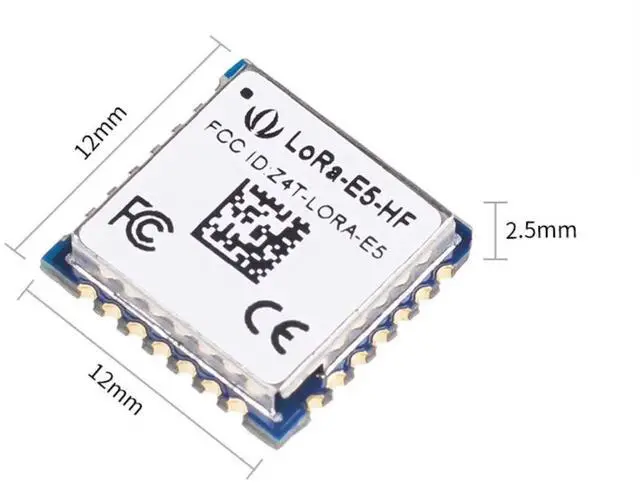

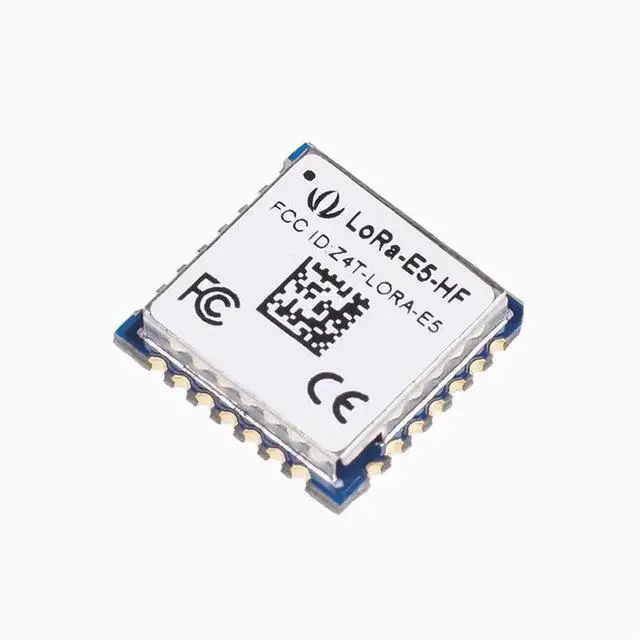

LoRa E5 module STM32WLE5JC Internet of Things wireless communication module
- Ultra-low power: As low as 2.1uA sleep current (WOR mode) High performance :TXOP=22dBm@868/915MHz; Sensitivity: -136.5dBm SF12, bandwidth: 125KHz
- Long-distance use :158dB link budget. Wireless connection: Embedded LoRaWAN® protocol,AT command, supports global lorawAN@ frequency planning
- Global compatibility: Wide frequency range; EU-
- 868 / US915 / AU915 / AS923 / KR920 / IN865 great flexibility: for in the development of the software module of the MCU users, MCU other GPI0 can be easily operation, including the UART, I2C, ADC, etc., these rich GPIO interface
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The lorA-E5 LoRaWAN module is designed with the ST system-on-package chip STM32WLE5JC, ARM Cortex M4 ultra-low power MCU and LoRa SX126X. It supports (G) FSK mode and LoRa. In LoRa® mode, bandwidths of 62.5 kHz, 125kHz, 250kHz and 500kHz can be used, which is suitable for the design of various iot nodes and supports EU868 and US915.
