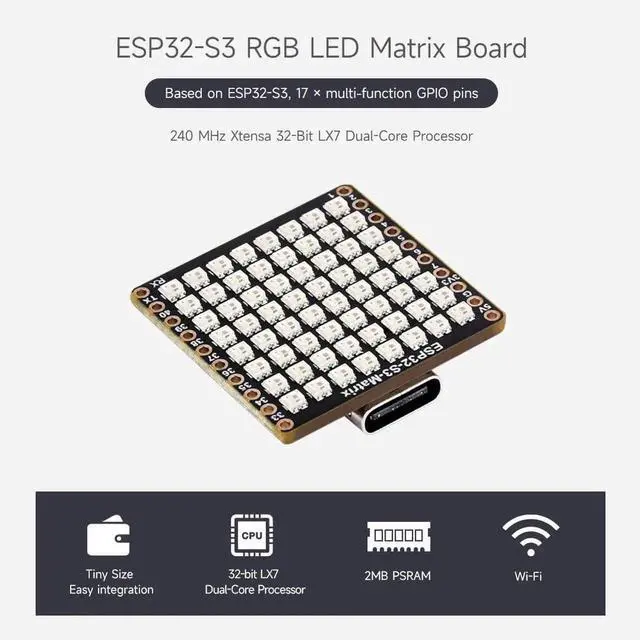

ESP32-S3-Matrix Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi and Bluetooth LE, ESP32 Development Board

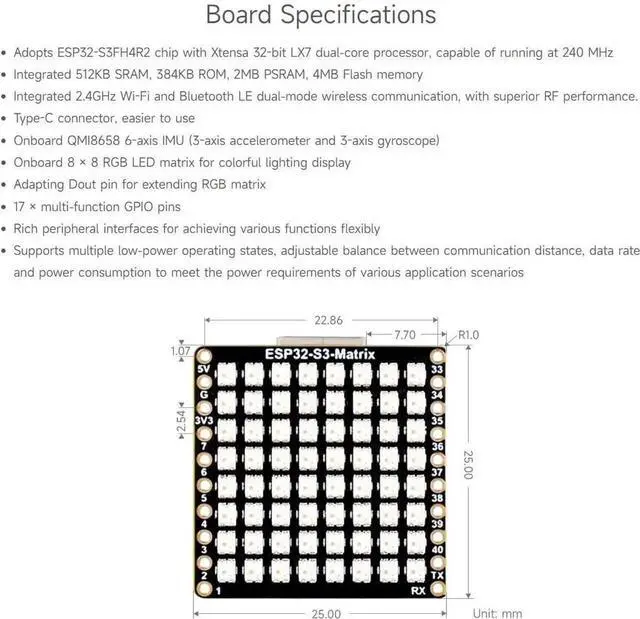

- Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory

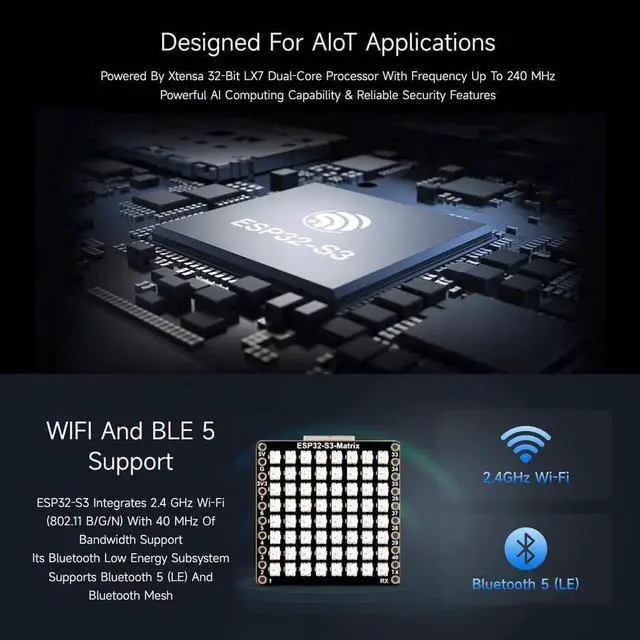

- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.

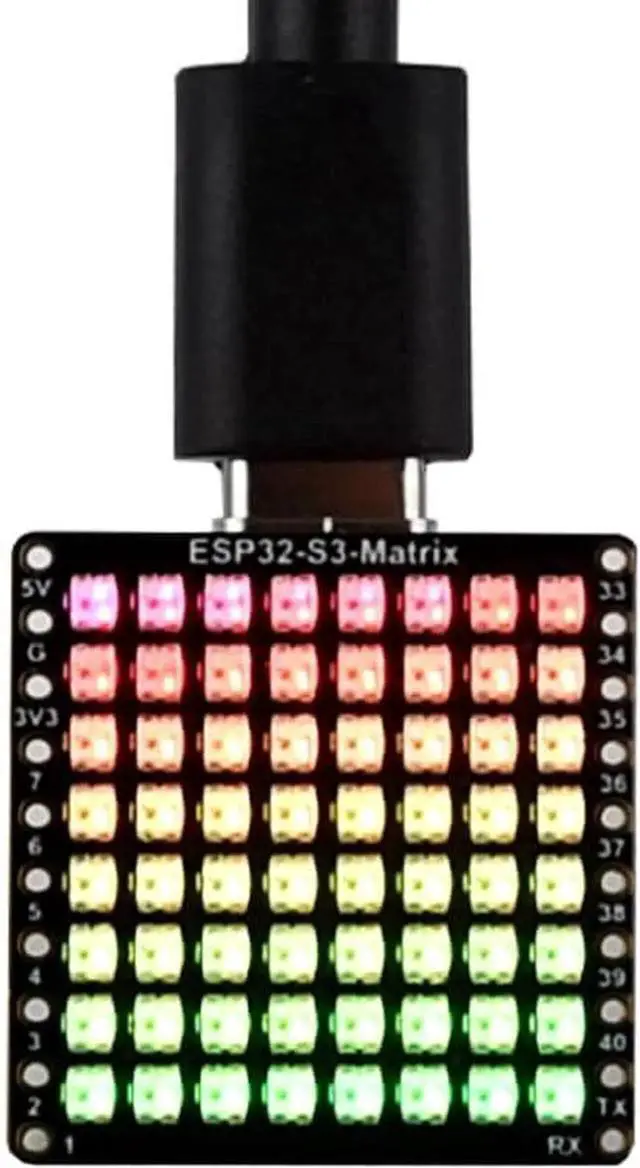

- Type-C connector, easier to use. Onboard QMI8658C attitude sensor. Onboard 8 × 8 RGB LED matrix for colorful lighting display
- Adapting Dout pin for extending RGB matrix. 17 × multi-function GPIO pins. Rich peripheral interfaces for achieving various functions flexibly
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
Integrated 2.4GH z Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
Type-C connector, easier to use. Onboard QMI8658C attitude sensor. Onboard 8 × 8 RGB LED matrix for colorful lighting display
Adapting Dout pin for extending RGB matrix. 17 × multi-function GPIO pins. Rich peripheral interfaces for achieving various functions flexibly
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
