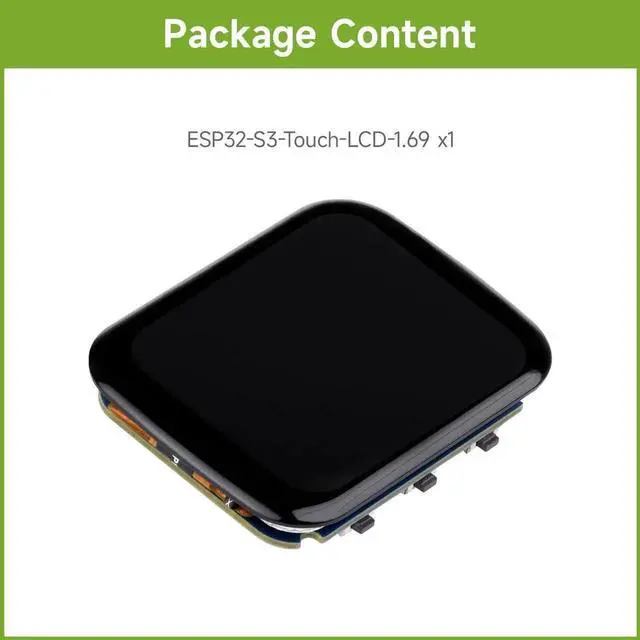

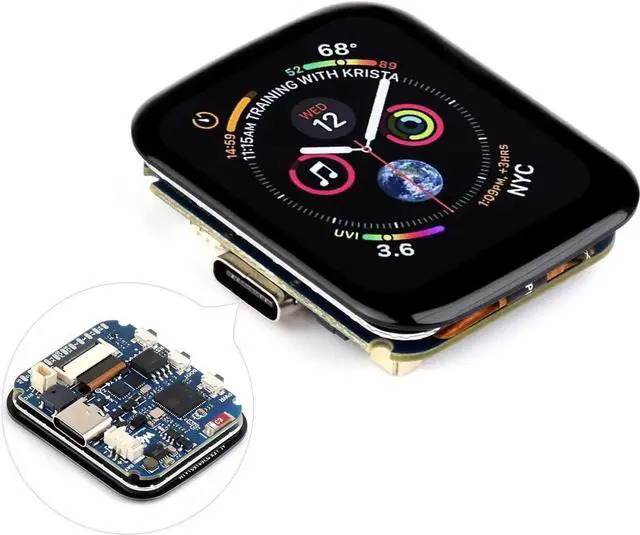

ESP32-S3 1.69inch Touch Display Development Board, 240×280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor

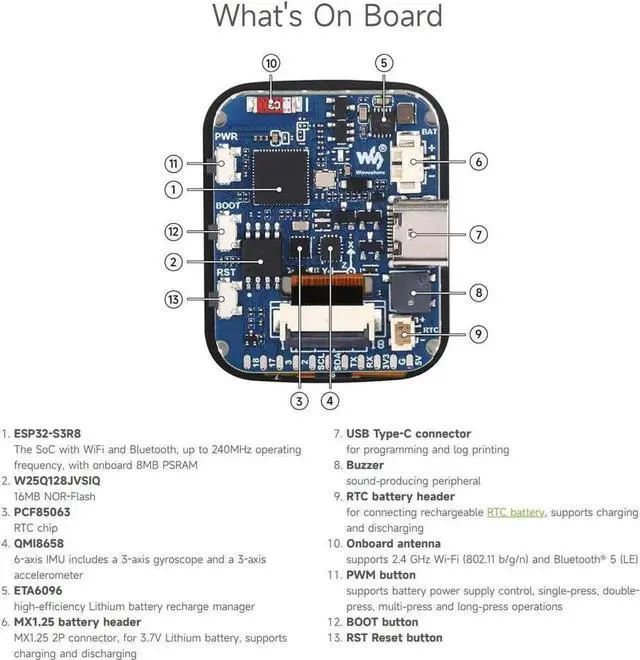

- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use
- Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
- Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging Supports flexible clock, module power supply independent setting, and other controls to realize low power consumpt
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use

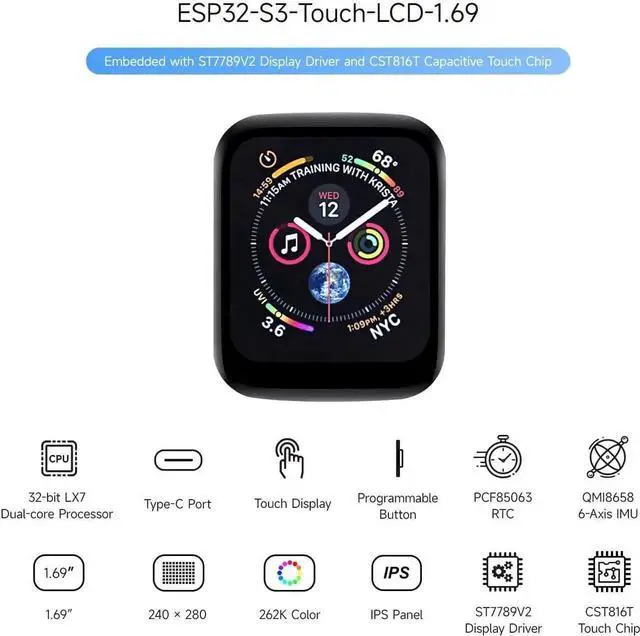

Onboard 1.69 inch 240×280 pixels 262K capacitive touch display for clear color pictures Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH 1.0 RTC battery header (supports charging) for RTC function requirement
Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
High touch screen transmittance, fast response and long lifetime
