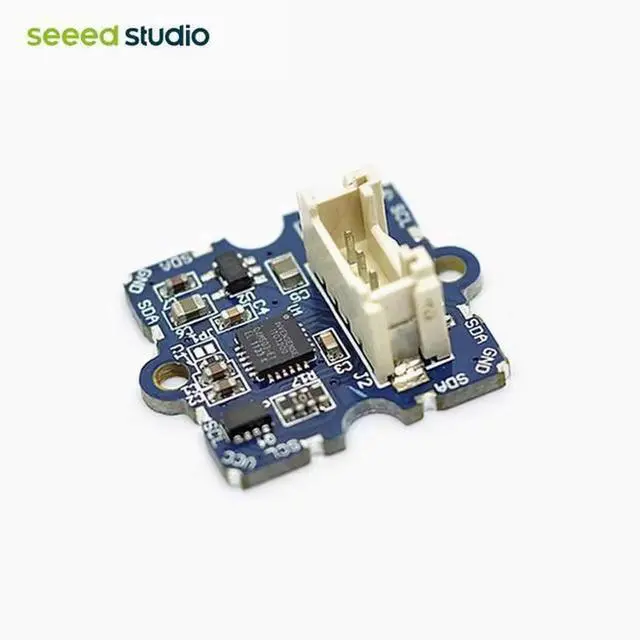

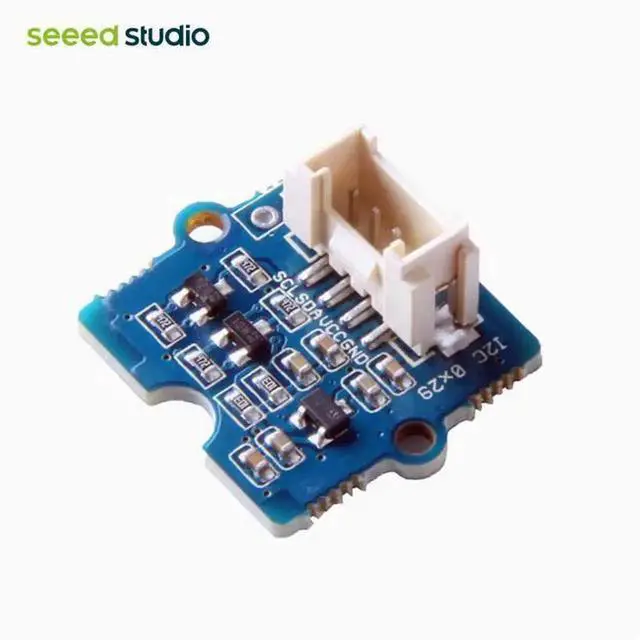

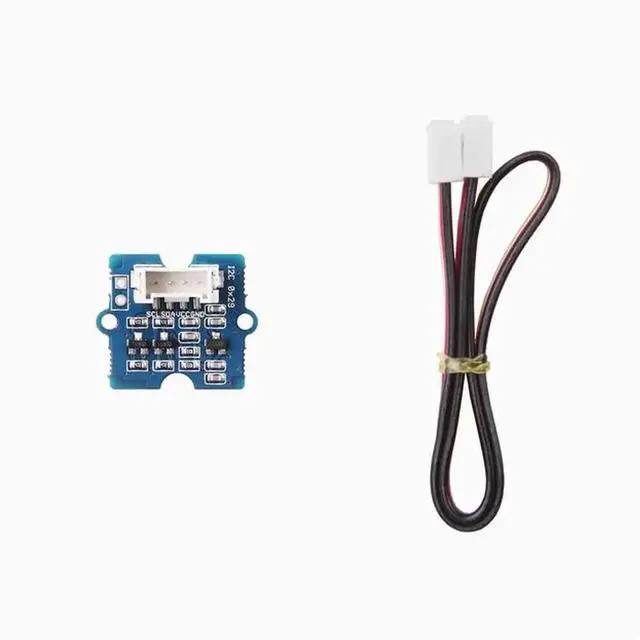

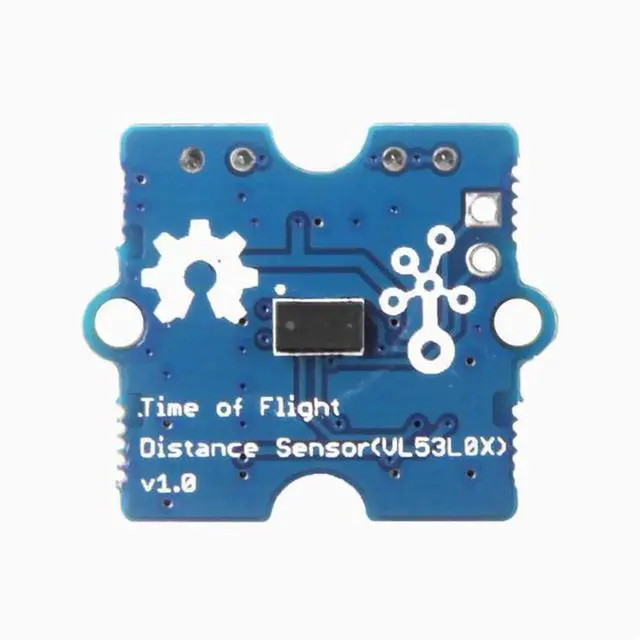

Grove Time-of-flight Distance Sensor ToF laser Monitoring Obstacle Gesture Recognition (VL53L0X)
- Fully integrated micro modules
- 940nm laser VCSELVCSEL driver
- The distance sensor adopts an advanced embedded microcontroller
- Fast and accurate distance measurement
- The absolute measurement range can reach up to 2 meters
- The scope of the report is independent of the target reflectance
- Advanced embedded optical crosstalk compensation simplifies the selection of glass covers
- Eye safety
- Class 1 laser equipment complies with the new standard IEC60825-1:2014- 3rd Edition
- Easy to integrate
- Single power supply
- 12C interface, used for device control and data transmission Xshutdown(reset) and interrupt GPI0 programmable 12C address
- Dimensions: 20mmx20mmx11mm \ nWeight: G.W 7.8g \ nG.W 1.9g
- Battery elimination
- Working voltage: 3.3v /5v
- Operating temperature: -20 to 70
- The recommended measurement distance is 30mm-1000mm
- Resolution: 1 mm, infrared emitter: 940nm, default IC address: 0x52
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fully integrated micro modules
940nm laser VCSELVCSEL driver
The distance sensor adopts an advanced embedded microcontroller
Fast and accurate distance measurement
The absolute measurement range can reach up to 2 meters
The scope of the report is independent of the target reflectance
Advanced embedded optical crosstalk compensation simplifies the selection of glass covers
Eye safety
Class 1 laser equipment complies with the new standard IEC60825- 1:2014 - 3rd Edition
Easy to integrate
Single power supply
12C interface, used for device control and data transmission Xshutdown (reset) and interrupt GPI0 programmable 12C address

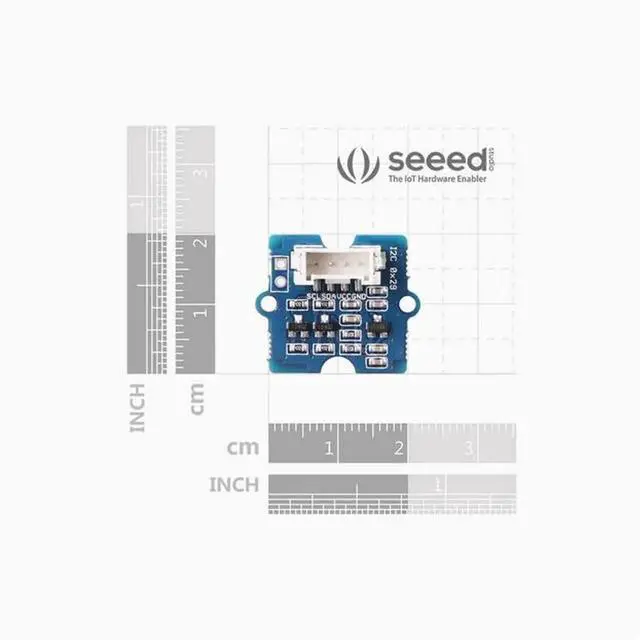

Dimensions: 20mmx20mmx11mm
\ nWeight: G. W 7.8 g \ nG. W 1.9 g
Battery elimination
Working voltage: 3.3 v /5v
Operating temperature: -20 to 70
The recommended measurement distance is 30mm-1000mm
Resolution: 1 mm, infrared
emitter: 940nm, default
IC address: 0x52
