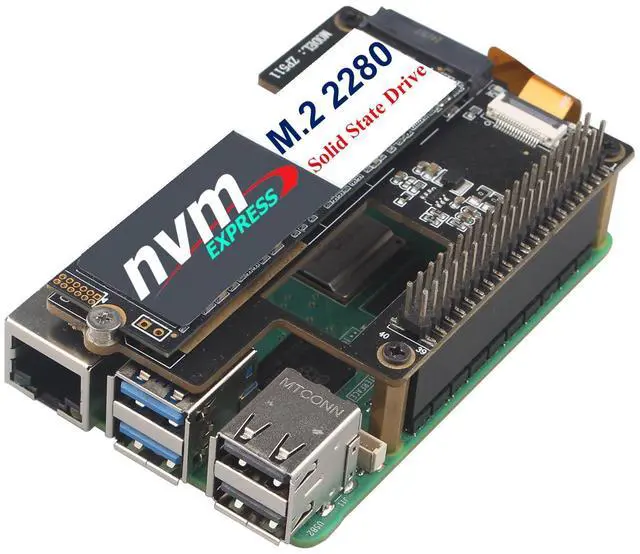

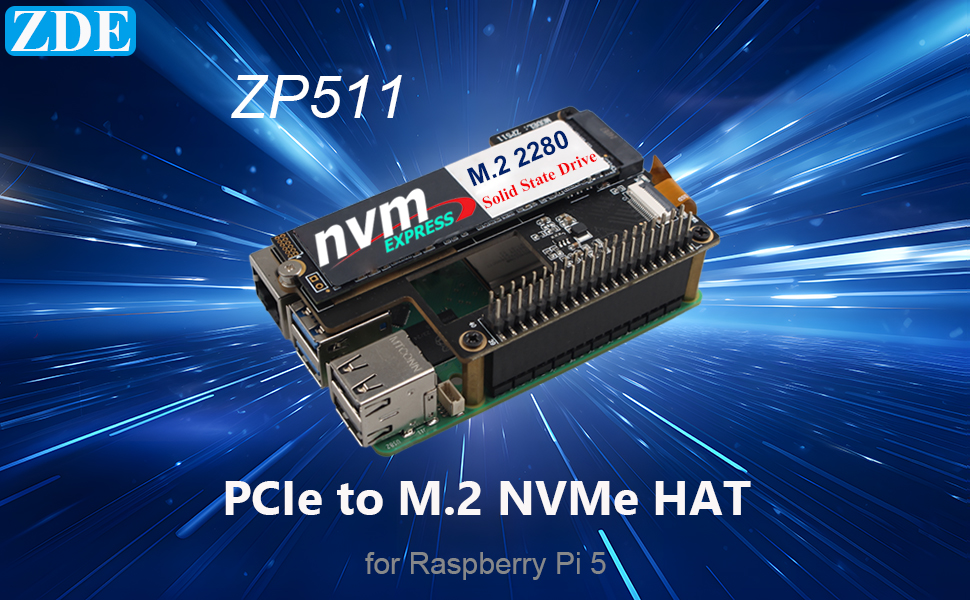

    ZDE ZP511 PCIe to M.2 Key M NVMe HAT SSD Hard Drive Adapter Board PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 SSD 2230 2242 2280

    Be the first to review this product...
    • The ZP511 HAT is an M.2 Key-M NVMe SSD Expansion Board for the Raspberry Pi 5 that uses the new PCIe interface of the Raspberry Pi 5 to utilize the M.2 NVMe SSDs for ultra-fast booting and fast data transmission. Supports Gen2 and Gen3 modes.

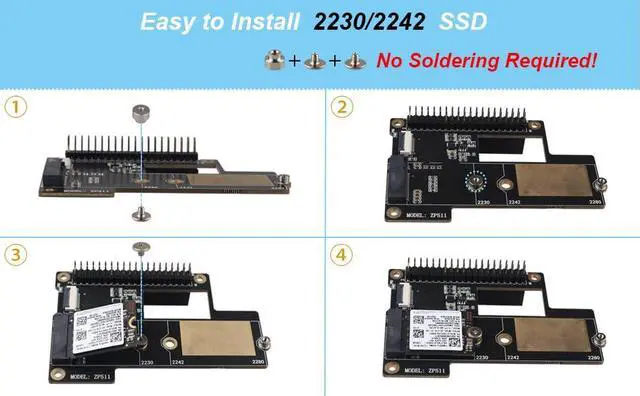

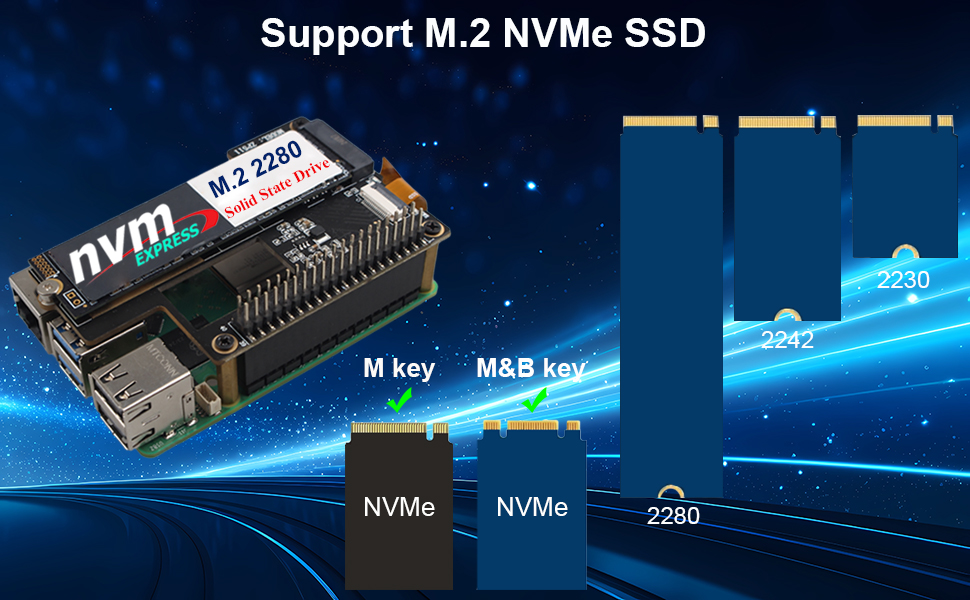

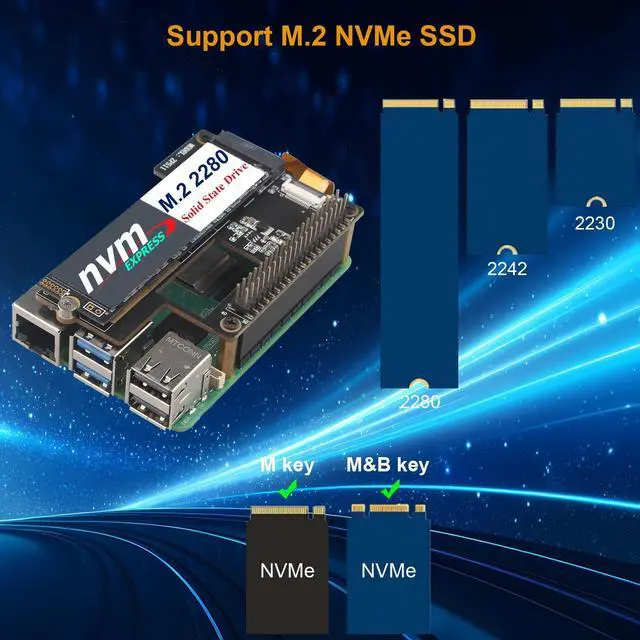

    • ZP511 M.2 NVMe to PCIe Adapter Board supports the installation of M.2 KEY-M NVMe SSD in 2230/2242/2280 length (SSD is not included). Comes with extra screws kit for 2230/2242 SSD installation, no soldering required.

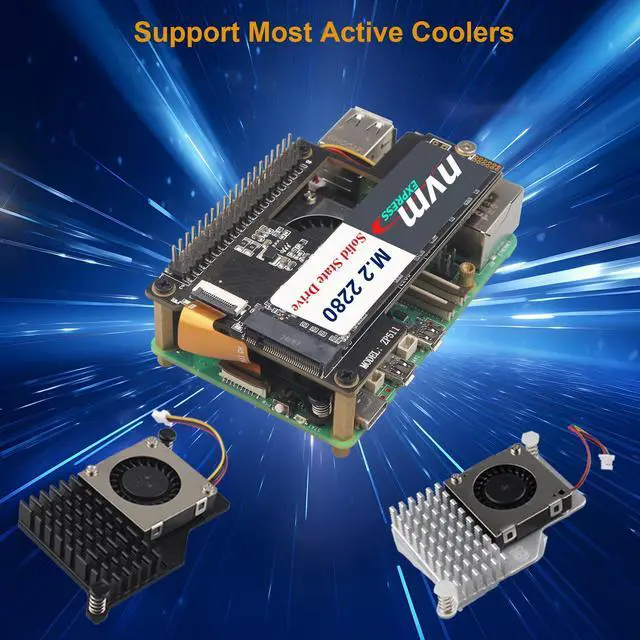

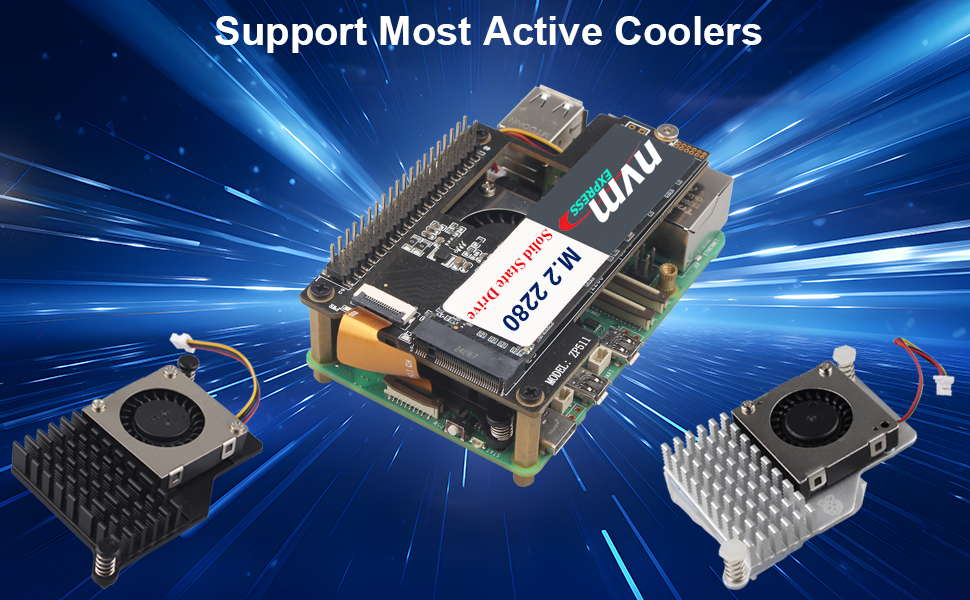

    • This PCIe to M.2 NVMe adapter supports the installation of official Raspberry Pi 5 Active Cooler (Not Included) and there is a reserved airflow vent for the cooling fan, providing excellent heatsink for Raspberry Pi 5 and SSD.
    • How to Power: Power the ZP511 shield directly from the PCIe FPC ribbon cable. Also, with 40pin header, the board can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.
    • Great Accessories for Raspberry Pi 5: ZP511 PCIe Peripheral Board is compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5).

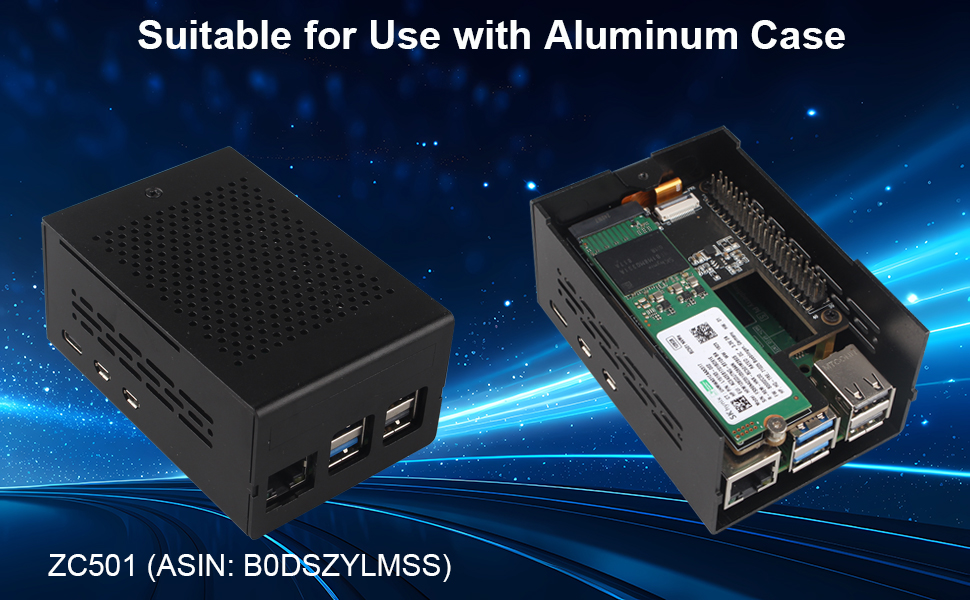

    • This ZP511 top HAT is suitable for use with aluminum case. Only for aluminum enclosure, please refer to ZC501 (ASIN: B0DSZYLMSS); for Active Cooler, please refer to ZP536(ASIN: B0DSZYHNF5); for Aluminum Case with Active Cooler, please refer to ZP537(ASIN: B0DSZVN5YX).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    ZP511 1
    2
    3
    4
    5
    6
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/1f354b90-9dc5-4057-ad91-b78652c47bae.__CR0,0,600,1200_PT0_SX150_V1___.jpg

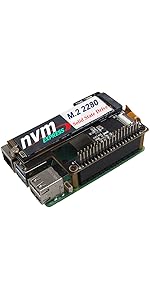

    ZP511
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/7598b13e-6d81-4245-b657-32d85bc6ec48.__AC_SR150,300___.jpg
    ZP517A
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/cdaf3031-0047-4437-9acf-743ef8695f09.__CR0,0,300,600_PT0_SX150_V1___.jpg
    ZP519
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/fba4ba42-3db1-468b-a8df-8f85c83a38df.__CR0,0,300,600_PT0_SX150_V1___.jpg
    ZP518
    Customer Reviews ————
    Price ————
    Supported M.2 NVMe SSD Length 2230/2242/2280 2230/2242/2260/2280 2230/2242/2260/2280 2230/2242
    Compatible with Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5
    Matching Case ZC501(ASIN: B0DSZYLMSS) ZC501(ASIN: B0DSZYLMSS) ZC502(ASIN: B0F2995JCY) / ZC501(ASIN: B0DSZYLMSS)
    Previous page
    2. https://m.media-amazon.com/images/S/aplus-media-library-service-media/1e45ea96-2107-46d7-b6e4-11459c76865c.__CR0,135,500,230_PT0_SX315_V1___.jpg

      ZDE

      ZDE has been focusing on the research and development of innovative products for a long time.

      ZDEaims to sell great products, provide the best service, and be a valuable store. We are devoted to developing more and more premium products in the future.

    3. 1
      2
      3
      1

      PCIe to WIFI/Ethernet HAT

    4. 1
      2
      3
      4

      PCIe to NVMe HAT

    5. 1
      ZDE
      3
      4

      PoE+ HAT

    6. 1
      2
      3
      4

      Case for Raspberry Pi 5

    7. 1
      2
      3
      4

      Heatsinks

    8. 1
      2
      3
      4

      PCIe FPC Cable

    Next page
    ZP511 1
    2
    3
    4
    5
    6
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/1f354b90-9dc5-4057-ad91-b78652c47bae.__CR0,0,600,1200_PT0_SX150_V1___.jpg
    ZP511

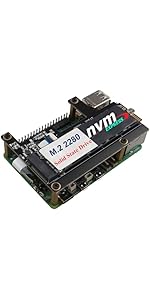

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/7598b13e-6d81-4245-b657-32d85bc6ec48.__AC_SR150,300___.jpg
    ZP517A
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/cdaf3031-0047-4437-9acf-743ef8695f09.__CR0,0,300,600_PT0_SX150_V1___.jpg

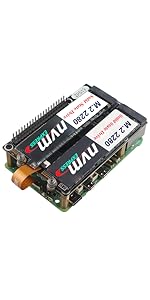

    ZP519

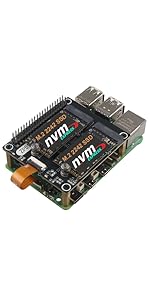

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/fba4ba42-3db1-468b-a8df-8f85c83a38df.__CR0,0,300,600_PT0_SX150_V1___.jpg
    ZP518
    Customer Reviews ————
    Price ————
    Supported M.2 NVMe SSD Length 2230/2242/2280 2230/2242/2260/2280 2230/2242/2260/2280 2230/2242
    Compatible with Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5
    Matching Case ZC501(ASIN: B0DSZYLMSS) ZC501(ASIN: B0DSZYLMSS) ZC502(ASIN: B0F2995JCY) / ZC501(ASIN: B0DSZYLMSS)
    1. https://m.media-amazon.com/images/S/aplus-media-library-service-media/1e45ea96-2107-46d7-b6e4-11459c76865c.__CR0,135,500,230_PT0_SX315_V1___.jpg

      ZDE

      ZDE has been focusing on the research and development of innovative products for a long time.

      ZDEaims to sell great products, provide the best service, and be a valuable store. We are devoted to developing more and more premium products in the future.

    2. 1
      2
      3
      1

      PCIe to WIFI/Ethernet HAT

    3. 1
      2
      3
      4

      PCIe to NVMe HAT

    4. 1
      ZDE
      3
      4

      PoE+ HAT

    5. 1
      2
      3
      4

      Case for Raspberry Pi 5

    6. 1
      2
      3
      4

      Heatsinks

    7. 1
      2
      3
      4

      PCIe FPC Cable

    Features:
    Model: ZP511
    ZDE ZP511 M.2 NVMe to PCIe Adapter Board is designed for the latest Raspberry Pi 5, which supports the installation of M.2 KEY-M NVMe SSD in 2230/2242/2280 length.
    Supports installation of official active coolers for heat dissipation. Reserved airflow vent for the cooling fan, better cooling effect for Raspberry Pi 5 and SSD.
    Equipped with PWR LED Indicator and ACT Status LED Indicator, practical design for real-time monitoring of the working status for more stable operation.
    How to Power: With 40pin header, the board can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.
    ZP511 PCIe Peripheral Board is only compatible with Raspberry Pi 5 8GB / 4GB / 2GB / 1GB computer (NOT include Raspberry Pi 5).
    The ZP511 hardware has no limit on NVMe SSD capacity, which depends on the Raspberry Pi OS.
    We dont recommend to use NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility.
    New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

    Note:

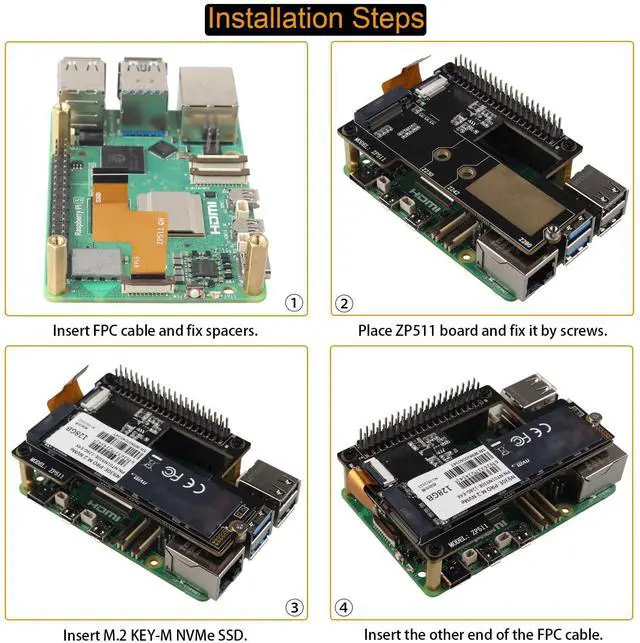

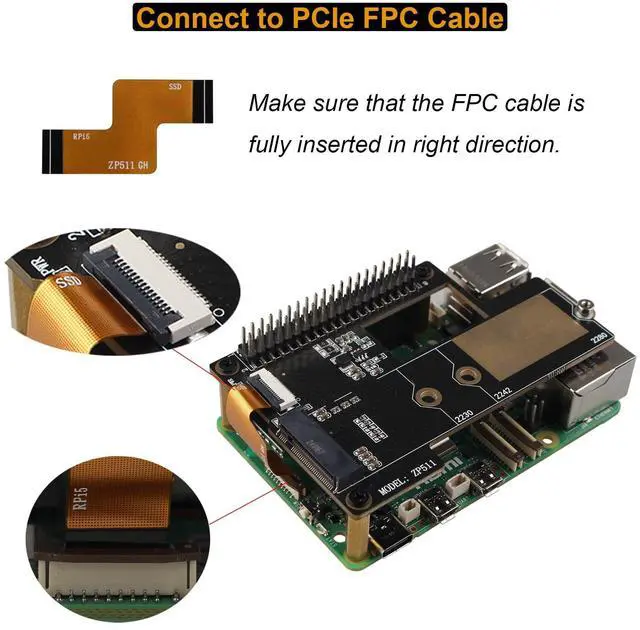

    Make sure that the FPC cable is fully inserted in right direction.
    The PCIe Peripheral Board is compatible with M.2 KEY-M NVMe SSDs, not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices.

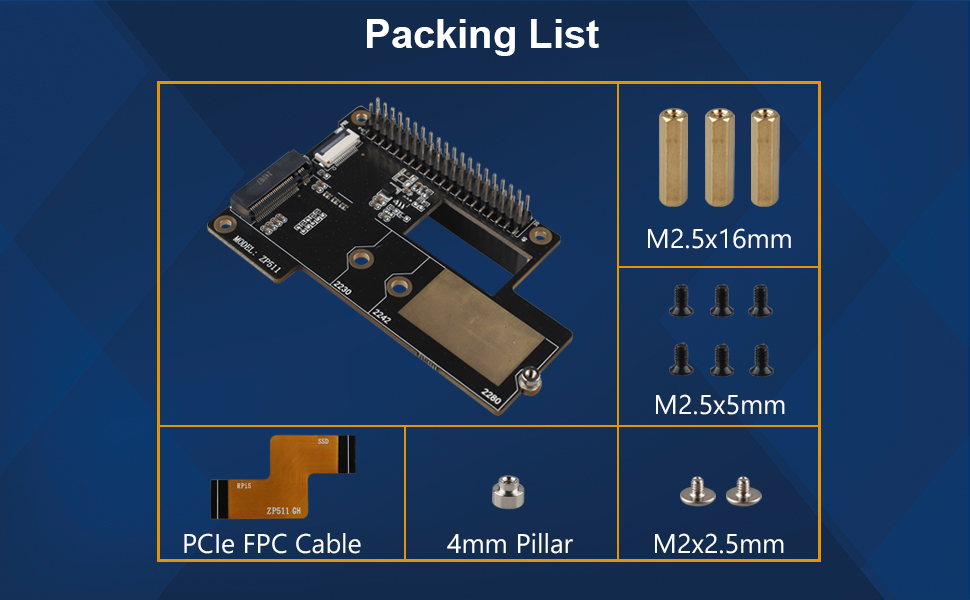

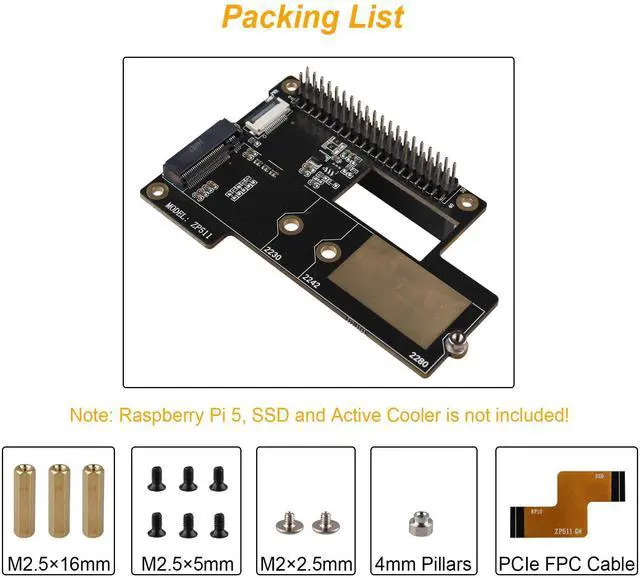

    Packing List:
    1 x ZP511 PCIe Peripheral Board
    1 x PCIe FPC Cable
    1 x Screws Pack Accessories
    Note: Raspberry Pi 5, M.2 NVME SSD and active cooler is not included.


    Product information

    Brand ZDE
    Hardware Interface PCI Express x1
    Product Dimensions 3.35"L x 2.2"W x 0.94"H
    Style Classic
    Item Weight 21 Grams
    Item model number ZP511
    Operating System Raspberry Pi OS Bookworm
    Item Dimensions LxWxH 3.35 x 2.2 x 0.94 inches
    Manufacturer ZDE
    Date First Available March 27, 2024
