    2.13inch E-Ink Display HAT V4 Version Compatible with Raspberry Pi Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, 250x122 Resolution SPI Interface Supports Partial Refresh

    Be the first to review this product...
    • IMPORTANT: Rev2.1 is the version of the driver board, which is independent of the screen version. Currently, there is only Rev2.1; QC target V3 and V4 are screen versions, and V4 is currently being shipped. V4 version is fully compatible with V3; and it provides the demo that can realize a fast refreshing function.

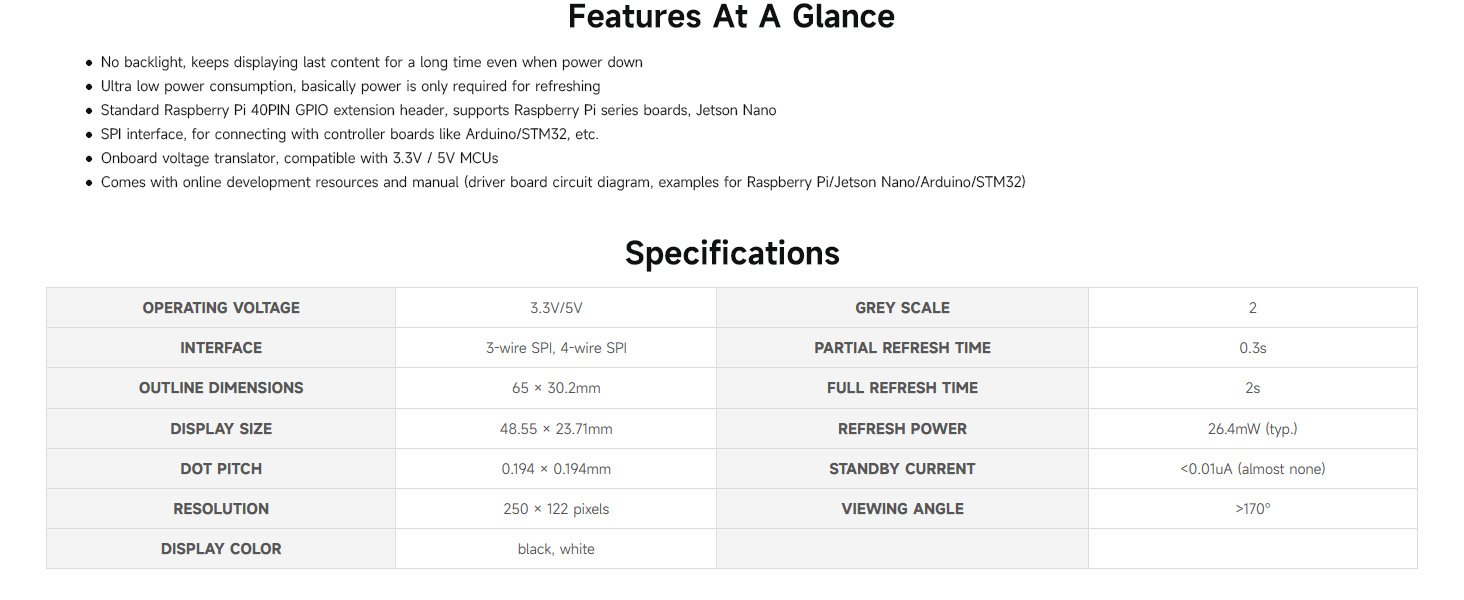

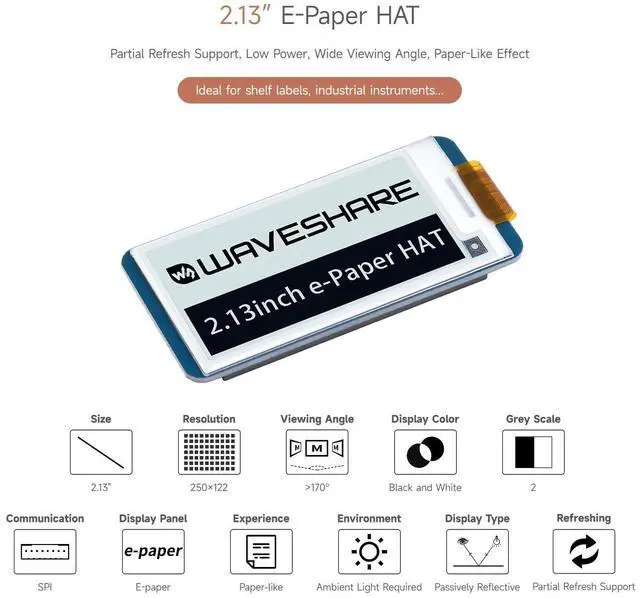

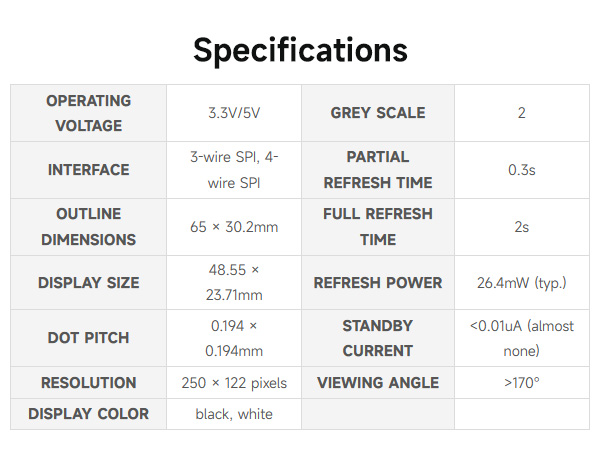

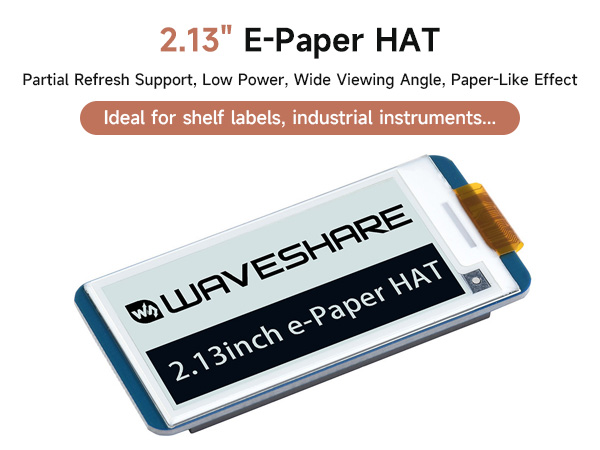

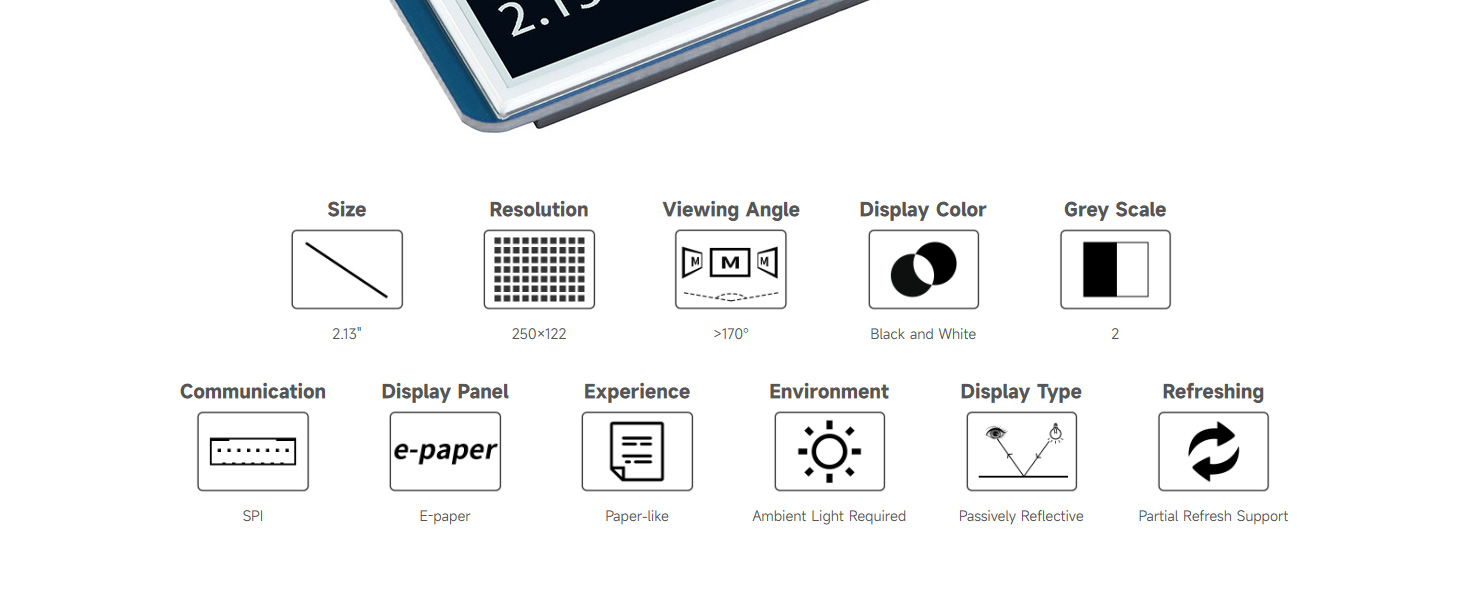

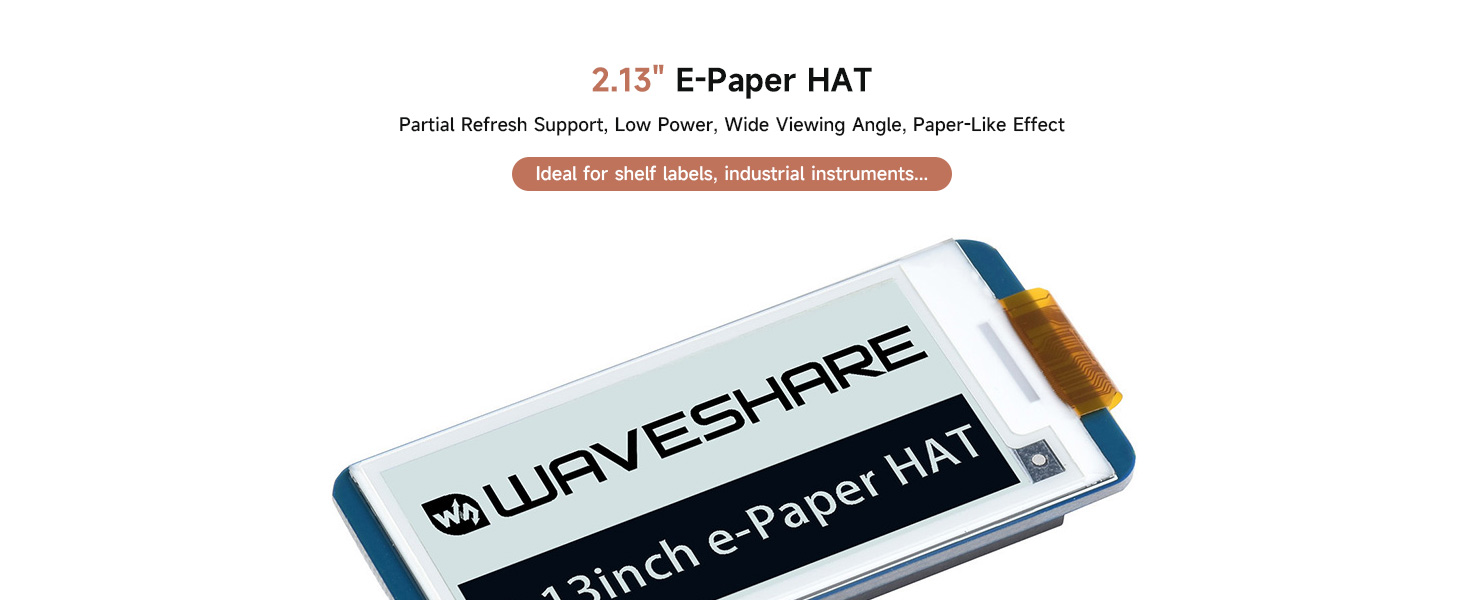

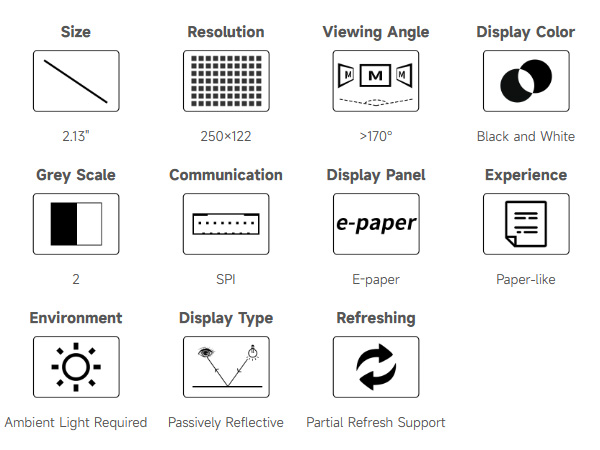

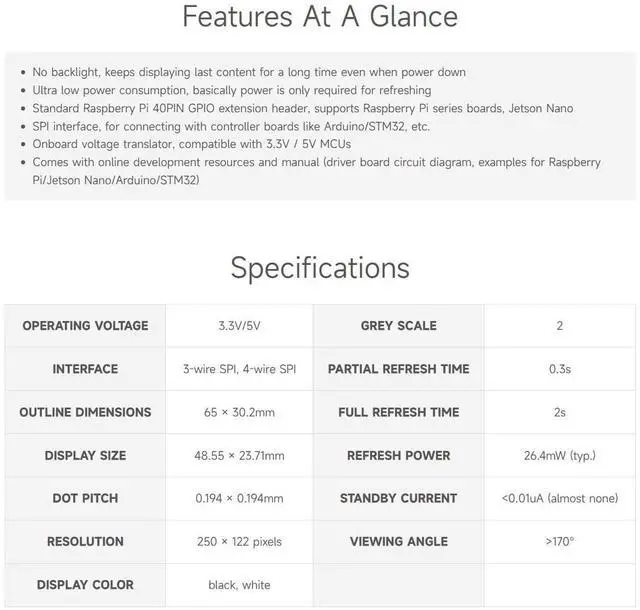

    • This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
    • Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
    • No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing

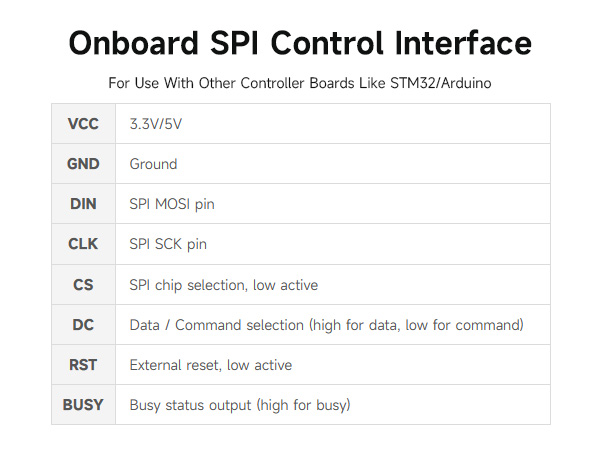

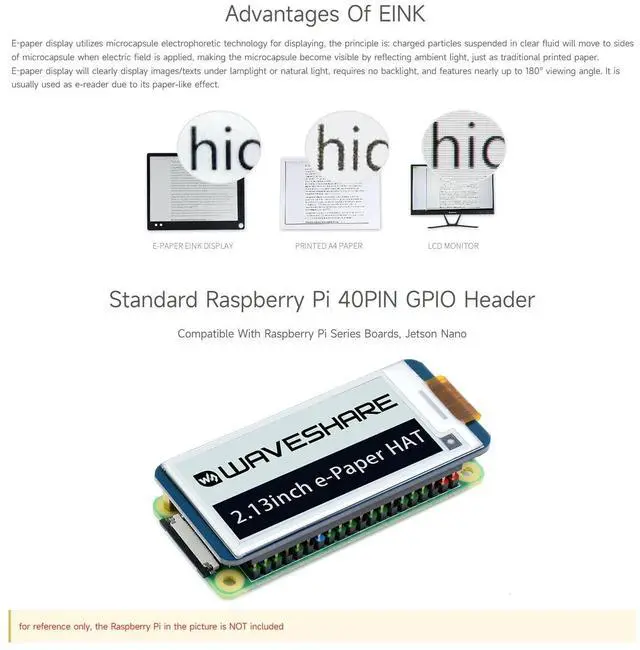

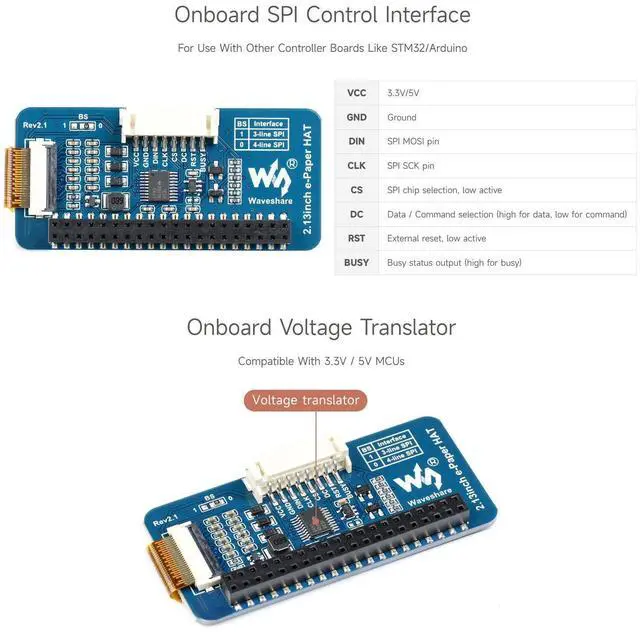

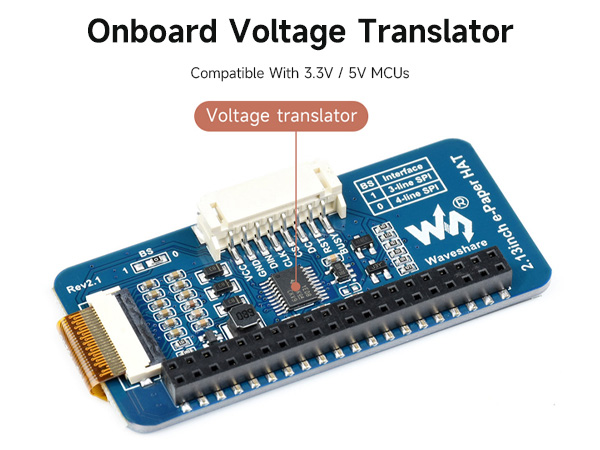

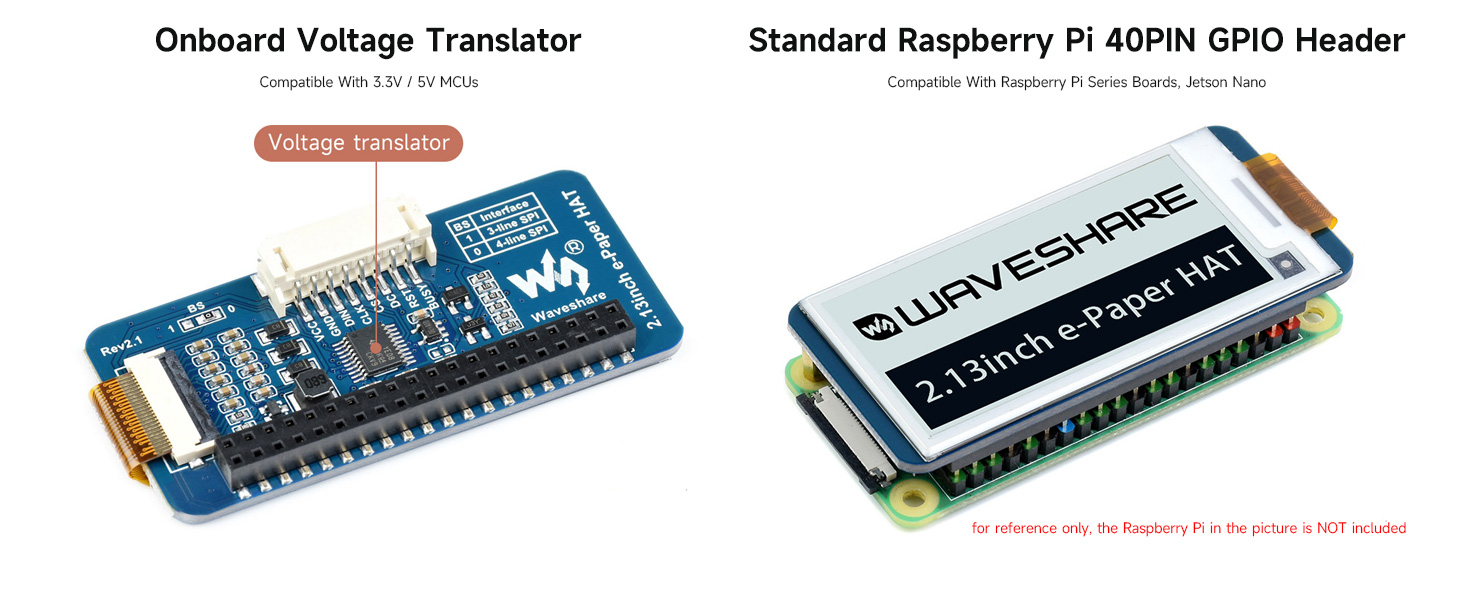

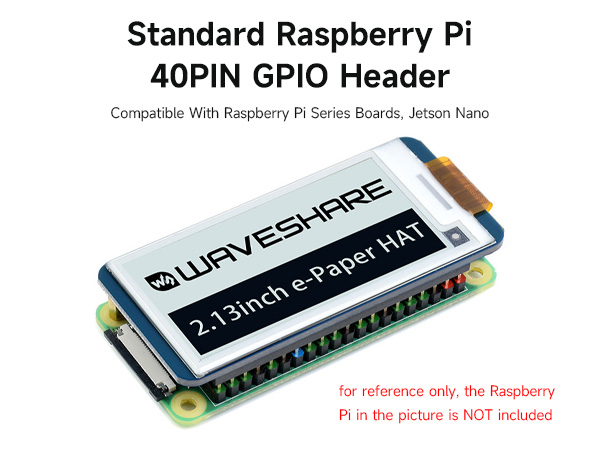

    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs
    • Provide online user manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32), please check the manual carefully before using!
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    2.13inch e-Paper HAT
    2.13inch e-Paper HAT
    2.13inch e-Paper HAT
    13.3inch e-Paper HAT (K)-PC-4
    2.13inch e-Paper HAT

    Waveshare 2.13inch e-Paper Series

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/57bf8c66-751e-4ae2-98f9-b8d1c4352a85.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/dc024129-fbc1-4fa6-a2a6-d10da770241a.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT (B)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/b3b2af72-3ed8-42b3-be3e-7f3ca098ecc0.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT (D)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/a0f34dff-518d-4828-be02-027639ddd90c.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT (G)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/1628bcc4-65bf-495b-977b-1ed886385cf5.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch Touch e-Paper

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/5871e172-fb5d-4ae3-bdcb-803af491400b.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch Touch(with case)

    Customer Reviews
    		—————
    —
    Price
    		—— — —— —
    COLORS
    		black, white red, black, white black, white red, yellow, black, white black, white black, white
    GREY SCALE
    		2 2 2 2 2 2
    RESOLUTION
    		250×122 250×122 212×104 250×122 250×122 250×122
    DISPLAY SIZE (MM)
    		48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70

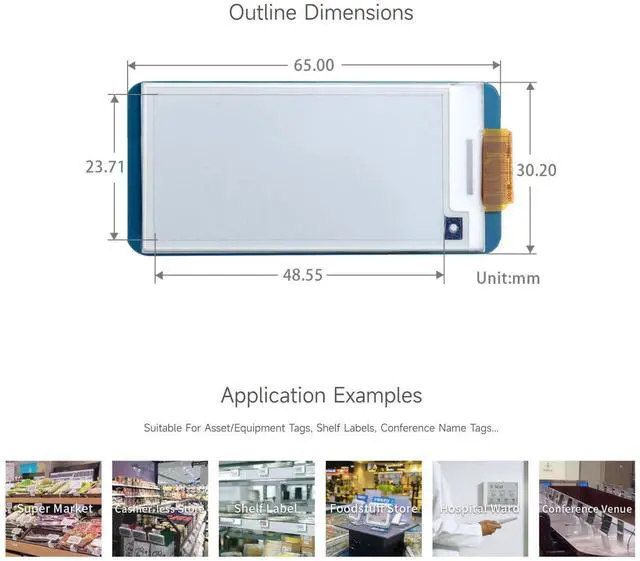

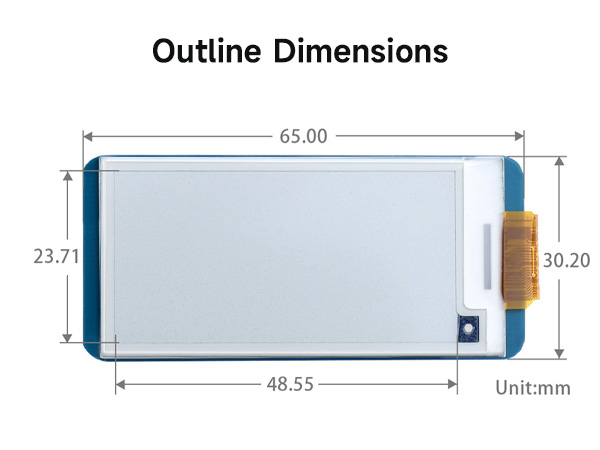

    OUTLINE DIMENSION (MM)
    		65.0 × 30.2 65.0 × 30.2 59.2 × 29.2 65.0 × 30.2 69.15 × 38.90 72.20 × 41.90
    FULL REFRESH TIME (S)
    		2 15 2 25 2 2
    PARTIAL REFRESH1
    		? ? ? ? ? ?
    PI HEAD-ER2
    		? ? ? ? ? ?
    2.13inch e-Paper HAT
    2.13inch e-Paper HAT
    2.13inch e-Paper HAT
    2.13inch e-Paper HAT
    2.13inch e-Paper HAT

    Waveshare 2.13inch e-Paper Series

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/57bf8c66-751e-4ae2-98f9-b8d1c4352a85.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/dc024129-fbc1-4fa6-a2a6-d10da770241a.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT (B)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/b3b2af72-3ed8-42b3-be3e-7f3ca098ecc0.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT (D)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/a0f34dff-518d-4828-be02-027639ddd90c.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch e-Paper HAT (G)

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/1628bcc4-65bf-495b-977b-1ed886385cf5.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch Touch e-Paper

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/5871e172-fb5d-4ae3-bdcb-803af491400b.__CR0,0,200,225_PT0_SX200_V1___.jpg

    2.13inch Touch(with case)

    Customer Reviews
    —————
    —
    Price
    —— — —— —
    COLORS
    black, white red, black, white black, white red, yellow, black, white black, white black, white
    GREY SCALE
    2 2 2 2 2 2
    RESOLUTION
    250×122 250×122 212×104 250×122 250×122 250×122
    DISPLAY SIZE (MM)
    48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70
    OUTLINE DIMENSION (MM)
    65.0 × 30.2 65.0 × 30.2 59.2 × 29.2 65.0 × 30.2 69.15 × 38.90 72.20 × 41.90
    FULL REFRESH TIME (S)
    2 15 2 25 2 2
    PARTIAL REFRESH1
    ? ? ? ? ? ?
    PI HEAD-ER2
    ? ? ? ? ? ?

    Product information

    Standing screen display size 2.13 Inches
    Wireless Type Infrared
    Number of USB 2.0 Ports 2
    Brand waveshare
    Item model number 2.13inch e-Paper HAT
    Item Weight 0.352 ounces
    Product Dimensions 7.09 x 3.94 x 3.54 inches
    Item Dimensions LxWxH 7.09 x 3.94 x 3.54 inches
    Color 2.13inch e-Paper HAT
    Manufacturer Waveshare
    Is Discontinued By Manufacturer No
    Date First Available May 18, 2017
