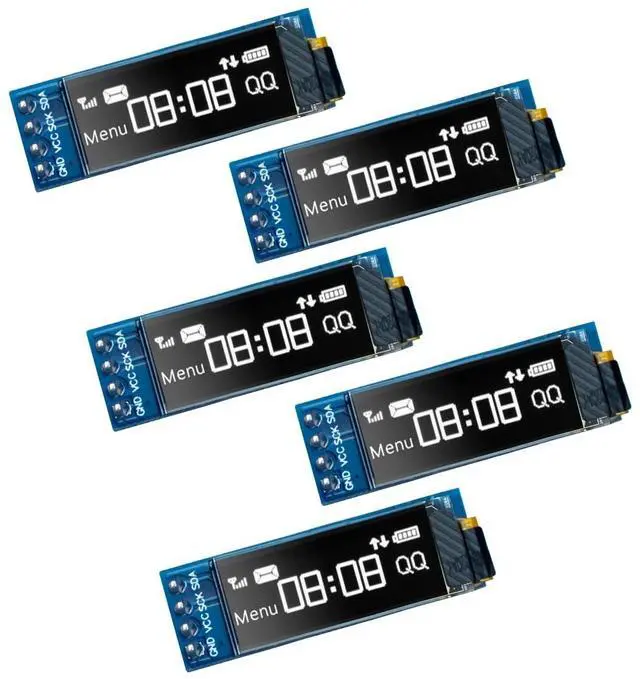

5 Pcs 0.91 Inch I2C OLED Display Module IIC OLED Screen DC 3.3V~5V Compatible with Arduino Raspberry PI (White Display Color)
- Resolution: 128 x 32 0.91 Inch OLED display, no need backlight, self-illumination, Display Color: White.
- Low power consumptio; SSD 1306 oled display; I2C oled display, IIC (I2C communications) simplifies connection.
- Compatible with Arduino nano, R3 board, Raspberry Pi 4B/3B+/3B/2B/Zero,ESP8266, ESP32, STM32, etc.
- Working power:3.3-5v, Operating temperature: -40 - 85 .
- What will you get: there are 5 pieces OLED display module OLED display module for you.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Size: 0.91 inch OLED
Resolution: 128 x 32
Size: 38 x 12 mm
Interface type: IIC interface
Display color: blue or white

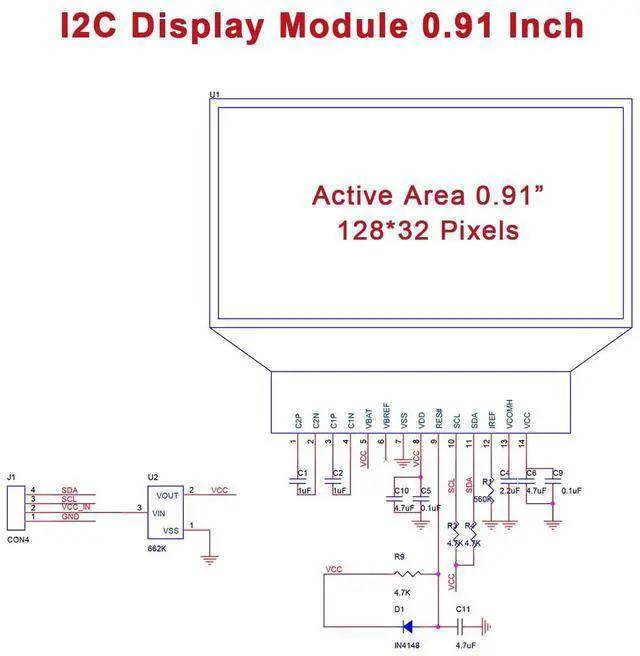

Pin description:
GND: Power Ground
VCC: Power + (DC 3.3 - 5v)
Operating temperature: -40 ~ 85 celsius degree
SCL: clock line
SDA: data line
Package includes:
5 x I2C OLED display module
