4.0'' 320x480 Touch Screen with ESP32-32E ESP32 Display with WiFi+BT, ST7796S Driver LCD TFT Screen Module for Arduino IoT
- Powerful ESP32-32E Core Powered by the ESP32-D0WD-V3 dual-core 32-bit LX6 processor with a maximum clock speed of 240MHz, this module delivers high performance and stable connectivity with built-in WiFi (2.4GHz, 802.11b/g/n) and Bluetooth 4.2 (BR/EDR + LE). Ideal for IoT, smart devices, and embedded projects.
- Vibrant 4.0-Inch Color Display Features a crisp 320x480 resolution screen supporting 262K colors (RGB666), offering clear, vivid visuals for all your display needs. Includes a resistive touch screen for intuitive human-computer interaction.
- Rich Expansion Interfaces Equipped with abundant interfaces including I2C, SPI, UART, and moremaking it easy to connect sensors, actuators, and other peripherals. Also includes a Type-C port for fast programming and reliable power delivery.
- Multimedia & Storage Ready Supports external speaker output for audio playback and includes an RGB indicator light for status feedback. A built-in TF card slot allows for storage expansionperfect for logging data or storing media files.
- Portable & Safe Power Management Supports external lithium battery power with onboard charging management to ensure safe and efficient operation. Includes comprehensive sample code and online support for easy learning and development.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

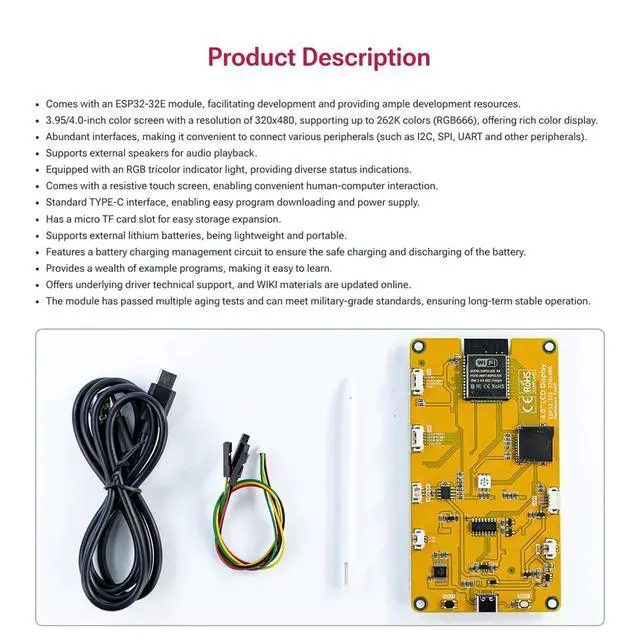

Product Introduction
Comes with an ESP32-32E module, facilitating development and providing abundant development resources.
Features a 4.0-inch color screen with a 320x480 resolution, supporting up to 262K colors (RGB666) for a rich and vivid display.

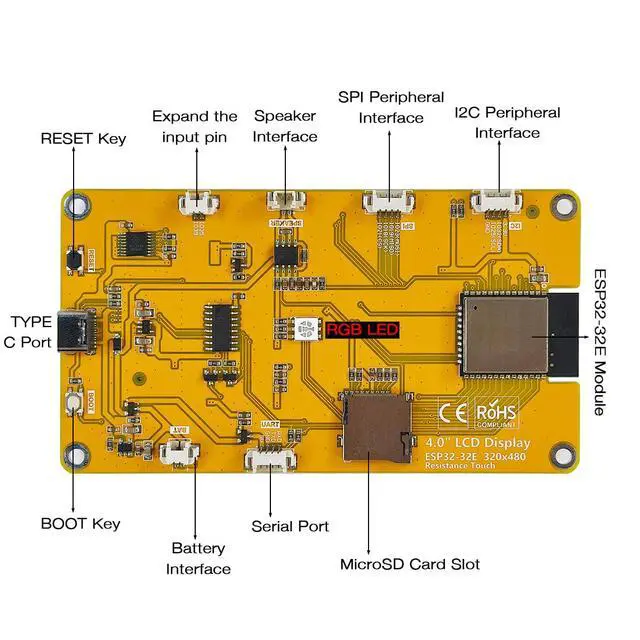

Offers multiple expansion interfaces, making it easy to connect various peripherals such as I2C, SPI, UART, and more.
Supports external speakers for audio playback.
Equipped with an RGB tricolor indicator light for versatile status indication.
Includes a resistive touch screen for convenient human-machine interaction.
Features a standard TYPE-C interface for easy program uploading and power supply.
Built-in micro TF card slot for convenient storage expansion.
Supports external lithium batteries, offering a lightweight and portable solution.
Integrated battery charging management circuit ensures safe battery charging and discharging.
Comes with a variety of example programs, making it easy to learn and get started.
Offers low-level driver support with continuously updated online WIKI resources.

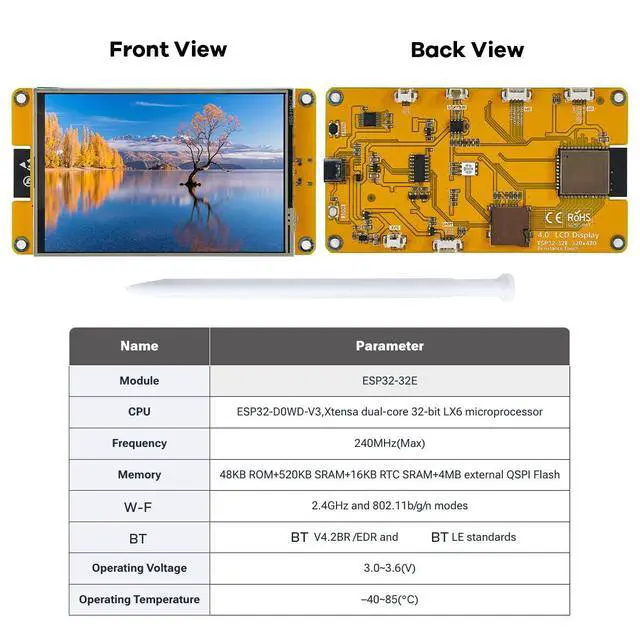

ModuleESP32-32E
CPUESP32-D0WD-V3, Xtensa dual-core 32-bit LX6 microprocessor
Main Frequency240MHz (maximum)
Storage448KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash
WIFI2.4GHz, 802.11b/g/n mode
BluetoothBluetooth V4.2 BR/EDR and Bluetooth LE standards

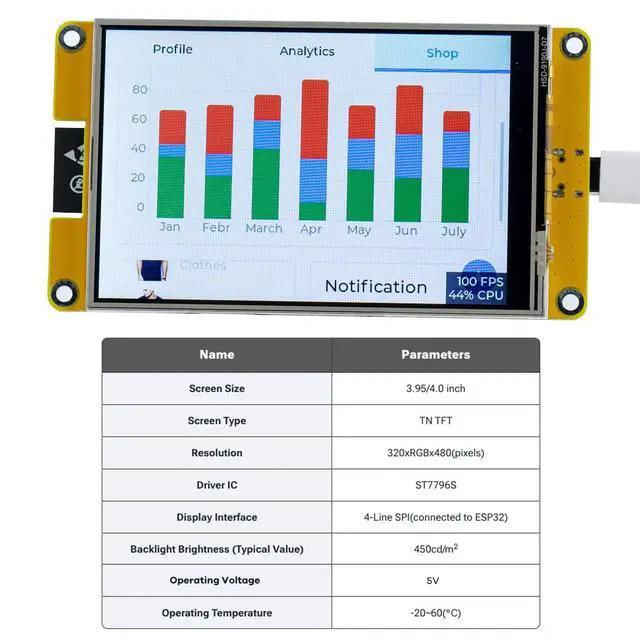

Driver ICST7796S
Display Interface4-Line SPI(connected to ESP32)
Screen TypeTN TFT
Screen Size4.0 inch
Dimensions60.88(W)x111.11(H)x5.65(D)(mm)

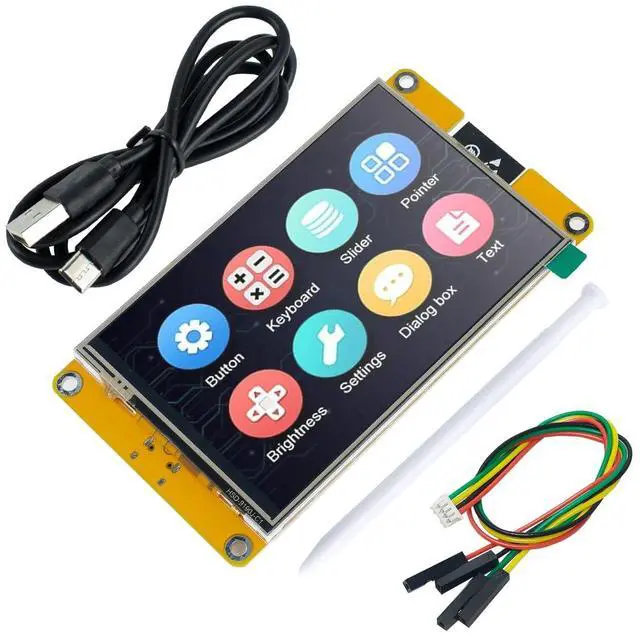

Package includes:
1 x 4'' ESP32 Dispaly Module
1 x USB Cable
1 x Touch Pen
1 x 4Pin Connector Cable
1 x Packaging box for display
