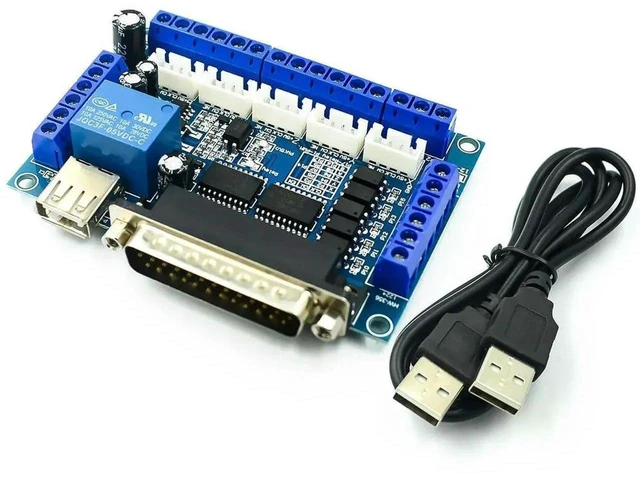

5-Axis CNC Breakout Board for Mach3, Parallel Port to Stepper Motor Driver Interface Adapter (Includes 5V USB Power Cable)
- 5-AXIS CNC CONTROL Connects a Mach3 CNC control setup to compatible stepper motor drivers, supporting control interfaces for up to 5 axes.
- DB25 PARALLEL PORT INTERFACE Converts signals from a computer's DB25 parallel port into accessible connections for CNC stepper motor driver wiring.
- MACH3 COMPATIBILITY Designed for Mach3-based CNC systems, making it suitable for building, repairing, or upgrading compatible routers, mills, and engraving machines.
- 5V USB POWER CABLE INCLUDED The supplied USB cable provides a convenient 5V power connection, reducing the need to source a separate power cable.
- WIRING-FRIENDLY BREAKOUT DESIGN Clearly separated connection points help simplify installation and troubleshooting between the controller and compatible motor drivers.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
5-Axis CNC Breakout Board for Mach3
5-Axis CNC Breakout Board is a DB25 parallel-port interface adapter designed to connect a Mach3 CNC control setup with compatible stepper motor drivers. It provides control connections for up to 5 axes and includes a USB cable for convenient 5V power.
Built for CNC system assembly, maintenance, and upgrades, this interface board organizes controller signals into accessible wiring points. It can be used in compatible CNC routers, milling machines, engraving machines, and other stepper-motor-based equipment.
Key Features
- Supports control interfaces for up to 5 CNC axes
- Designed for Mach3-based CNC control systems
- Uses a DB25 parallel-port connection
- Interfaces with compatible external stepper motor drivers
- Includes a USB cable for 5V board power
- Suitable for compatible CNC routers, mills, and engraving machines
Compatibility Notice
This board requires a computer or controller with a compatible DB25 parallel-port interface and appropriate Mach3 configuration. Stepper motor drivers, motors, power supplies, limit switches, and other CNC components are not specified as included. Confirm signal assignments, voltage requirements, wiring, and equipment compatibility before installation.
Package Contents
- 1 x 5-Axis CNC Breakout Board
- 1 x 5V USB Power Cable
Frequently Asked Questions
Does this CNC breakout board work with Mach3?
It is designed for Mach3-based CNC control systems using a compatible DB25 parallel-port connection. Proper Mach3 pin configuration and compatible external drivers are required.
How many axes can this breakout board control?
The interface board supports control connections for up to 5 CNC axes when integrated with compatible stepper motor drivers and control hardware.
Does the package include a power cable?
Yes. The package includes a USB cable intended to provide a 5V power connection to the board.
Are stepper motor drivers included?
No stepper motor drivers are specified as included. The board serves as an interface between a compatible Mach3 parallel-port controller and external drivers.
Can I use this board with a USB-only computer?
The control interface requires a compatible DB25 parallel port. The included USB cable supplies 5V power and does not replace the DB25 control connection.
