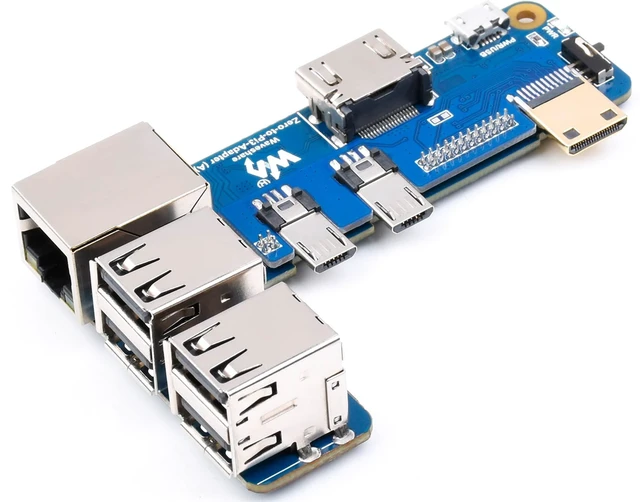

Form Factor Adapter Board for RPi Zero to 3B/3B+ Layout, Hardware Port Expander for Pi 3B HATs (Empty Board ONLY, No CPU)

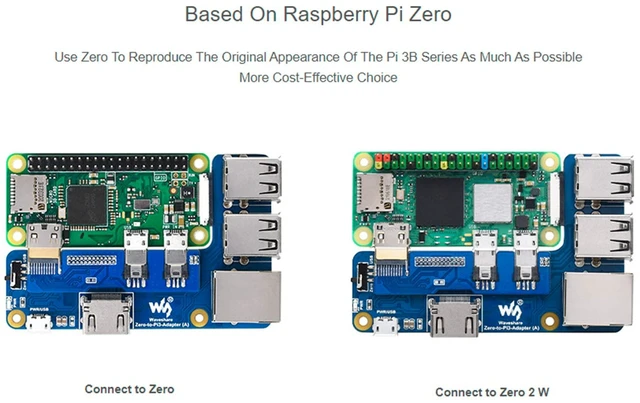

- Raspberry Pi Zero or 2W to Pi 3B / 3B+ Adapter, an alternative solution for Raspberry Pi 3 Model B / B+. Based on Raspberry Pi Zero or 2W, it uses Raspberry Pi Zero to reproduce the original appearance of the Pi 3B / 3B+.
- Note: Raspberry Pi Zero or 2W is NOT included.
- Features

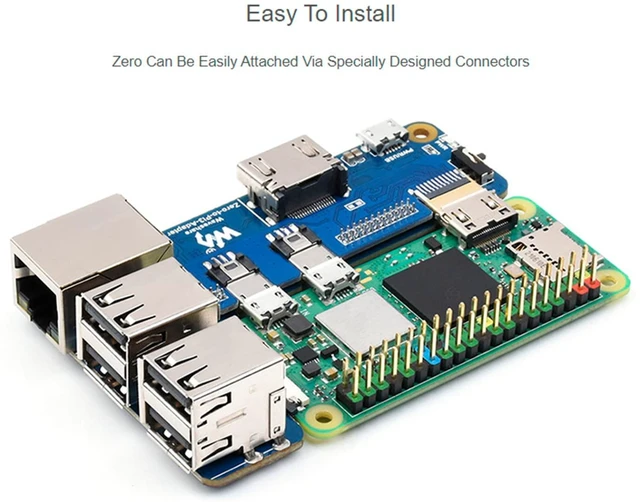

- EASY TO INSTALL: Zero can be easily attached via specially designed connectors. Adding Raspberry Pi Zero with this adapter board can replace Raspberry Pi 3 Model B / B+, making it more cost-effective.
- INTERFACE COMPATIBILITY: Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards. Onboard 4-channel USB ports, compatible with USB 2.0 / 1.1 transmission.
- ONBOARD ETHERNET CHIP: Onboard RTL8152B Ethernet chip; supports 1 x RJ45 Ethernet port, 10 / 100M adaptive.
- Note: The Ethernet port does not support PoE function.
- COMPATIBLE WITH PI 3B SERIES HATS: The same GPIO header height as the 3B, easily connecting with 3B series HATs or development projects.
- WIDE SUPPORT: Supports Raspberry Pi Zero / Zero W and Raspberry Pi Zero 2W.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

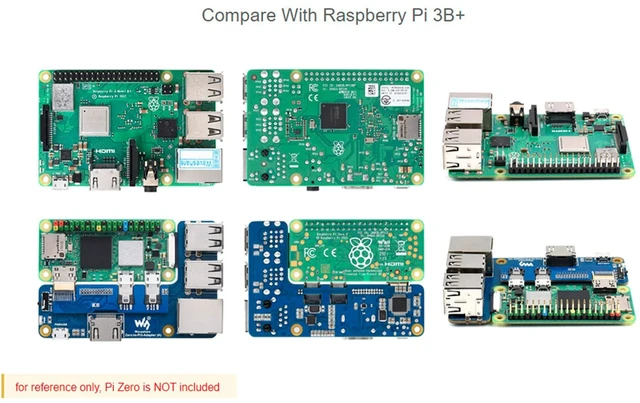

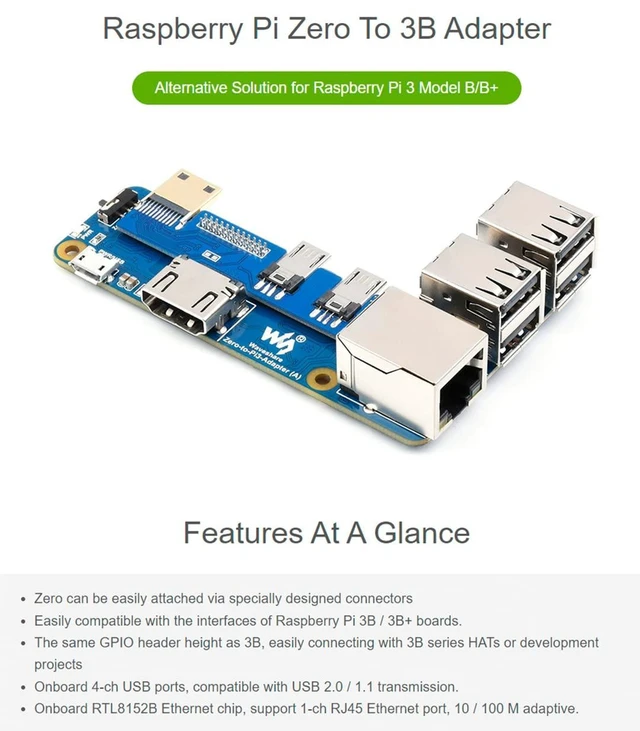

Raspberry Pi Zero to 3B Adapter, an alternative solution for Raspberry Pi 3 Model B / B+.
Onboard 4-channel USB interface, Fast Ethernet port, and HDMI port. The Raspberry Pi Zero to 3B Adapter is an alternative for Raspberry Pi 3 Model B / B+, supporting Zero and Zero 2W.
Features
- With this unique adapter, it can be inserted directly.
- Its interfaces are easily compatible with Raspberry Pi 3B / 3B+ boards.
- The GPIO is on the Zero board, whose position is consistent with the actual height of the 3B series, so you can easily connect to expansion boards used with 3B series boards or other development projects.
- Onboard 4-channel USB expansion port, compatible with USB 2.0 / 1.1 transmission.
- Onboard RTL8152B Gigabit Ethernet port; supports 1 x RJ45 network port, 10 / 100M adaptive.
- Supports Zero and Zero 2W.
Online Resource / Document
(Refer to the product manual or official documentation. External links are not recommended in Newegg descriptions.)
Package Content
- 1 x Zero-to-Pi3-Adapter (A)
