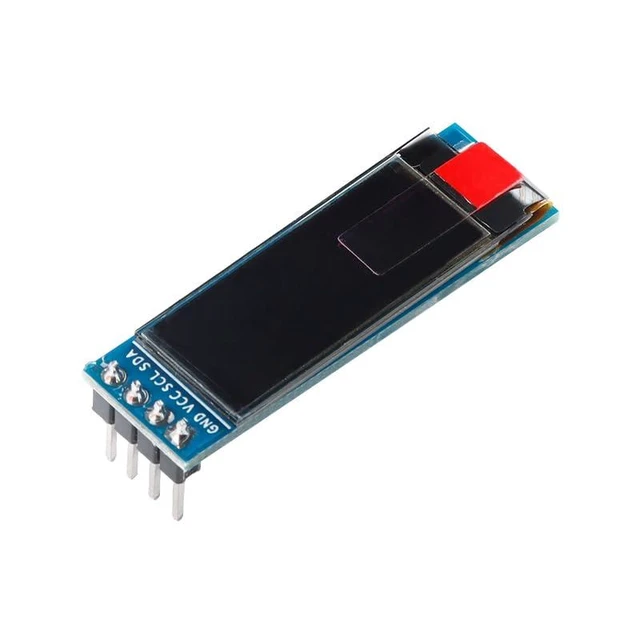

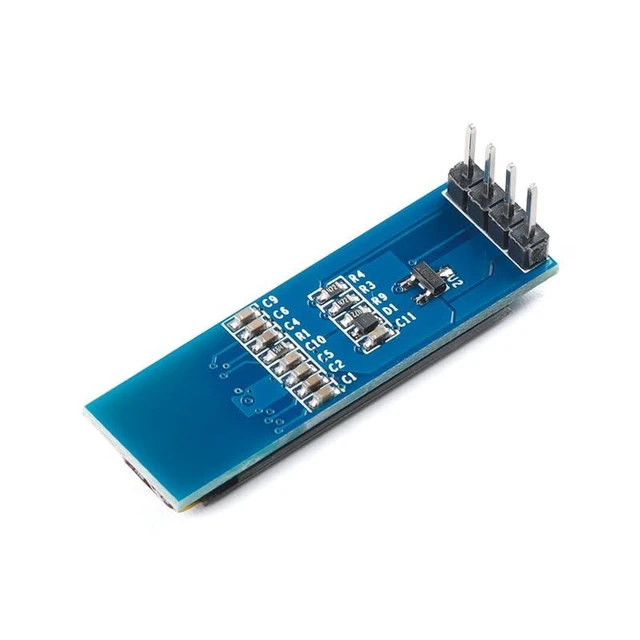

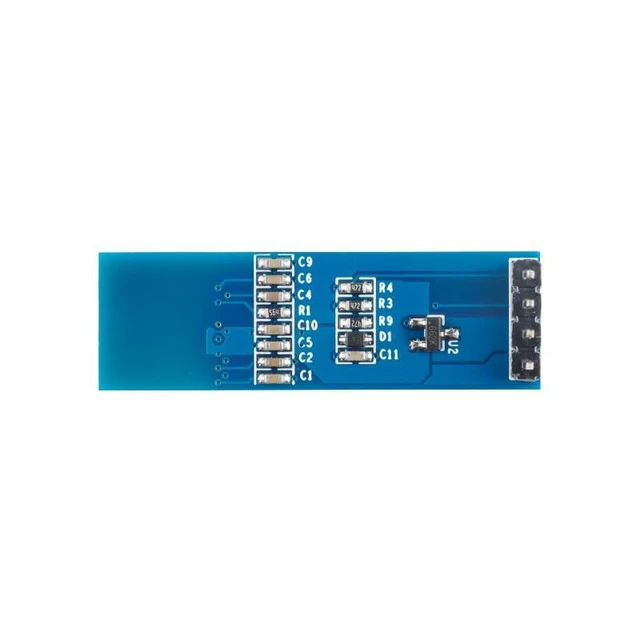

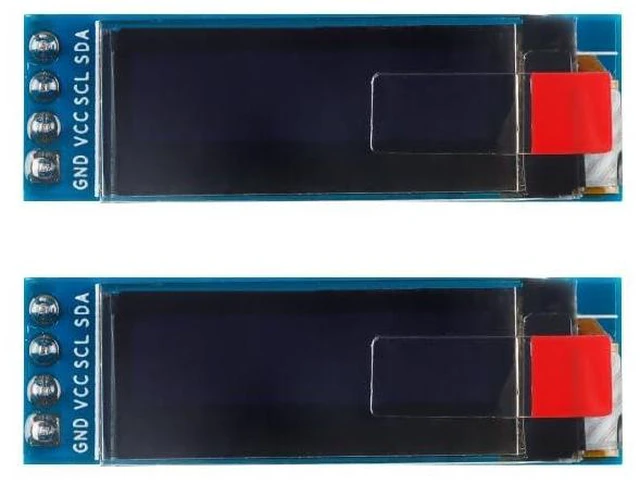

0.91 Inch OLED Display Module I2C IIC 12832 128X32 SSD1306 Blue DC3.3V 4-Pin PM OLED Screen 22.384 x 5.584 mm Display Area 12x38 mm Module 2PCS for DIY Electronics Wide Viewing Angle
- 0.91-inch PM OLED display provides a compact visual interface with a blue display color for clear project status, readings, and text.
- 128 x 32 resolution delivers crisp OLED graphics, while the SSD1306 control chip supports smooth display operation.
- I2C/IIC interface enables straightforward communication between the display module and compatible development boards or microcontrollers.
- Designed for 3.3V operation, this OLED module supports low-voltage electronic projects and portable device integration.
- The 22.384 x 5.584 mm display area fits within a compact 12 x 38 mm module for flexible installation in space-constrained designs.
- A 0.175 x 0.175 mm pixel pitch and 0.159 x 0.159 mm pixel size provide detailed image presentation on the OLED screen.
- The wide viewing angle helps keep displayed information visible from different positions during project operation or testing.
- A 4-pin configuration simplifies wiring and provides the connection points needed for integrating the OLED module into a project.
- The package includes 2 OLED display modules, providing matching units for separate projects, replacement use, or multi-display designs.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description:
A 0.91-inch blue OLED display module with 128X32 resolution and an SSD1306 control chip for displaying information in electronic projects.
Core Selling Points:
The I2C interface and 4-pin configuration support straightforward connection to compatible project boards and microcontrollers. A wide viewing angle and 0.159 x 0.159 mm pixel size provide clear, detailed visuals. The 3.3V operating voltage supports low-voltage projects.
Technical Specifications:
Display type: PM OLED; color: blue; resolution: 128X32; control chip: SSD1306; interface: I2C/IIC; operating voltage: DC 3.3V; pins: 4; display area: 22.384 x 5.584 mm; module size: 12 x 38 mm; pixel pitch: 0.175 x 0.175 mm; pixel size: 0.159 x 0.159 mm; diagonal: 0.91 inch.
Package Contents:
2 OLED display modules.
Before Purchase:
Confirm that your project supports the I2C/IIC interface and DC 3.3V operation. Check the 12 x 38 mm module dimensions and 4-pin configuration against your available space and connections.
