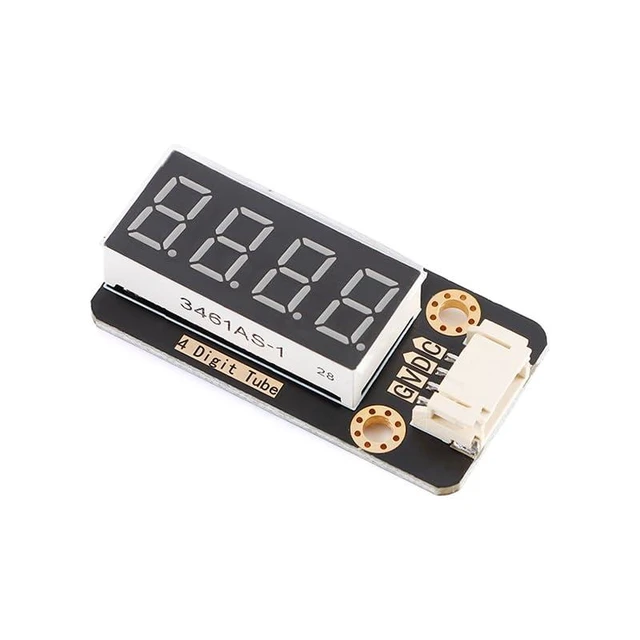

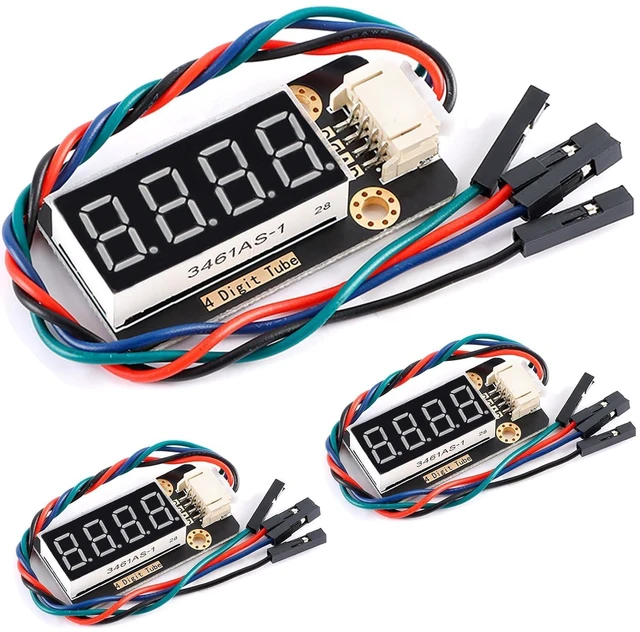

3pcs 4-Digit LED Display Module with TM1650 Driver 0.36-Inch Common Cathode 5V I2C Interface PH2.0-4Pin Socket 8-Level Brightness Control for Microcontroller Projects
- Includes 3 pieces of 4-digit LED display modules with 0.36-inch red common-cathode digital tubes for numeric display applications.
- Integrated TM1650 driver combines LED driving, data latching, brightness adjustment, and keyboard scanning functions in one chip.
- Uses a 4-wire I2C interface with V/G/D/C connections, reducing wiring requirements compared with traditional digital tube designs.
- The 4-wire control method can save up to 89% of GPIO resources compared with traditional digital tubes requiring more than 12 pins.
- Operates at a typical 5V voltage and provides 25mA segment driving current for the LED display elements.
- Provides 150mA bit driving current to support high-brightness display output in strong-light conditions.
- Offers 8-level programmable brightness adjustment for controlling display intensity through software settings.
- Features a PH2.0-4P socket with an anti-reverse design for the V/G/D/C interface connection.
- Uses a 12-pin package while requiring only four wires for control, combining the stated package structure with simplified module wiring.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
This 3-piece 4-digit LED display module features a 0.36-inch common cathode display and an integrated TM1650 driver chip. It is designed for digital display applications using a 4-wire I2C interface.
Core Selling Points:
The module requires only four wires, V/G/D/C, for display control through the I2C interface, helping reduce GPIO usage compared with traditional digital tube designs. It supports ultra-high brightness for outdoor equipment and industrial instruments, provides 8-level programmable brightness adjustment, and includes a built-in keyboard scanning interface that can be customized and extended for display and input control.
Technical Specifications:

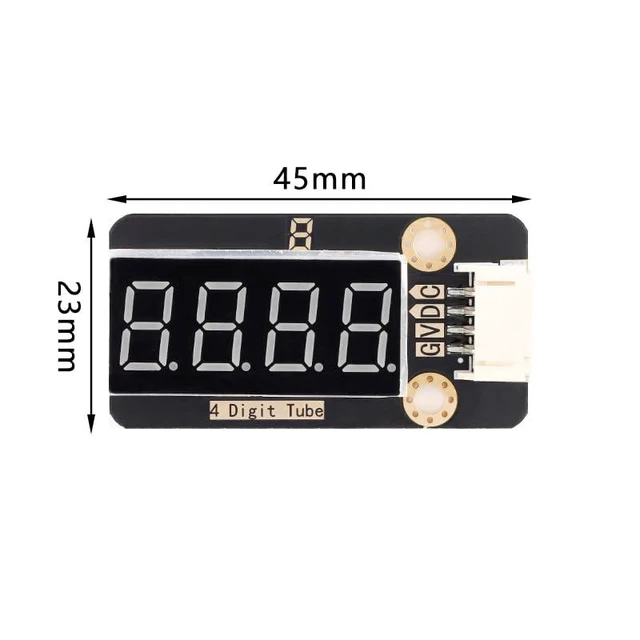

Display type: 0.36-inch red common cathode digital tube. Number of digits: 4. Display structure: 12-pin package. Driver chip: TM1650. Operating voltage: 5V typical. Interface: 4-wire I2C, V/G/D/C. Interface connector: PH2.0-4P socket with anti-reverse design. Segment drive current: 25mA. Bit drive current: 150mA. Brightness adjustment: 8 programmable levels. Mounting hole size: 3mm.
Package Contents:

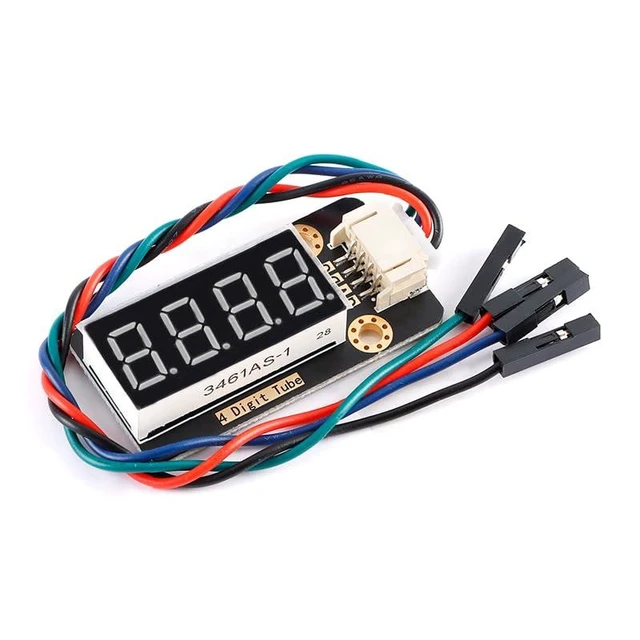

3 x 4-digit LED display modules.
Before Purchase:
Confirm that your project supports a 5V operating voltage and a 4-wire I2C connection using the V/G/D/C interface. Check compatibility with the PH2.0-4P socket and ensure the 0.36-inch display size and 3mm mounting holes fit your installation requirements. The keyboard scanning interface requires customization and extension for input control.
