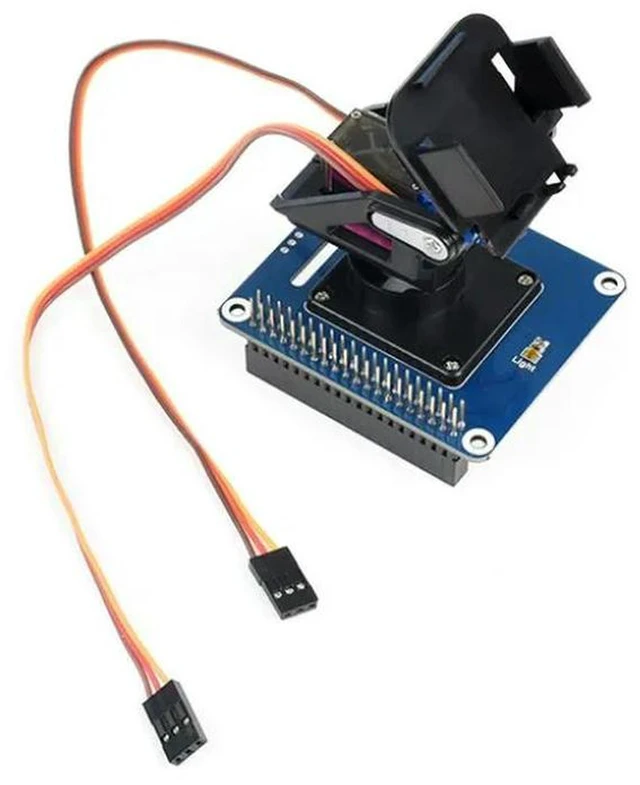

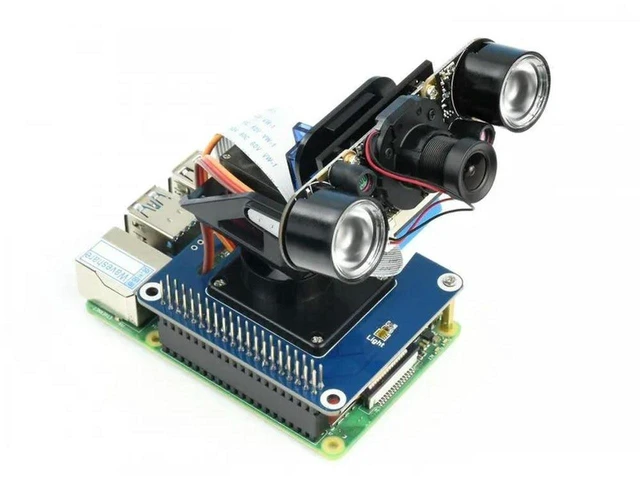

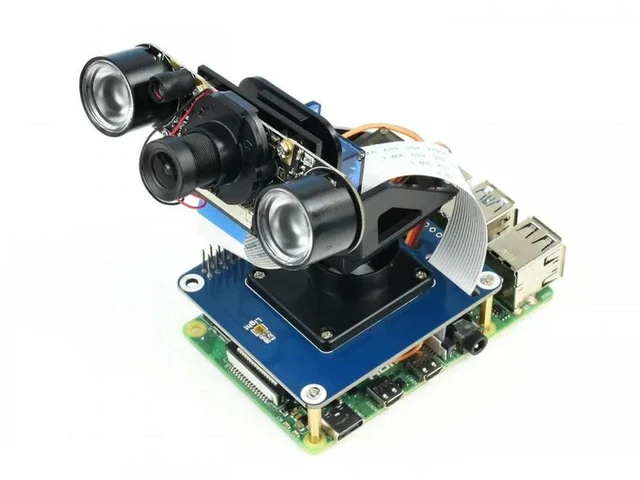

2-DOF Pan-Tilt HAT Camera Control Board 40PIN GPIO Expansion HAT with PCA9685 12-bit PWM Driver I2C Servo Pan Tilt Controller 3.3V/5V Level Shifter and Ambient Light Sensor For Raspberry Pi
- 2-DOF pan-tilt control board operates two servos for horizontal and vertical camera movement through the I2C bus.
- Designed to plug directly into a 40PIN GPIO header and control pan-tilt motion using only two signal wires.
- Integrated PCA9685 12-bit PWM driver delivers stable, accurate servo angle adjustment for smooth pan and tilt movement.
- Built-in ambient light sensor collects surrounding brightness data for light-intensity detection in connected projects.
- Onboard level shifter supports both 3.3V and 5V logic levels for compatible peripheral connections.
- Reserved GPIO pins allow additional sensors to be added for expanded project functionality.
- Includes an acrylic fixture for securely mounting a camera to the pan-tilt assembly.
- Includes open-source Python demo codes for object tracking, face recognition, and remote monitoring projects.
- Compatible with Raspberry Pi series; Raspberry Pi board, camera, and servos are not included.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
2-DOF pan-tilt HAT for Raspberry Pi camera control. It connects to the 40PIN GPIO header and uses I2C communication to control two servos for horizontal and vertical camera movement. An onboard ambient light sensor collects surrounding brightness data for expanded camera and vision projects.
Core Selling Points:
The onboard PCA9685 12-bit PWM controller provides stable, precise servo angle adjustment for smooth pan and tilt movement. A 3.3V / 5V level translator supports compatible logic levels, while reserved GPIO pins allow additional sensor expansion. An acrylic camera mounting bracket helps secure the camera, and open-source Python demo code supports object tracking, face recognition, and remote monitoring projects.
Technical Specifications:
Model: 2-DOF Pan-Tilt HAT. Compatible with: Raspberry Pi Series. Interface: I2C, 40PIN GPIO header. PWM chip: PCA9685, 12-bit resolution. Onboard sensor: ambient light sensor. Voltage level: 3.3V / 5V compatible. Application: camera pan-tilt control, AI vision tracking, robot monitoring, and electronic DIY.
Package Contents:
Acrylic camera mounting bracket; assembly guide.
Before Purchase:
For Raspberry Pi systems with a 40PIN GPIO header. Designed to control two servos through I2C. Raspberry Pi board, camera, and servos are not included.
