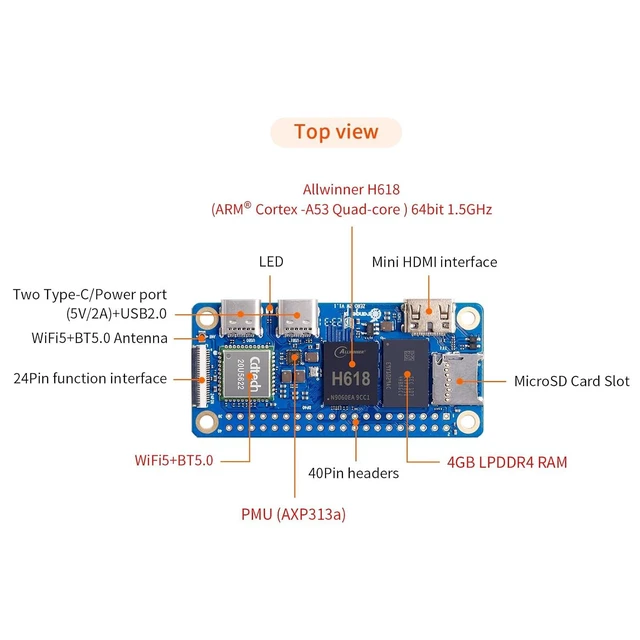

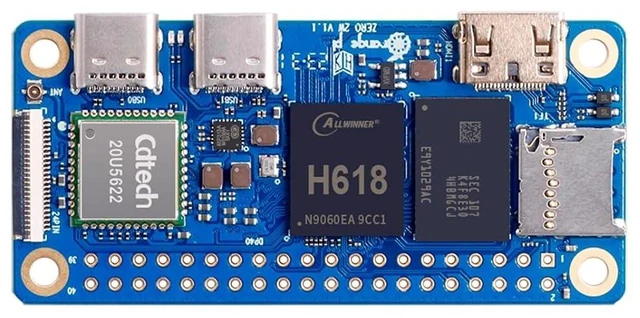

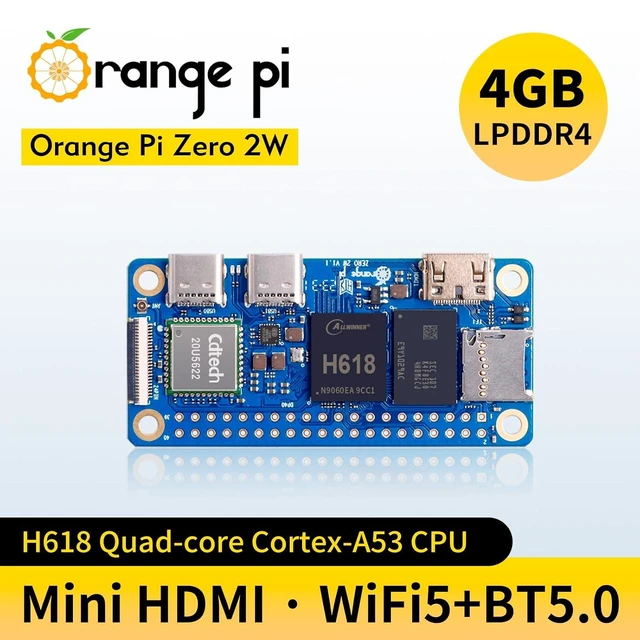

Orange Pi Zero 2W 4G Single Board Computer Allwinner H618 Quad-Core Cortex-A53 1.5GHz CPU LPDDR4 Development Board Wi-Fi 5.0 Bluetooth 5.0 4K@60FPS Mini HDMI Android Ubuntu
- Powered by an Allwinner H618 quad-core Cortex-A53 processor with a frequency of up to 1.5GHz for board-level computing projects.
- Integrated Mali G31 MP2 graphics supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, and Vulkan 1.1 APIs.
- LPDDR4 memory is available in 1GB, 1.5GB, 2GB, or 4GB configurations to match different project requirements.
- Includes 16MB SPI Flash for onboard storage, with a Micro SD card interface available for additional storage options.
- Wi-Fi 5.0 and Bluetooth 5.0 connectivity include BLE support, with dual-band 2.4G/5G Wi-Fi specified in the source.
- The Mini HDMI TX 2.0 port supports 4K video output at 60FPS for compatible display devices.
- The 24-pin expansion interface can provide USB 2.0, 100M Ethernet, IR receiver, audio output, TV-out, and power button connections with an adapter board.
- A 40-pin function expansion interface supports GPIO, UART, I2C, SPI, and PWM interface types for hardware development.
- Supported operating systems include Android 12 TV, Debian 11, Debian 12, Ubuntu 22.04, Ubuntu 20.04, and OSArch.

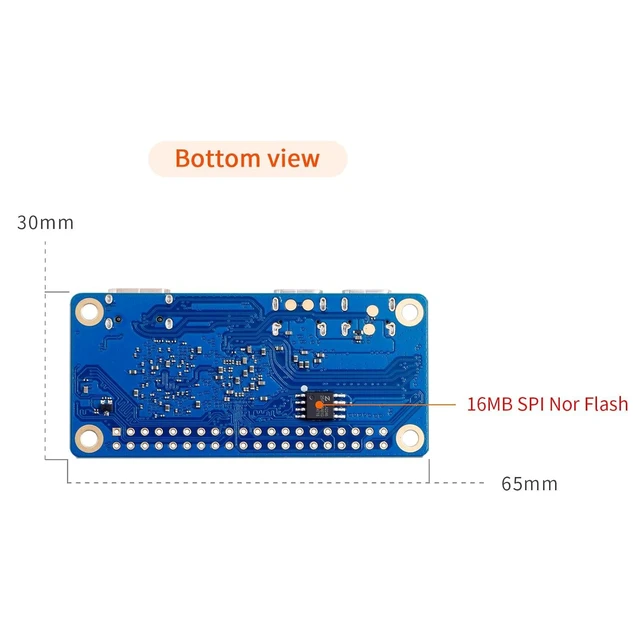

- The compact PCB measures 30mm x 65mm x 1.2mm and weighs 12.5g for space-conscious embedded projects.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
Zero 2W single-board computer powered by an Allwinner H618 quad-core Cortex-A53 processor with integrated Mali G31 MP2 graphics. It is designed for applications including TV boxes, smart screen casting devices, smart home systems, smart gateways, and IoT projects.
Core Selling Points:
The board combines 4GB LPDDR4 memory, Wi-Fi 5.0, Bluetooth 5.0 with BLE support, and compact dimensions. Its 24-pin expansion interface can provide additional USB 2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, and user-defined button functions through an adapter board. A 40-pin expansion interface supports GPIO, UART, I2C, SPI, and PWM functions. The integrated graphics processor supports OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, and Vulkan 1.1.
Technical Specifications:

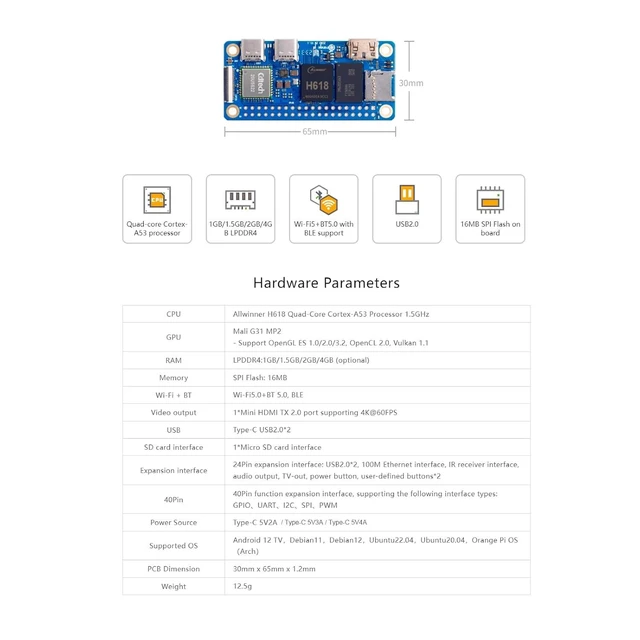

Main control chip: Allwinner H618. CPU: quad-core Cortex-A53, up to 1.5GHz. GPU: Mali G31 MP2. Memory: 4GB LPDDR4. Onboard storage: 16MB SPI Flash. Wireless: Wi-Fi 5.0 and Bluetooth 5.0 with BLE support. USB: 2 x USB 2.0. Video output: 1 x Mini HDMI TX 2.0 supporting 4K@60FPS. Storage interface: 1 x Micro SD card interface. Expansion: 24-pin expansion interface and 40-pin function expansion interface. Supported operating systems: Android 12 TV, Debian 11, Debian 12, Ubuntu 22.04, Ubuntu 20.04, and OSArch. PCB dimensions: 30mm x 65mm x 1.2mm. Weight: 12.5g.
Before Purchase:
Confirm that the required operating system, Mini HDMI display connection, Micro SD card interface, and expansion functions meet your application needs. The 24-pin expansion interface requires an adapter board for the additional USB 2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, and user-defined button functions. Check power requirements and supporting accessories before purchase.
