Pi 4 Model B Board BCM2711 Quad-Core Cortex-A72 64-bit 1.5GHz SoC 2GB LPDDR4-3200 SDRAM 2.4/5.0GHz 802.11ac Wireless Bluetooth 5.0 BLE Gigabit Ethernet 2 USB 3.0/2 USB 2.0 Ports 40-Pin GPIO Header

Product Description:

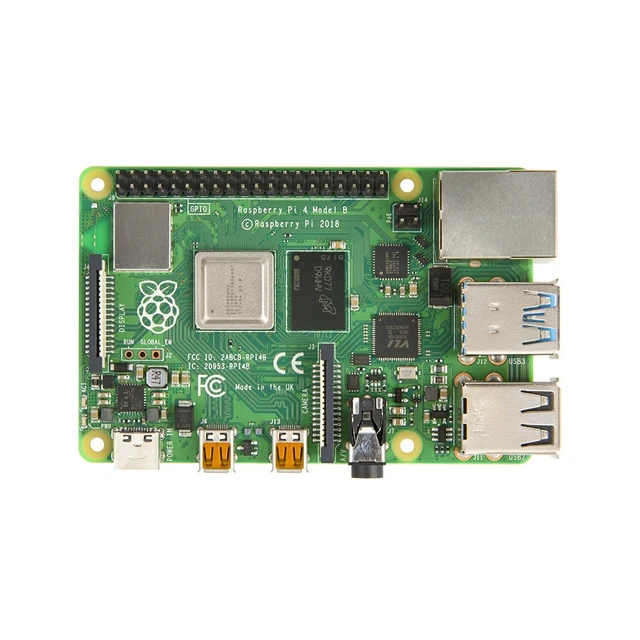

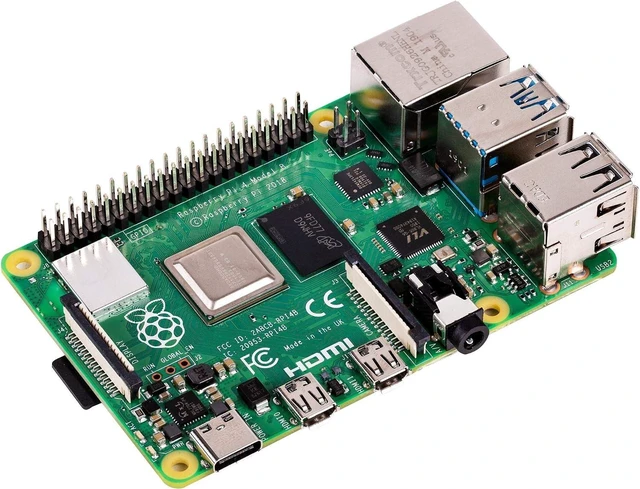

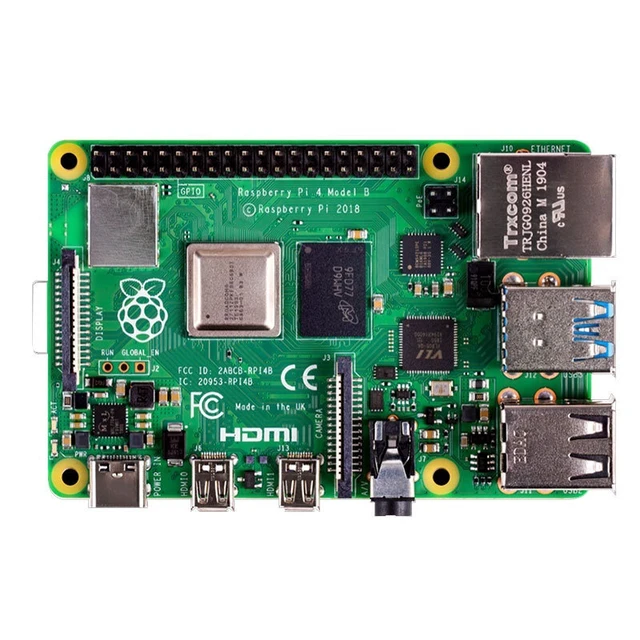

The Model B (2GB) is a compact computing board built around a Broadcom BCM2711 quad-core 64-bit processor. It provides wireless connectivity, Bluetooth, Gigabit Ethernet, USB expansion, and a 40-pin GPIO header for supported board connections.

Core Selling Points:

The quad-core Cortex-A72 processor operates at 1.5GHz for responsive computing performance. Dual-band 2.4GHz and 5.0GHz IEEE 802.11ac wireless supports network connectivity, while Bluetooth 5.0, BLE, and Gigabit Ethernet provide additional connection options. The board includes both USB 3.0 and USB 2.0 ports and a standard 40-pin GPIO header that is fully backwards compatible with previous boards.

Technical Specifications:

Model: Model B (2GB). Processor: Broadcom BCM2711 quad-core Cortex-A72, ARM v8 64-bit SoC. Processor speed: 1.5GHz. Memory: 2GB LPDDR4-3200 SDRAM. Wireless: 2.4GHz and 5.0GHz IEEE 802.11ac. Bluetooth: Bluetooth 5.0 and BLE. Network: Gigabit Ethernet. USB: 2 USB 3.0 ports and 2 USB 2.0 ports. GPIO: Standard 40-pin GPIO header, fully backwards compatible with previous boards.

Before Purchase:

Confirm that your application supports the Model B (2GB), requires the available 2.4GHz or 5.0GHz IEEE 802.11ac wireless bands or Gigabit Ethernet as applicable, and is compatible with the available USB and standard 40-pin GPIO interfaces.
