Orange Pi 4 Pro 6GB LPDDR5 Single Board Computer 8-Core 64-Bit Allwinner A733 2.0GHz 3 TOPS NPU WiFi 6 & Bluetooth 5.4 4K HDMI 2.0 Gigabit Ethernet Android Linux Mini PC

Product Description:

A compact single-board computer with an Allwinner A733 8-core 64-bit processor, 6GB LPDDR5 memory, integrated WiFi 6 and Bluetooth 5.4, and a 3 TOPS AI NPU. It is designed for development, computing, multimedia, connectivity, and AI inference applications, with support for Android, Linux, and the product operating system.

Core Selling Points:

The octa-core processor combines 2 Cortex-A76 cores and 6 Cortex-A55 cores with a maximum frequency of 2.0GHz for multitasking. The 3 TOPS NPU supports INT8, INT16, FP16, and BF16 mixed-precision processing for visual, speech, and inference workloads. Integrated WiFi 6, Bluetooth 5.4 with BLE support, Gigabit Ethernet, and PoE support provide flexible connectivity and deployment options. The board also includes a RISC-V E902 co-processor for real-time control and supports development with TensorFlow, PyTorch, and ONNX frameworks.

Technical Specifications:

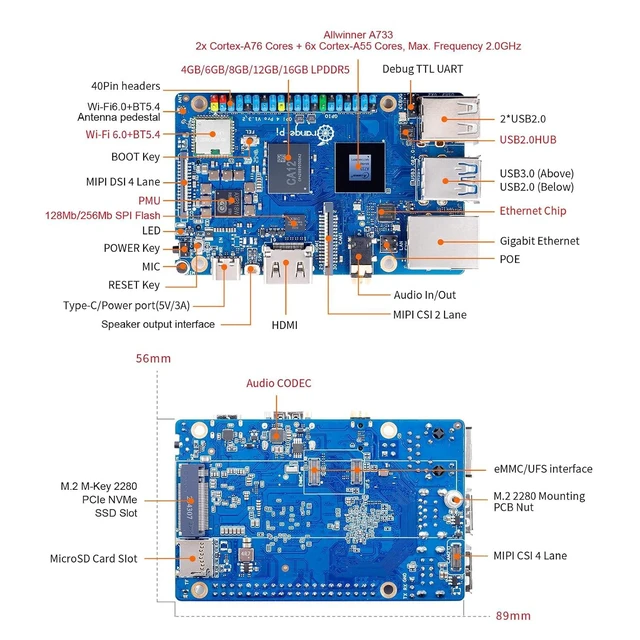

SoC: Allwinner A733. CPU: 2x Cortex-A76 cores + 6x Cortex-A55 cores, up to 2.0GHz. GPU: Imagination BXM-4-64. NPU: 3 TOPS at INT8; supports INT8/INT16/FP16/BF16 mixed precision. MCU: RISC-V E902 co-processor, 200MHz. PMIC: AXP318. Memory: 6GB LPDDR5; supports up to 16GB. Storage: Optional eMMC modules in 16GB/32GB/64GB/128GB configurations, optional 128Mb or 256Mb SPI Flash, M.2 M-Key slot with PCIe support for NVMe SSD, and microSD card slot supporting up to 128GB. Wireless: Integrated WiFi 6 and Bluetooth 5.4 with BLE support. Ethernet: Gigabit Ethernet with YT8531CA onboard PHY and PoE support. Display: 1x HDMI 2.0 port supporting up to 4K@60Hz; 1x 4-lane MIPI DSI display interface. Camera: 1x 2-lane MIPI CSI interface and 1x 4-lane MIPI CSI interface. USB: 1x USB 3.0 Host port and 3x USB 2.0 Host ports. Audio: 3.5mm headphone jack with input/output support, single speaker, and single microphone. Controls: BOOT, Reset, and Power buttons. Fan: 2-pin 5V DC fan header. PCB size: 89x56mm. Weight: 58g.

Before Purchase:

Confirm that the selected operating system and software environment meet your requirements. Linux support is stated in the source. Storage options such as eMMC, SPI Flash, NVMe SSD, and microSD are optional or require separate selection according to the configuration. Check the available display, camera, USB, audio, Ethernet, and power interfaces against your intended setup. The board uses a 5V DC fan header and has an 89x56mm PCB size.
