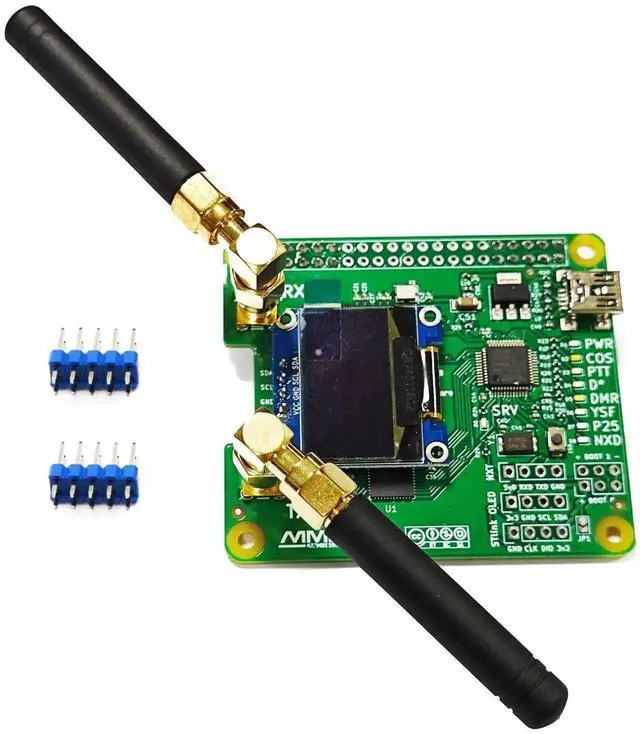

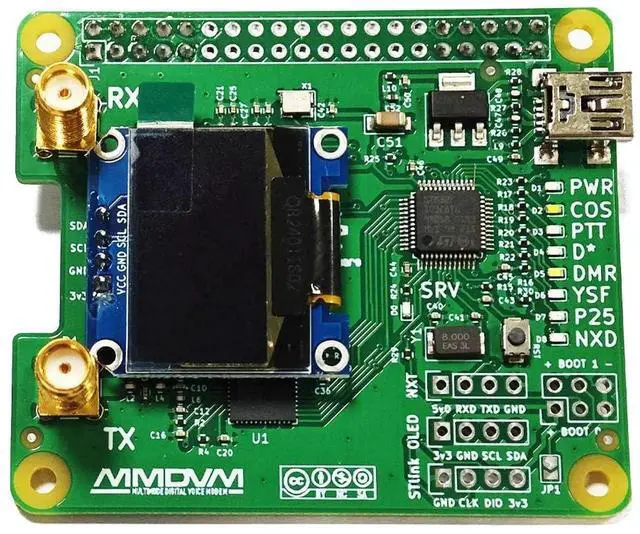

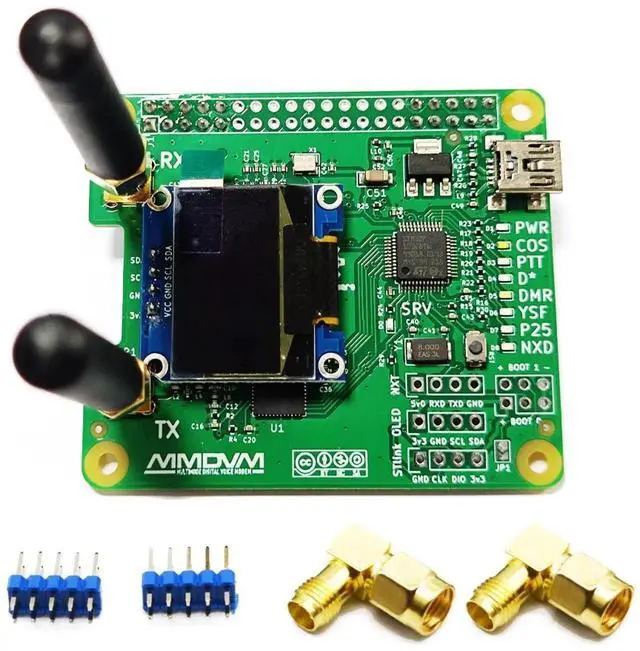

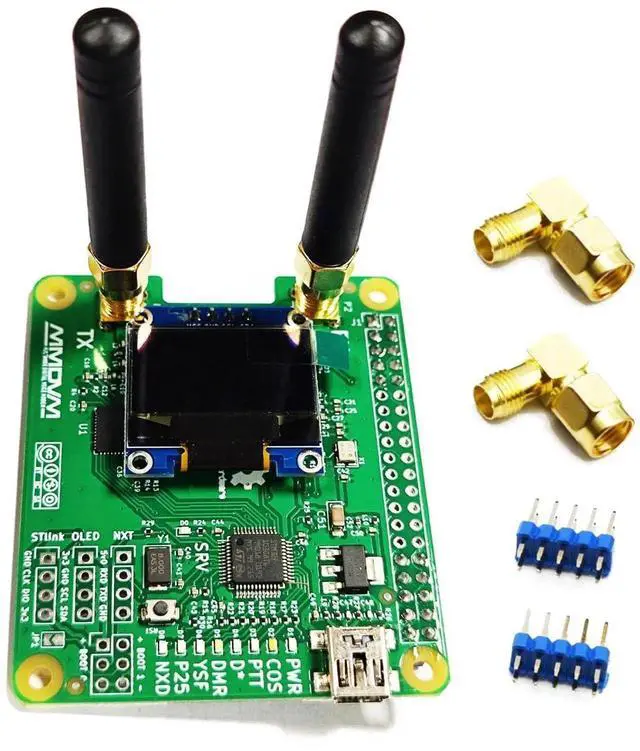

AURSINC MMDVM Duplex Hotspot Module Dual Hat V1.5.2 with 0.96 OLED Display Support P25 DMR YSF NXDN DMR Slot 1 + Slot 2 for R Pi 1, 2/2b, 3/3b/3b+, 4/4b, Pi Zero, Zero 2W with USB Port (with OLED)
- [WIDELY COMPATIBLE] Supports DMR, P-25, D-Star and System Fusion. HIGH PERFORMACE: 32-bit ARM processor, up to 10mW RF power, fully tested every piece. Compatible with the Raspberry Pi, including the Pi 1, 2/2b, 3/3b/3b+, 4/4b, Pi Zero, Pi Zero 2W
- [FREQUENCY] Radio Frequency: 144-148, 219-225, (Main Band) 420-475, 842-950. It's best to work on the amateur band: 430-440 MHz. NOTE: TX =0, RX=0. Modem select: STM32-DVM/MMDVM_HS-Raspberry pi Hat (GPIO) or any other (GPIO board)
- [NOTE] If the board fails to work on duplex mode, please run the upgrade command: sudo pistar-mmdvmhshatflash hs_dual_hat (if this command doesn't work, please try WPSD replace pi-star for MMDVM: https:// www. mmdvm .club/index .php/wpsd.html)
- [LASTEST FIRMWARE] The MMDVM Duplex Hotspot board is latest firmware V1.5.2, support upgrade to V1.6.1. How to upgrade: (pi-star/expert/ssh access/user: pi-star pass: raspberry) connect JP1 first. Then run upgrade command(as shown). After upgraded finished,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DESCRIPTION
Original cystal: Original ECS-TXO-3225- 147.4 -TR from USA
Duplex variant of MMDVM_HS_Hat
This PCB uses the MMDVM_HS.
It has two ADF7021 onboard and allows for duplex operation with two time slots on DMR.
Setting Tips:
Modem select: STM32-DVM/MMDVM_HS-Raspberry pi Hat (GPIO)
Package List:
1x MMDVM duplex HotSPOT Module
2x Antenna
