ESP32-S3 7inch Touch LCD Development Board, 1024×600 65K Color IPS Display, 32-bit LX7 Dual-core Processor, up to 240MHz Frequency, Support 2.4GHz Wi-Fi and BLE 5, Backlight Adjustable

Overview

ESP32-S3-Touch-LCD-7B is a microcontroller development board that supports 2.4GH z Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

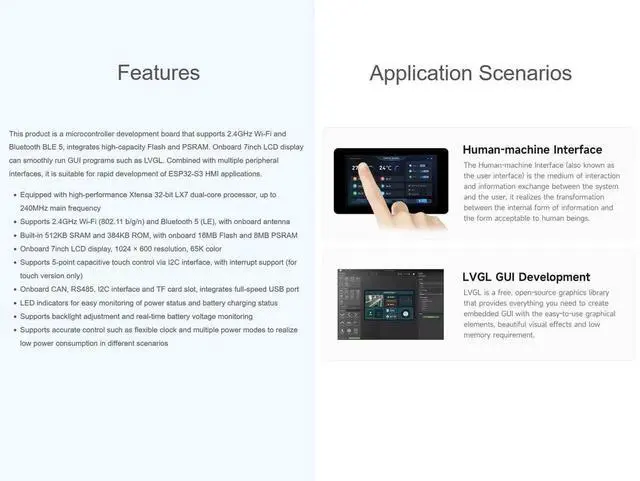

Features

--Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

--Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

--Built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

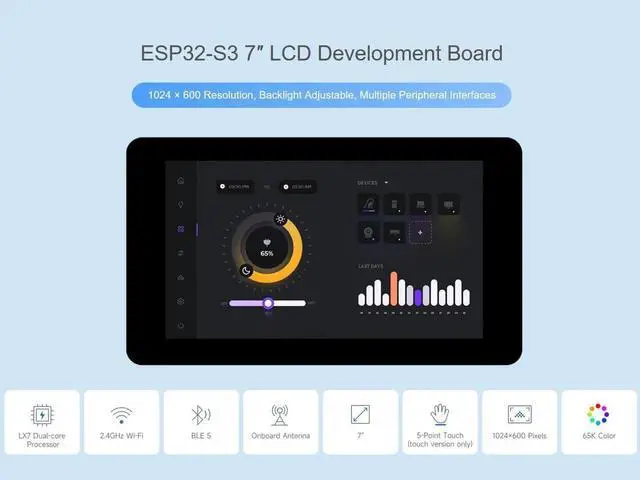

--Onboard 7inch LCD display, 1024 × 600 resolution, 65K color

--Supports 5-point capacitive touch control via I2C interface, with interrupt support

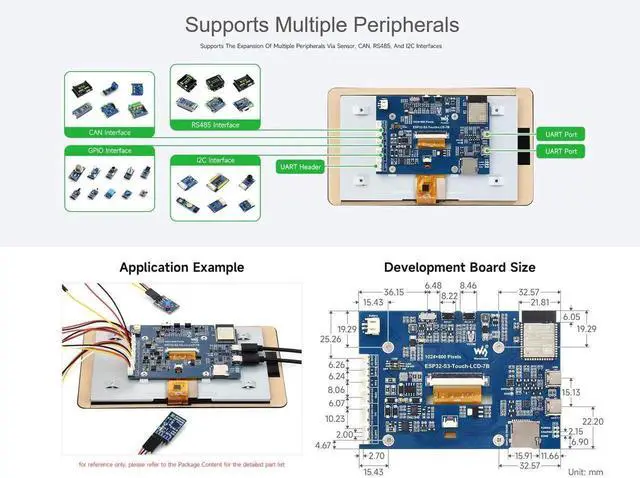

--Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

--LED indicators for easy monitoring of power status and battery charging status

--Supports backlight adjustment and real-time battery voltage monitoring

--Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Package Content

ESP32-S3-Touch-LCD-7B × 1

HY 2.0 2P to 2PIN male cable × 3

HY 2.0 3P to 3PIN male cable × 1

HY 2.0 4P to 4PIN male cable × 2

Screws pack × 1

* Note: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
