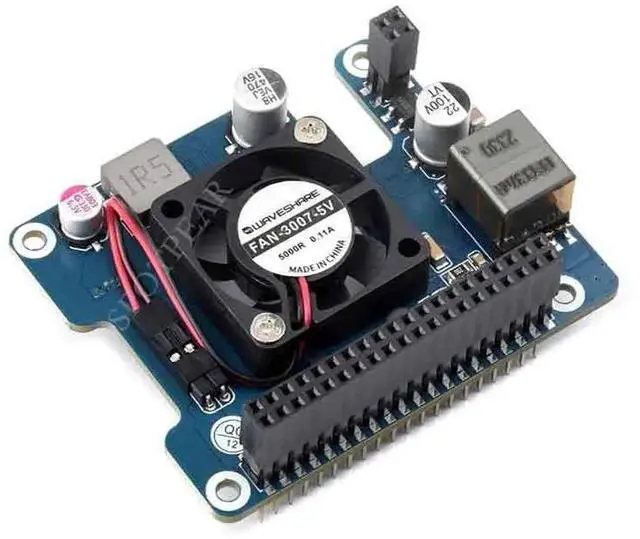

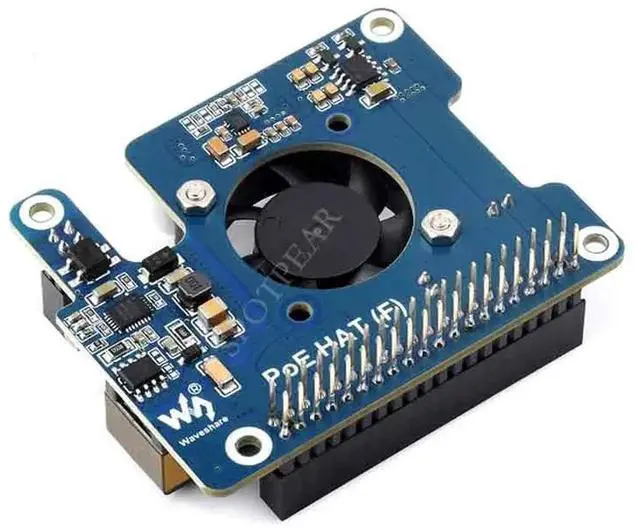

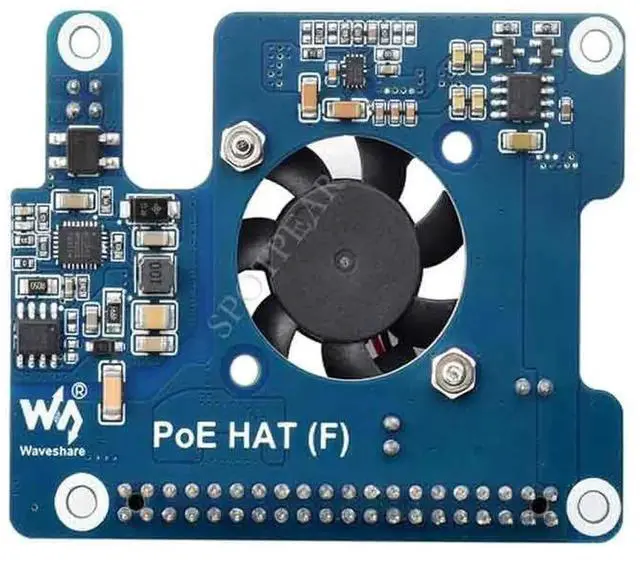

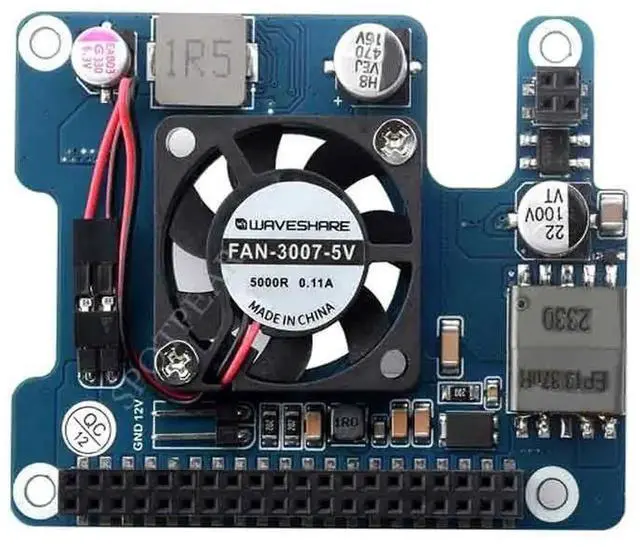

PoE-HAT-F PoE-HAT-F PoE HAT Power Over Ethernet 802.3af Moudle for Raspberry Pi5

--------Note

[] Not include Raspberry Pi 5.

--------Overview

[] A Power over Ethernet (PoE) expansion board suitable for Raspberry Pi 5, which supports IEEE 802.3 af/at network standard. It is suitable for use with PoE routers or switches supporting IEEE 802.3 af/at network standards, and only one network cable is needed to connect the Raspberry Pi to the network and supply power.

[] Based on Raspberry Pi 40PIN GPIO interface, it is suitable for Raspberry Pi 5.

[] supports PoE Ethernet power supply and IEEE 802.3 af/at PoE network standard.

[] Fully isolated switch mode power supply (SMPS) is adopted.

[] On-board high-speed active cooling fan and equipped with metal fins to accelerate heat dissipation.

--------Specifications

[] PoE power input: 37V ~ 57V DC input.

[] Power output:

[] GPIO pin arrangement: 5V 4.5A (MAX)

[] 2P needle arrangement: 12V 2A (MAX)

[] Product size: 56.5 × 70.0 mm.

[] network standard: supporting IEEE 802.3 af/at PoE.

--------For Use With Raspberry Pi 5

[] Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

--------Package Contains

PoE-HAT-F x1
