ESP32-S3 with 1.9inch Touch LCD Display Development Board 170 x 320, 262K Color, 32-bit LX7 Dual-Core Processor, Up to 240MHz Frequency, Supports 90° Hardware Rotation

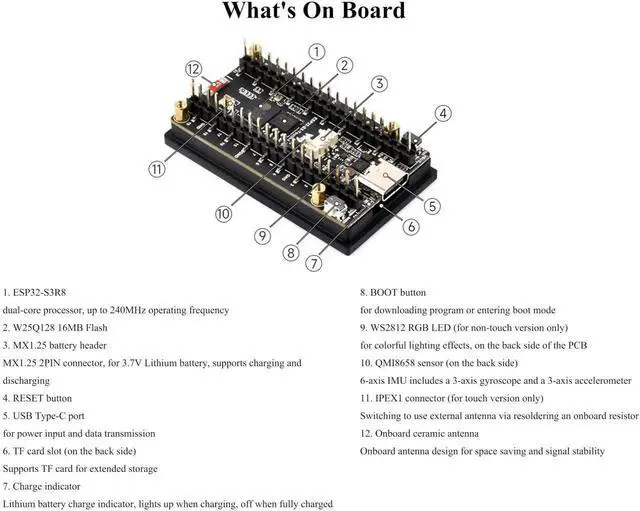

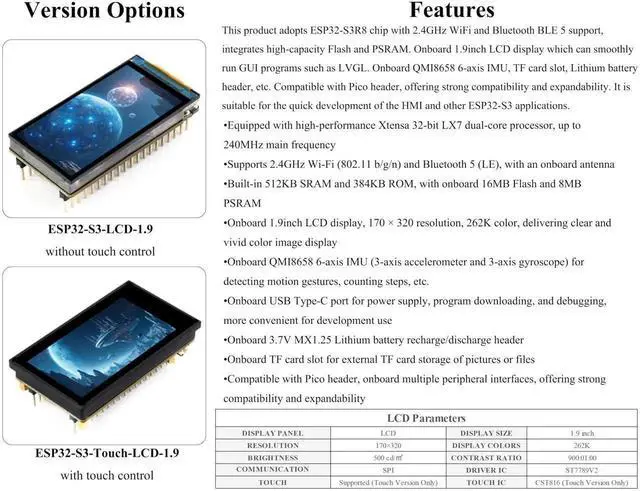

- It adopts ESP32-S3R8 chip, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
- Supports 2.4GHz W-i-F--i (802.11 b/g/n) and Blue-tooth 5 (LE), with an onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.

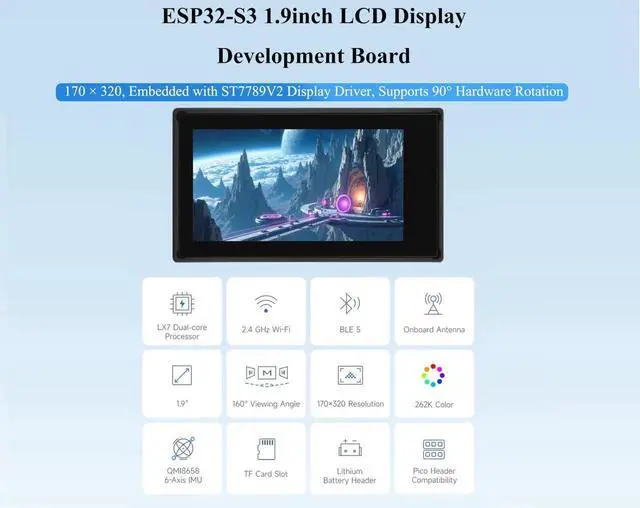

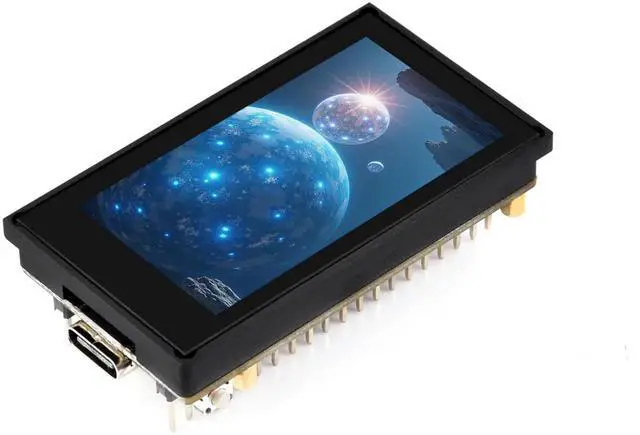

- Onboard 1.9inch Touch LCD display which can smoothly run GUI programs such as LVGL. 170 x 320 resolution, 262K color, delivering clear and vivid color image display.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use.
- Onboard 3.7V MX1.25 Li batery recharge/discharge header. Onboard TF card slot for external TF card storage of pictures or files.

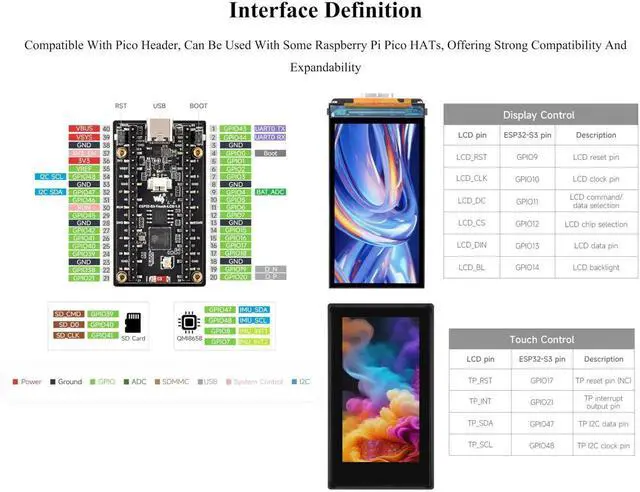

- Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability.
- Comes with Online Tutorial Usage
+
+
