AJMRTC MCP23017 IO Expansion Board, I2C Interface 16 Channel Digital IO Expander Module, Expand 16 I/O Pins for Raspberry Pi, STM32 Microcontroller, GPIO Extension Carrier Board
- - Brand AJMRTC MCP23017 I2C 16-bit IO expansion board, Production PN: MCP23017-I2C-IO16
- - Uses I2C bus communication to add up to 16 configurable digital input/output pins
- - Supports multiple address selection, allowing stacking of several MCP23017 boards on one I2C bus
- - Simple wiring and library support for Raspberry Pi and STM32 embedded development
- - Great for button, LED, relay and sensor expansion when main controller GPIO pins are limited
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

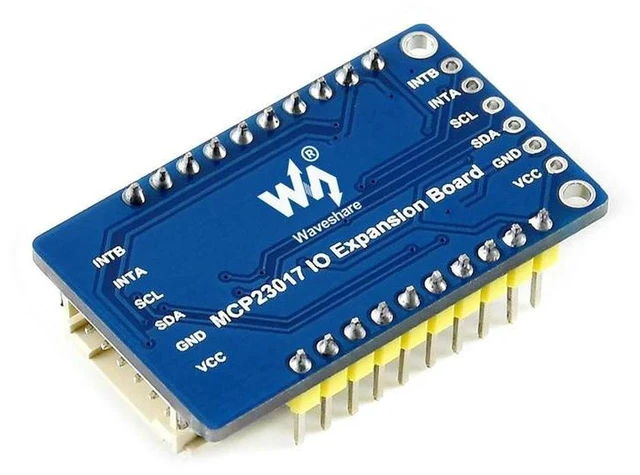

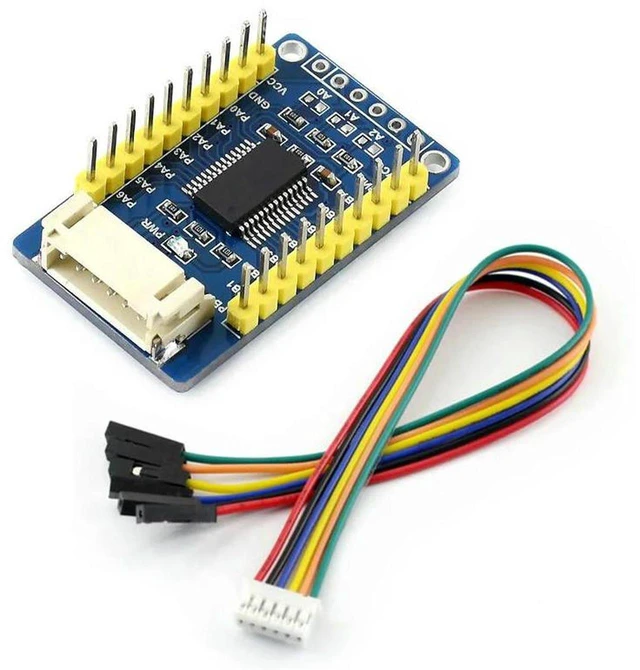

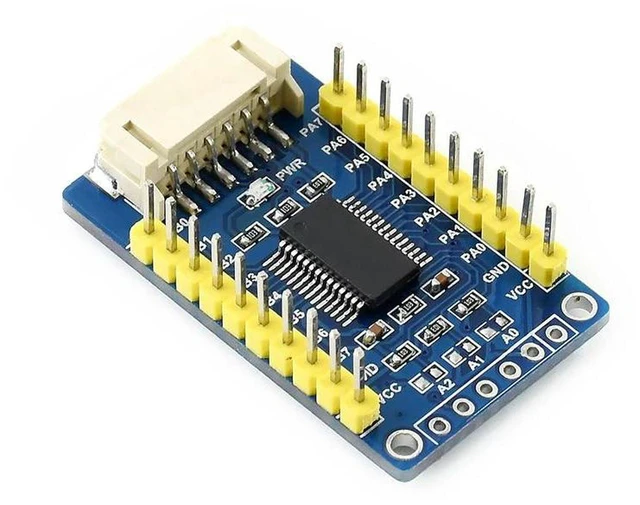

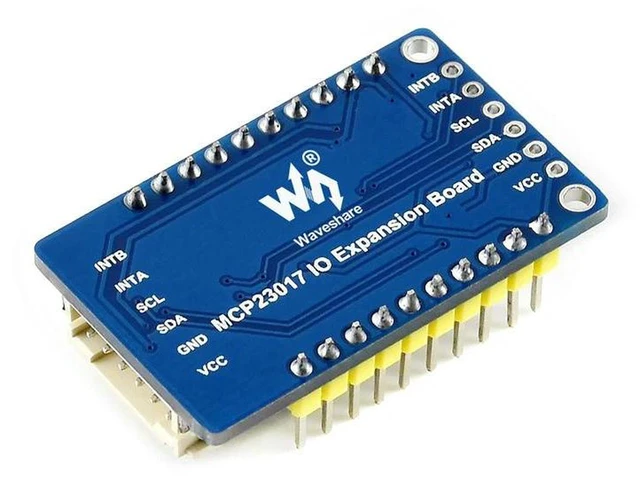

AJMRTC MCP23017 IO Expansion Board is a GPIO expander module built around the MCP23017 chip, communicating via the standard I2C interface. The production part number is MCP23017-I2C-IO16. It can expand 16 independent digital I/O pins which can be individually configured as input or output.
Multiple boards can be stacked together by adjusting the I2C address jumpers, so you can expand hundreds of IO pins on a single I2C bus. The module works seamlessly with Raspberry Pi and STM32, with plenty of open-source libraries and sample codes available to speed up development.
It is widely used for relay control panels, LED matrix, multi-button input, industrial signal acquisition and embedded IoT projects. The main controller board is not included. Please confirm your hardware I2C pin definition before wiring.
Specifications- Brand: AJMRTC
- Product Type: MCP23017 I2C 16 IO Expansion Board
- Production Part Number: MCP23017-I2C-IO16
- Chip: MCP23017
- Communication: I2C interface
- Total IO: 16 configurable digital I/O pins
- Address: Adjustable I2C address via jumpers
- Compatible Host: Raspberry Pi, STM32
- Application: Relay control, LED, button input, embedded IoT, GPIO expansion
- Note: Main controller not included
