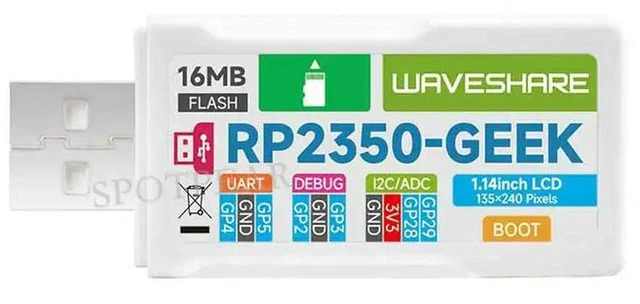

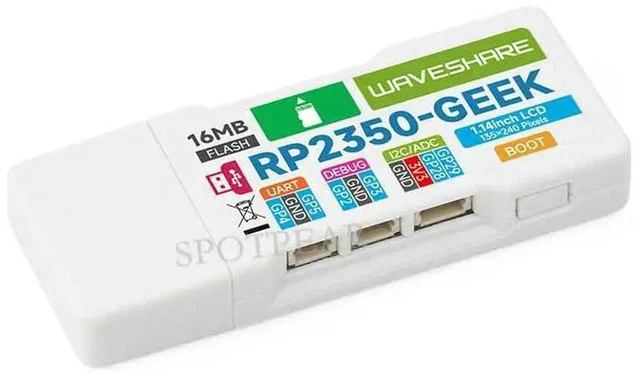

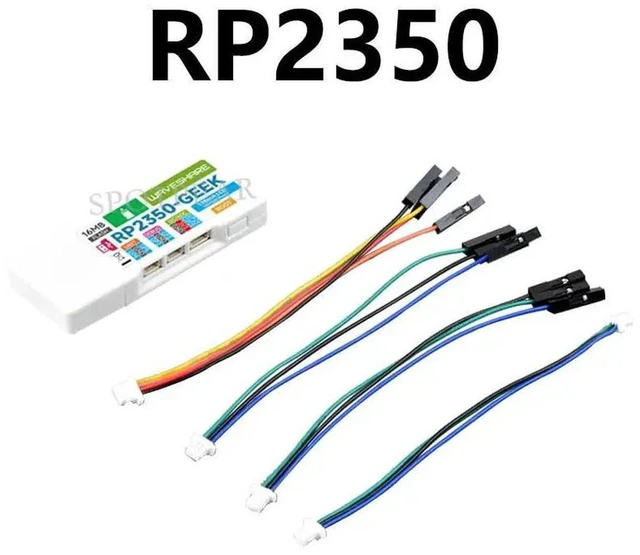

AJMRTC Waveshare RP2350-GEEK (RP2350-Pico2) Development Board, 1.14 Inch IPS LCD Display Module 240×135 65K Colors, SWD / UART / I2C Interfaces, CMSIS-DAP Debugger Compatible with OpenOCD for Embedded
- - Brand AJMRTC Waveshare RP2350-GEEK RP2350 Pico2 dev board, onboard 1.14" IPS LCD, 240×135 resolution, 65K rich colors, Production PN: WAVESHARE-RP2350-GEEK-1.14INCH-LCD
- - Powered by RP2350 dual-core dual-architecture MCU: Dual Cortex-M33 + Hazard3 RISC-V cores, up to 150MHz, 520KB SRAM +16MB Flash
- - Integrated 3PIN SWD debug port, 3PIN UART serial port and 4PIN I2C port, supports CMSIS-DAP, works with OpenOCD and CS-DAP debugging tools
- - Built-in TF card slot and USB-A interface, open-source upgradable firmware for flexible embedded project development
- - Compact USB stick form factor with optional protective case, ideal for MCU debugging, embedded data display, electronics test bench
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC Waveshare RP2350-GEEK multifunctional development board adopts Raspberry Pi RP2350 microcontroller. The production part number is WAVESHARE-RP2350-GEEK-1.14INCH-LCD. It is equipped with a 1.14-inch IPS color LCD screen with 240×135 resolution and 65K color depth, which can display real-time debugging information, text and graphics.
This board integrates SWD, UART and I2C interfaces. It can act as a CMSIS-DAP debugger, compatible with OpenOCD and CS-DAP to debug other ARM microcontrollers. The RP2350 chip features dual ARM Cortex-M33 and dual Hazard3 RISC-V cores, supporting flexible core switching for high-performance embedded applications. The onboard TF card slot expands storage for logging and file storage.
Perfect for embedded debugging, electronic prototype testing, portable data display and MCU learning projects. Note: Target boards for debugging are sold separately. Check firmware documentation before switching debug functions.
Specifications- Brand: AJMRTC
- Product Type: Waveshare RP2350-GEEK RP2350 Pico2 Development Board with 1.14 Inch IPS LCD
- Production Part Number: WAVESHARE-RP2350-GEEK-1.14INCH-LCD
- MCU: RP2350, dual Cortex-M33 + dual Hazard3 RISC-V, up to 150MHz
- Memory: 520KB SRAM, 16MB onboard Flash
- Screen: 1.14 inch IPS, 240×135, 65K colors
- Interfaces: SWD, UART, I2C, USB-A, TF card slot
- Debug Support: CMSIS-DAP, OpenOCD, CS-DAP
- Application: Embedded debugging, prototype testing, data display, MCU learning
- Note: Target hardware to be debugged sold separately; firmware upgrade required for different debug functions
