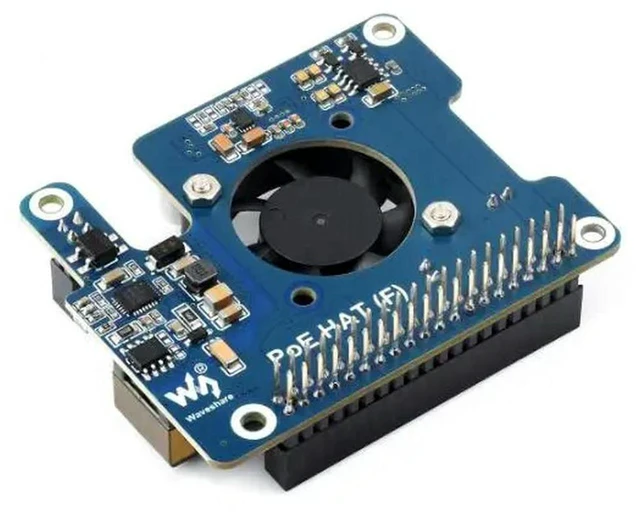

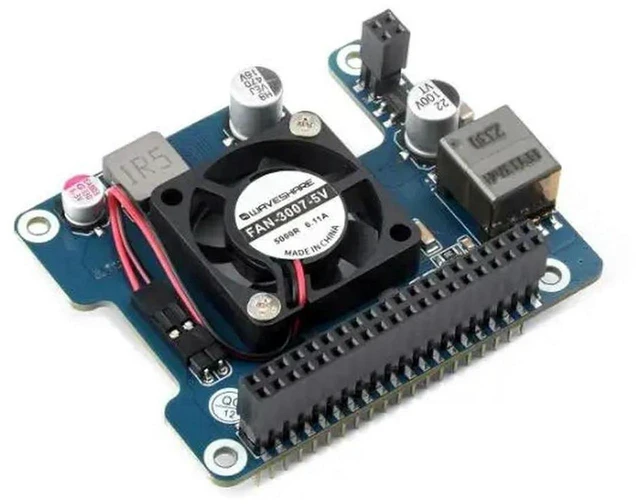

AJMRTC PoE HAT (F) for Raspberry Pi 5, High Power Power Over Ethernet HAT with Onboard Cooling Fan & Metal Heatsink, IEEE 802.3af/at PoE+ Network Standard, 40PIN GPIO Stackable Expansion Board for Ras
- - Compliant with IEEE 802.3af/at PoE+ standard, delivers power and network signal through one single Ethernet cable
- - Built-in active cooling fan plus metal heatsink, efficiently dissipates heat to prevent thermal throttling under heavy load
- - High power output, supports 5V up to 4.5A and 12V up to 2A, total max 25W to power Raspberry Pi 5 and extra peripherals
- - Standard 40PIN stackable GPIO header, compatible with Raspberry Pi 5, allows stacking other HAT modules for expanded projects
- - Fully isolated SMPS power supply with multiple safety protections, stable voltage conversion and reliable long-time operation
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC PoE HAT (F) is a dedicated Power over Ethernet expansion board designed for Raspberry Pi 5. It follows IEEE 802.3af/at PoE+ specification, enabling you to transmit network data and supply power to your Raspberry Pi 5 via only one Ethernet cable, eliminating messy separate power adapters. Equipped with an onboard high-speed cooling fan and metal heatsink, it provides excellent heat dissipation to keep the Pi 5 running stably under continuous high-load computing tasks. It supplies 5V up to 4.5A and 12V up to 2A output, total power capped at 25W, which can power the main board and additional external devices simultaneously. Adopting fully isolated switched-mode power supply design, it offers reliable voltage conversion and built-in protection circuits. The standard 40PIN stackable GPIO header supports stacking other Raspberry Pi HATs, perfect for home servers, network monitoring, edge computing and IoT embedded projects. Raspberry Pi 5 is not included.
- Brand: AJMRTC
- Product Name: PoE HAT (F)
- Compatible Device: Raspberry Pi 5
- PoE Standard: IEEE 802.3af/at (PoE / PoE+)
- PoE Input Voltage: 37V ~ 57V DC
- Output: 5V 4.5A Max, 12V 2A Max, Total Max 25W
- Cooling: Onboard Active Fan + Metal Heatsink
- Interface: 40PIN Stackable GPIO Header
- Power Supply Type: Fully Isolated SMPS
- Dimensions: 56.5 × 70.0 mm
