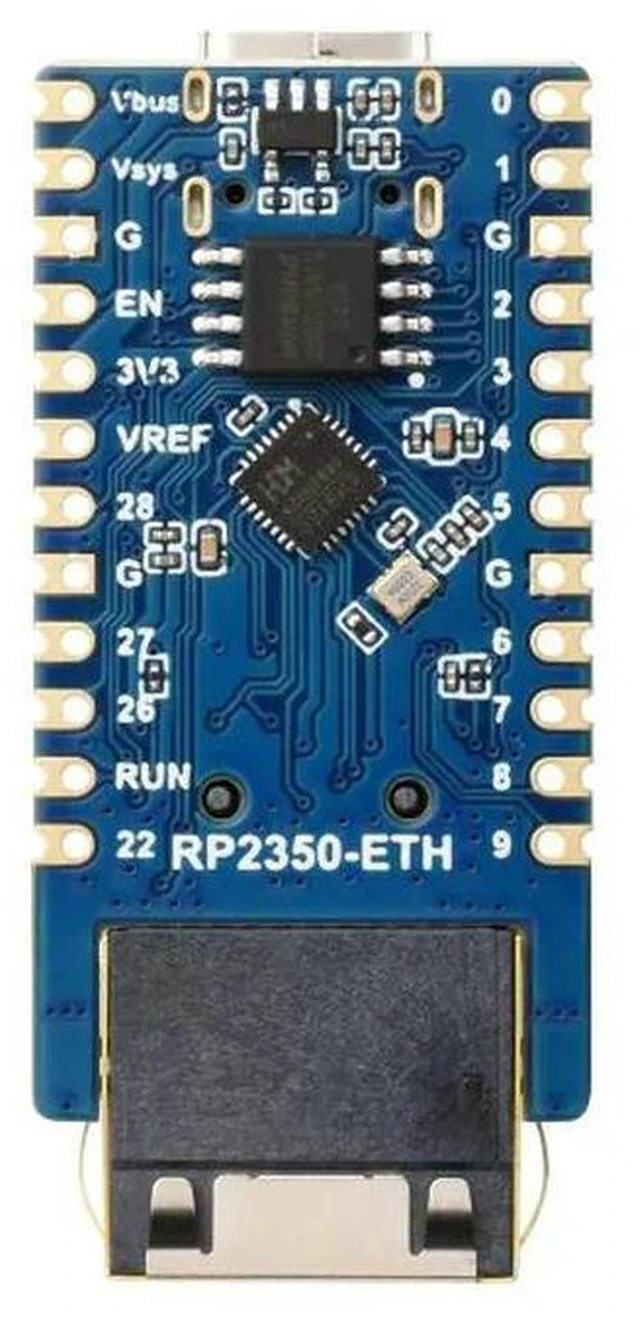

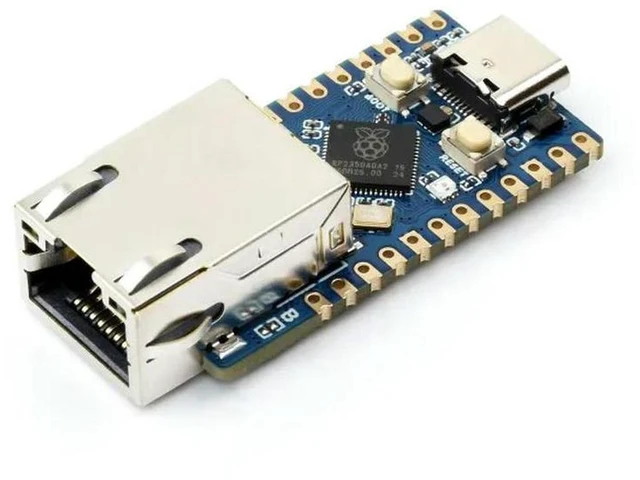

AJMRTC RP2350-ETH Mini Development Board, RP2350 Ethernet Port Module, Raspberry Pi RP2350 Microcontroller Board, Dual-Core Dual-Architecture, RJ45 Ethernet, Type-C, for IoT Network Projects, Embedded

AJMRTC RP2350-ETH Mini Development Board is a compact embedded controller built around Raspberry Pi RP2350 microcontroller. It adopts dual-core dual-architecture design combining dual Arm Cortex-M33 and dual Hazard3 RISC-V cores, running at up to 150MHz, with 520KB SRAM and 4MB onboard Flash memory to handle complex embedded tasks.

This board integrates CH9120 Ethernet chip with full TCP/IP protocol stack and standard RJ45 port, delivering stable wired network connection without extra network chips. It breaks out 14 multi-functional GPIO pins, supports SPI, I2C, UART, ADC and PWM peripherals. Castellated edge pads allow direct soldering onto custom PCBs for product integration.

Programming is convenient via USB Type-C with drag-and-drop mass storage flashing. It also features on-chip temperature sensor and 12 programmable PIO state machines. Perfect for IoT network terminals, lightweight web servers, data logging devices and industrial embedded projects. Open-source SDK and demo codes are available to accelerate your development.

1. Main Chip: Raspberry Pi RP2350
2. Processor: Dual Cortex-M33 + Dual Hazard3 RISC-V, up to 150MHz
3. Onboard Memory: 520KB SRAM, 4MB Flash
4. Ethernet Chip: CH9120 with TCP/IP stack
5. Network Port: RJ45 Ethernet
6. USB Interface: USB TypeC
7. GPIO: 14 multi-function pins
8. Peripherals: 2×I2C, 2×UART, 1×SPI, 3×12-bit ADC, 13×PWM
9. Special Feature: Castellated half-holes, on-chip temperature sensor, 12 PIO state machines
10. Power Supply: 5V via TypeC
11. Application: IoT network device, embedded network development
