AJMRTC CM5-NANO-A, Nano Base Board (A) for Raspberry Pi Compute Module 5, Same Size as CM5 Carrier Board, 40PIN GPIO, USB3.2 Gen1, Dual MIPI, TF Card Slot for Embedded IoT Development

AJMRTC CM5-NANO-A Nano Base Board (A) is a compact carrier board designed exclusively for Raspberry Pi Compute Module 5. It shares the exact same physical size as CM5, enabling highly integrated designs for space-restricted embedded systems.

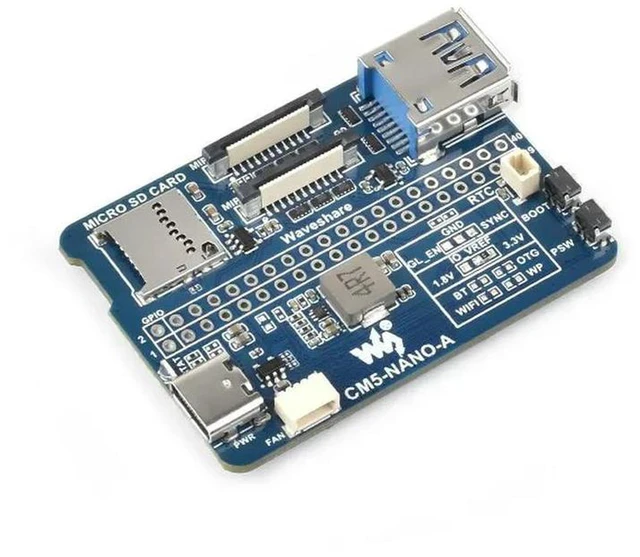

This CM5 base board exposes rich peripheral interfaces: USB3.2 Gen1 Type-A port, dual 4-lane MIPI connectors for CSI cameras or DSI displays, TF card socket for CM5 Lite modules, and standard Raspberry Pi 40PIN GPIO header to connect HAT accessories. It also includes power switch, BOOT button for eMMC flashing, RTC battery port and PWM fan header.

It works with all CM5 RAM and eMMC variants. Perfect for prototype evaluation, machine vision systems, small IoT gateways and custom embedded products. Open-source documents and demo resources are provided to speed up your development. Note: Raspberry Pi CM5 module is NOT included.

1. Model: CM5-NANO-A
2. Product Type: Nano Carrier Base Board
3. Compatible Module: Raspberry Pi Compute Module 5 (Lite / eMMC versions)
4. Dimension: 55 × 40 mm, same size as CM5
5. Interfaces: 40PIN GPIO, USB3.2 Gen1 TypeA, Dual 4-lane MIPI, TF Card Slot
6. Onboard Headers: RTC battery header, PWM fan header
7. Buttons: Power Button, BOOT Button
8. Power Input: 5V
9. Application: CM5 Prototype, Machine Vision, Embedded IoT, Compact Industrial Control
10. Note: Compute Module 5 not included
