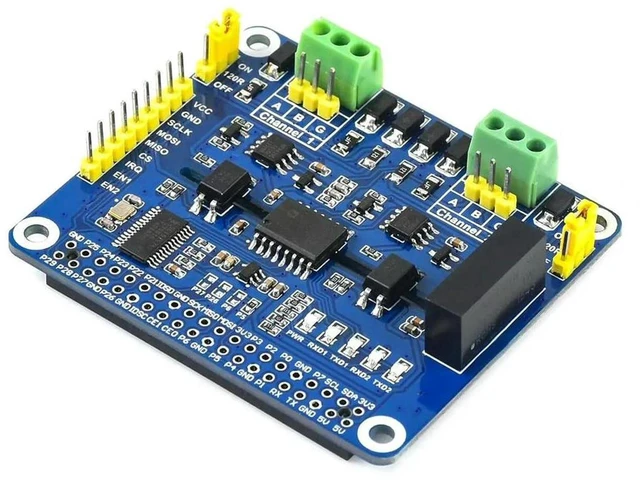

AJMRTC 2-Channel Isolated RS485 Expansion HAT for Raspberry Pi, SC16IS752+SP3485 Solution, SPI Controlled Dual RS485 Board, Magnetic & Power Isolation, Industrial Serial Communication Module for Data
- - 2-channel isolated RS485 HAT for Raspberry Pi, built with SC16IS752+SP3485 chipset, SPI to dual RS485 conversion
- - Integrated magnetic and power isolation, protects Raspberry Pi from surge, ground loop and common-mode interference
- - Max baud rate up to 921600bps, supports auto/manual transmit-receive switching via DIP switch
- - Onboard TVS, resettable fuse and protection diodes for anti-surge, over-current and ESD protection
- - Stackable 40PIN GPIO HAT design, ideal for industrial automation, remote sensor monitoring and IoT data logging
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

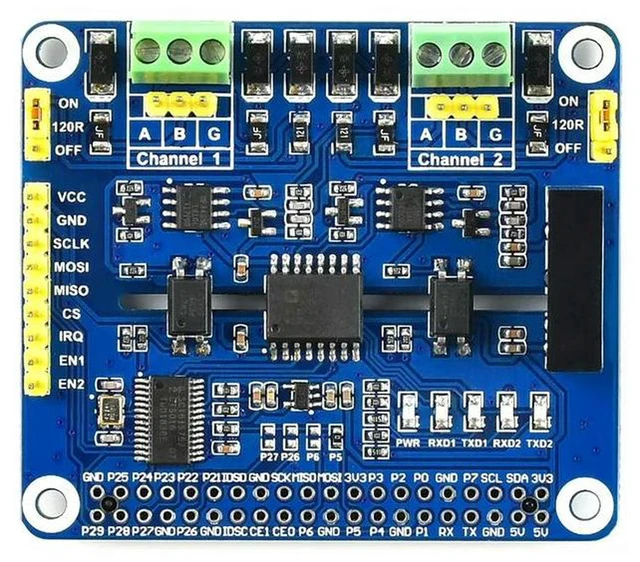

AJMRTC 2-Channel Isolated RS485 Expansion HAT adopts SC16IS752 UART expansion chip and SP3485 RS485 transceiver, converting SPI bus into two independent RS485 channels for Raspberry Pi.
It comes with magnetic isolation and power isolation circuits to separate the Raspberry Pi control side and field bus side, effectively eliminating ground loop noise and protecting your mainboard from high-voltage surges. Onboard TVS, resettable fuse and protection diodes offer extra anti-static and lightning protection.

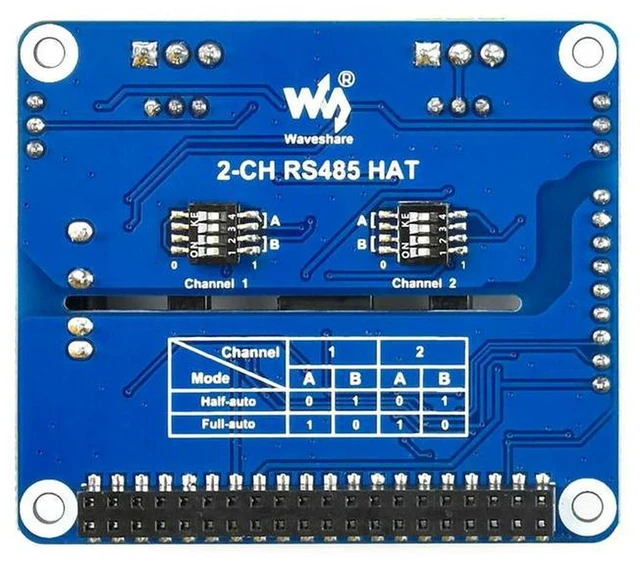

The board supports automatic or manual transmit-receive switching configured by DIP switch, with communication speed up to 921600bps. Stackable HAT form fits Raspberry Pi 40PIN GPIO header directly. It includes power and communication indicator LEDs, and provides Python & C example codes for fast development. Raspberry Pi board is not included.
- Brand: AJMRTC
- Model: 2-Channel Isolated RS485 HAT
- Chip Solution: SC16IS752 + SP3485
- Control Interface: SPI
- RS485 Channel: 2 Channels
- Max Baud Rate: 921600 bps
- Isolation: Magnetic Isolation + Power Isolation
- Protection: TVS, Resettable Fuse, Protection Diodes
- Compatible: Raspberry Pi Series with 40PIN GPIO
- Application: Industrial Serial Communication, Data Acquisition, IoT Monitoring
- Note: Raspberry Pi sold separately
