AJMRTC CH582M Core Development Board, BLE Bluetooth Low Energy Microcontroller Module, Dual USB 2.0 RISC-V MCU for IoT Wireless Embedded Project Development
- - Built-in CH582M 32-bit RISC-V BLE5.3 low-power MCU with dual USB 2.0 Host/Device controller
- - 512KB Flash & 32KB SRAM, 80MHz main frequency, rich peripherals including ADC, UART, PWM, RTC
- - Onboard Bluetooth Low Energy 2.4G RF transceiver, 2Mbps transmission rate for wireless IoT design
- - Compact core board with reset & boot keys, onboard antenna, easy firmware download and debugging
- - Wide application for wireless sensor, Bluetooth gateway, USB device and embedded prototype testing
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

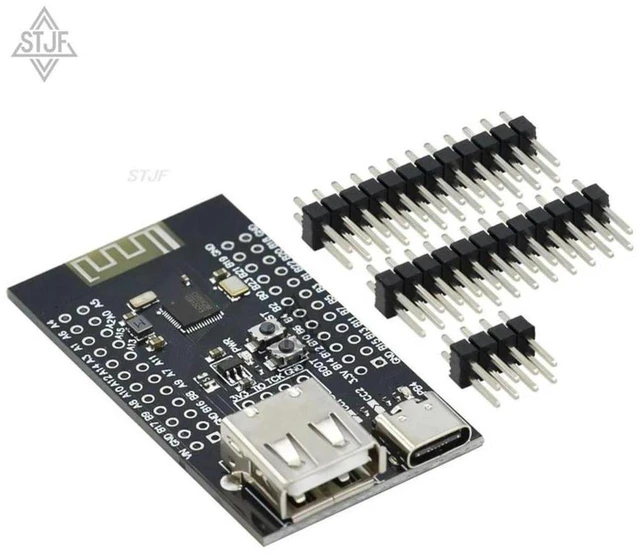

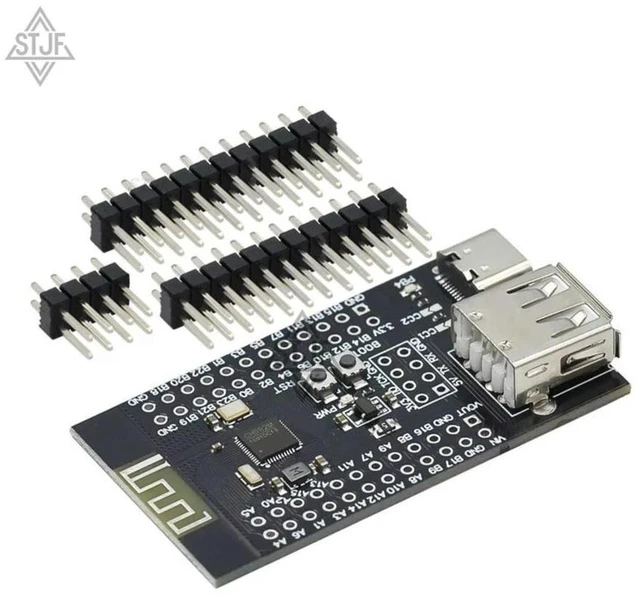

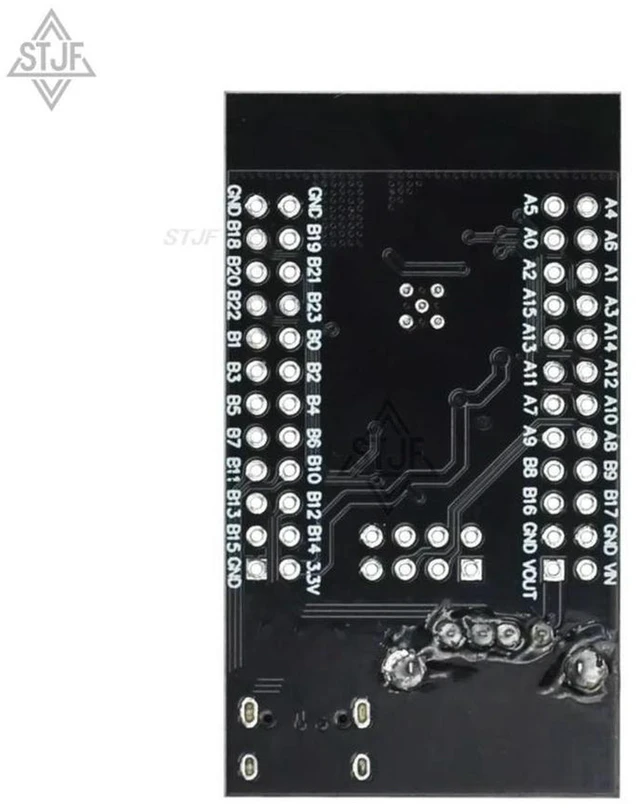

AJMRTC CH582M core development board is a compact embedded module based on WCH CH582M RISC-V microcontroller. This board integrates BLE 5.3 low energy Bluetooth and dual independent USB2.0 full-speed controllers, supporting both USB Host and Device functions. It carries 512KB Flash and 32KB SRAM with 80MHz CPU clock. Multiple peripherals such as 12-bit ADC, UART, SPI, I2C, PWM, RTC and touch key interfaces are available. The onboard antenna delivers stable 2.4G BLE wireless communication up to 2Mbps. Reset and boot buttons simplify programming and debugging. This core board is widely adopted for IoT wireless sensors, Bluetooth accessories, USB devices and embedded prototype development.
- Brand: AJMRTC
- Chip Model: CH582M
- Core: QingKe RISC-V4A 32-bit
- Main Frequency: 80MHz
- Flash: 512KB
- SRAM: 32KB
- Bluetooth: BLE5.3, 2.4GHz, up to 2Mbps
- USB: Dual USB2.0 (Host & Device)
- Peripherals: 12-bit ADC, UART, SPI, I2C, PWM, RTC, TouchKey
- Power Voltage: 2.3V~3.6V
- Application: IoT, Bluetooth Wireless Project, Embedded Prototype, USB Device Development
