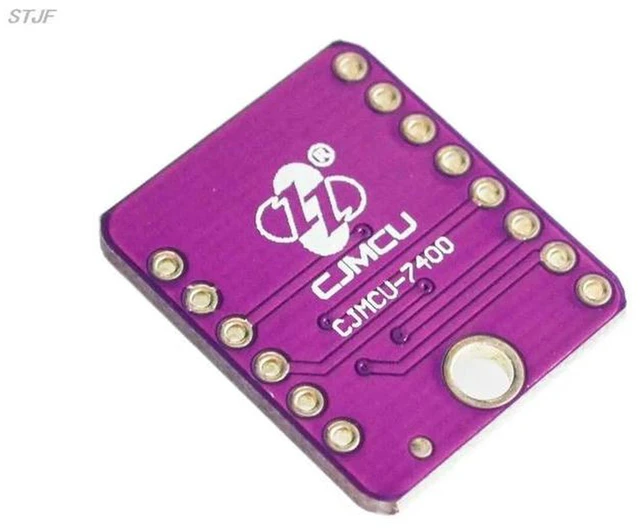

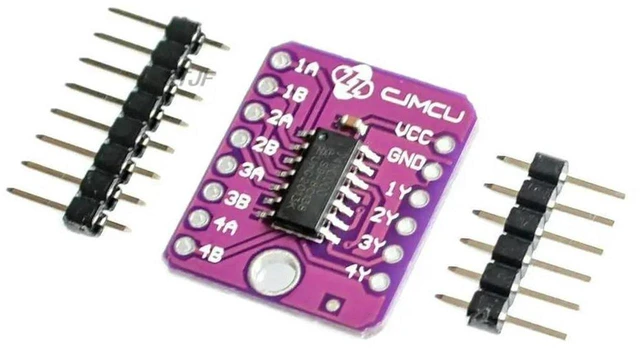

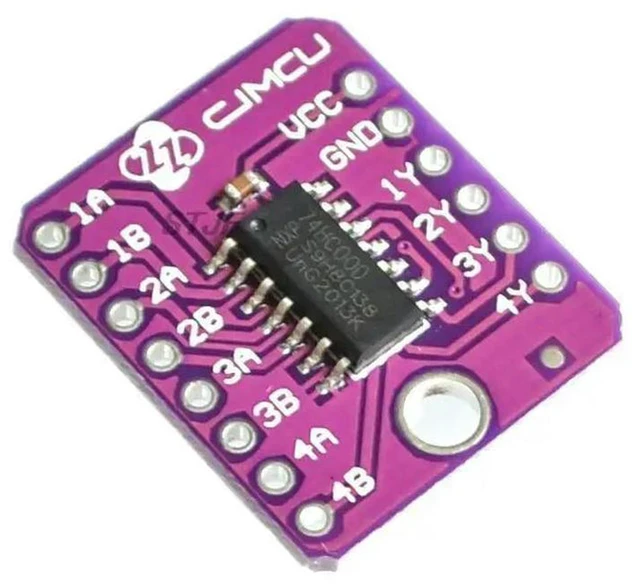

AJMRTC SN74HC00D 7400 Logic Gate Module, Quad 2-Input Positive NAND Gate Development Board, 4 Channels 2 Positive Input NAND Gate Breakout Board for Digital Logic Circuit Experiment & Electronic DIY
- - SN74HC00D 7400 breakout board built with quad 2-input positive NAND gate, contains four independent NAND gates on one module
- - Supports standard CMOS logic level, stable signal output for digital circuit design and logic verification
- - Pinout clearly led out, easy wiring and testing for digital logic experiments
- - Wide operating voltage range, good anti-interference performance for teaching and prototype development
- - Compact PCB design, ideal for digital electronics teaching, logic circuit DIY and embedded experiment
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC SN74HC00D 7400 NAND gate development board integrates the SN74HC00D chip which includes four independent 2-input positive NAND gates. All input and output pins are led out on the breakout board for convenient wiring and testing. This module adopts high-speed CMOS technology, featuring stable logic operation and strong anti-interference capability. It can be used to build various combinational logic circuits for learning digital electronics principles. It is widely used in school physics teaching, digital circuit verification, electronic competition and hobbyist logic DIY projects.
- Brand: AJMRTC
- Model: SN74HC00D (7400)
- Logic Type: Quad 2-Input Positive NAND Gate
- Quantity: 4 independent NAND gates
- Logic Family: High-speed CMOS HC series
- Board Type: Breakout development board
- Function: Digital logic circuit experiment
- Application: Digital electronics teaching, logic prototype, electronic DIY
