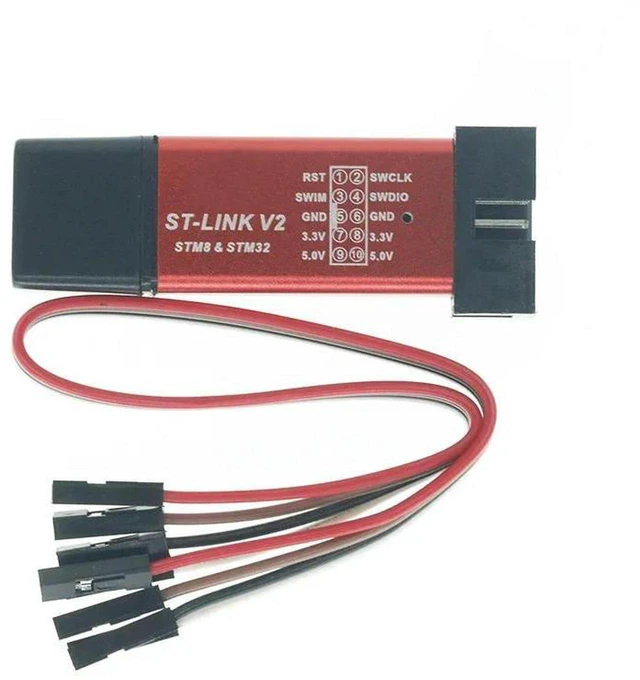

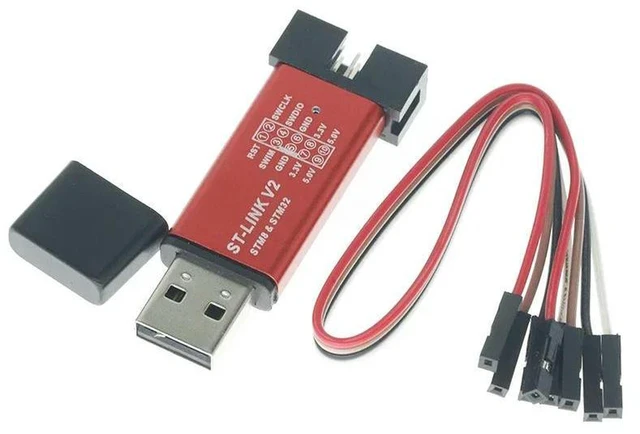

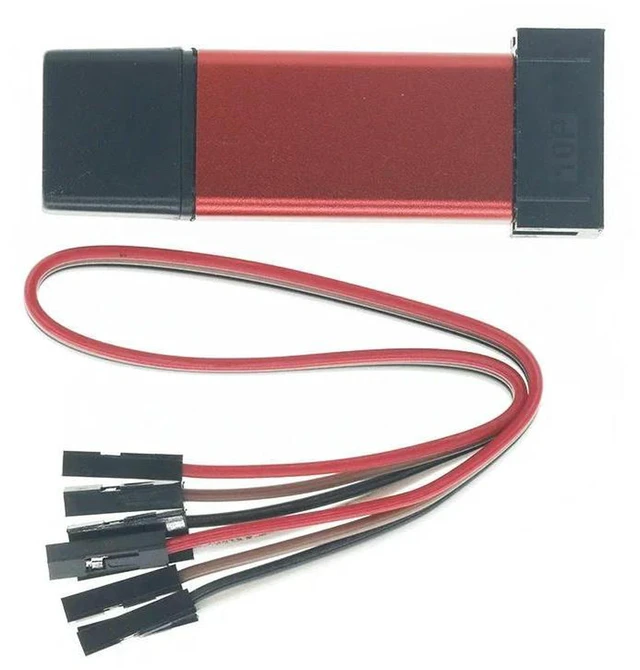

AJMRTC ST-Link V2 Mini Programmer Debugger, STM8 STM32 In-Circuit Simulator Downloader, USB 2.0 SWD SWIM Interface Firmware Upgradable Debug Tool for MCU Development
- - ST-Link V2 Mini debugger and programmer, supports STM8 (SWIM) and STM32 (SWD) microcontroller in-circuit download and debugging.
- - USB 2.0 full-speed connection to PC, compatible with STM32CubeIDE, Keil MDK, IAR, ST-LINK Utility and other mainstream IDE software.
- - Built-in 500mA self-recovery fuse, short-circuit protection to safeguard your PC and target MCU boards during development.
- - Supports 3.3V / 5V dual power output, works with target boards of different operating voltage requirements.
- - Firmware upgradable via DFU mode, compact mini size, ideal for embedded programming, student lab and electronic prototype projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC ST-Link V2 Mini is a cost-effective in-circuit debugger and programmer designed for STM8 and STM32 series MCUs. It adopts SWIM interface for STM8 chips and SWD serial wire debug interface for STM32 chips, enabling real-time debugging, breakpoint setting, variable monitoring and firmware flashing. Connect to your computer via USB 2.0 full-speed interface, compatible with widely used development environments including STM32CubeIDE, Keil and IAR. Equipped with a 500mA self-recovery fuse to prevent damage caused by accidental short circuits. It can output both 3.3V and 5V power to supply your target board. The device supports DFU firmware upgrade for future compatibility expansion. Compact lightweight design makes it convenient to carry. Great for embedded learning, electronic prototyping, industrial MCU debugging and laboratory development work.
- Brand: AJMRTC
- Model: ST-Link V2 Mini
- Supported MCU: STM8 (SWIM), STM32 (SWD)
- PC Interface: USB 2.0 Full Speed
- Output Voltage: 3.3V / 5V
- Protection: 500mA Self-Recovery Fuse
- Feature: DFU Firmware Upgradable, Status LED Indicator
- Supported Software: STM32CubeIDE, Keil MDK, IAR, ST-LINK Utility
- Application: Embedded MCU Debugging, Firmware Download, Electronic DIY
